© 2016 Blum, Inc. Subject to technical modifications without notice
14

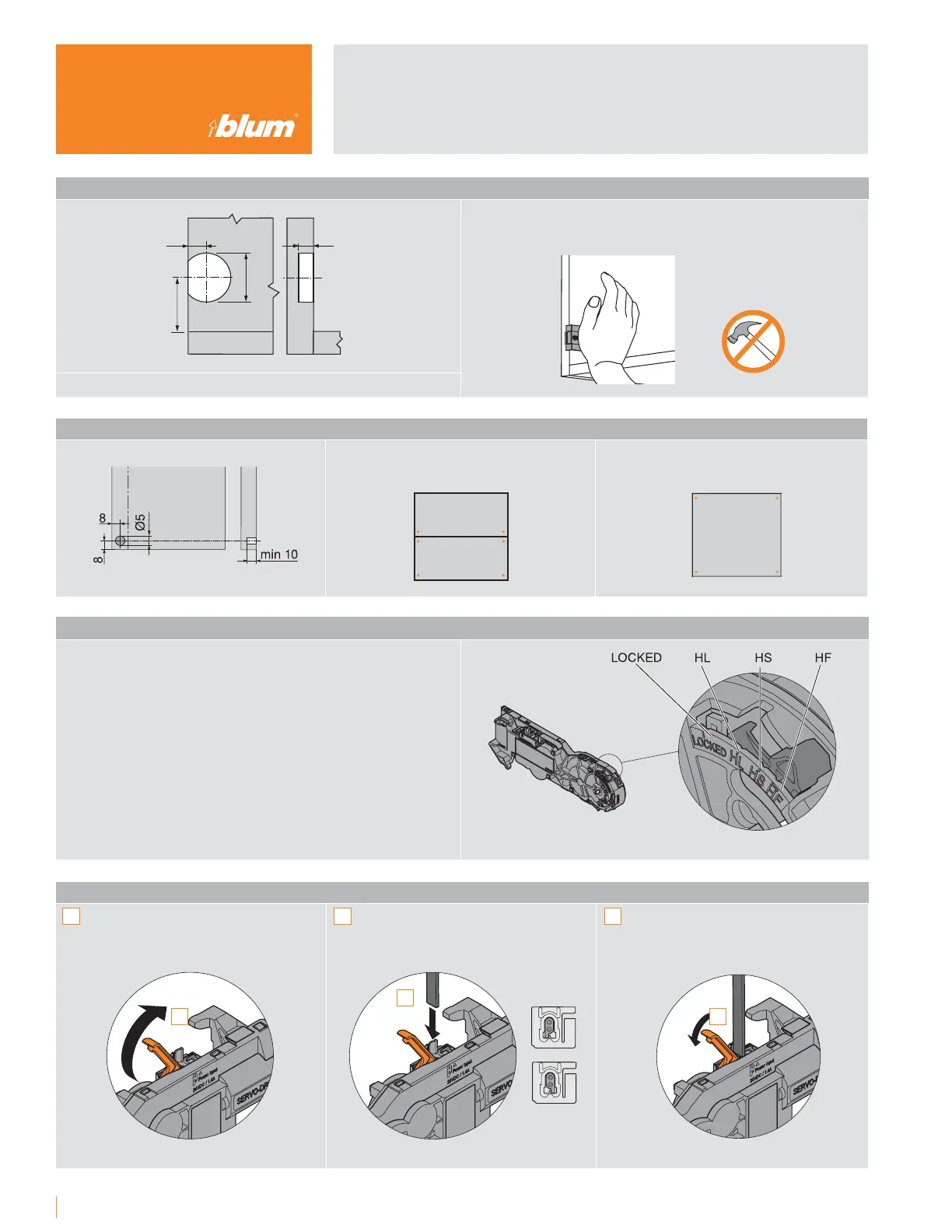

Drive unit preparation
Before SERVO-DRIVE for AVENTOS installation, the lift mechanism
tension adjustment should be made and door operation balanced.
The AVENTOS arm assembly must be in the completely open position
for drive unit installation. Attach the opening angle stop (if required)
only after drive unit installation and before the reference run.
Use the lift mechanism selection switch to select the appropriate
lift system application.
Installation of universal cable
Lift orange universal cable lock lever Insert universal cable (either end of the
cable can be used)
Once cable is inserted, press down on
universal cable lock lever
1 3
1 2 3
2
Installation of SERVO-DRIVE activation switch
NOTE: Use of boring template (M31.2000) recommended, see page 27
The activation switch should be installed by pressing into the cabinet
side with your hand. Do not use hammer to install.
Installation of Blum distance bumpers
For AVENTOS HF – install into drawer front.
Use of six distance bumpers is recommended.
For AVENTOS HS/HL ‒ install into drawer front.
Use of four distance bumpers is recommended.
11
12
30 min.
90 max.
Ø35
*
Assembly for
AVENTOS HF/HS/HL
SERVO-DRIVE for
AVENTOS
