Climate
100
Climate

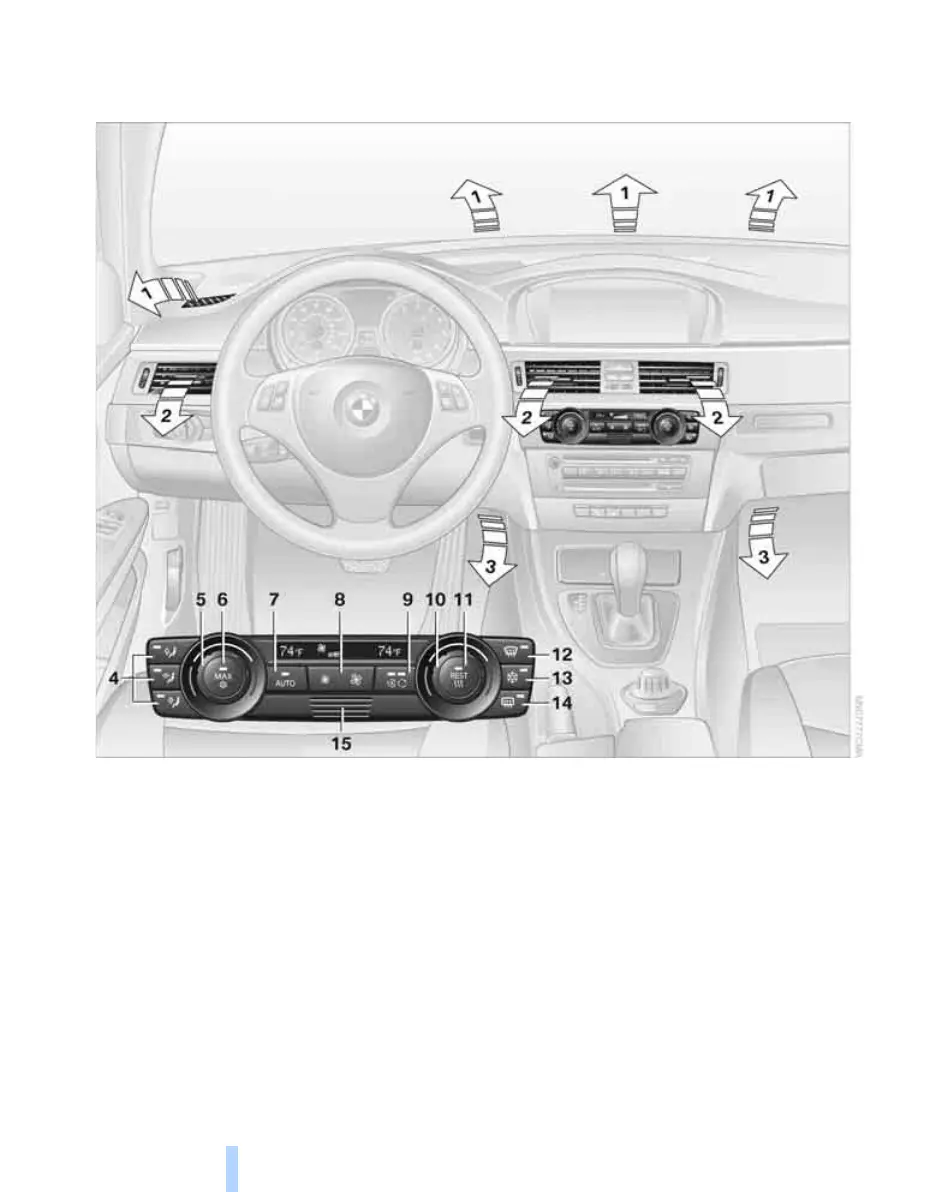

1 Airflow directed toward the windshield and
side windows
2 Air to the upper body area
Draft-free ventilation 103
3 Air to the footwell
4 Air distribution, manual
5 Temperature adjustment, left-hand side of
passenger compartment
6 Maximum cooling
7 AUTO program
8 Air flow rate, manual
9 AUC Automatic recirculated-air control/
Recirculated-air mode
10 Temperature adjustment, right-hand side
of passenger compartment
11 Residual heat
12 Defrosting windows and removing conden-
sation
13 Switching cooling function on/off manually
14 Rear window defroster
15 Air grill for interior temperature sensor –
please keep clear and unobstructed
The current setting for the air distribution is dis-
played on the Control Display, refer to
page 101.
Online Edition for Part no. 01 41 0 014 254 - © 08/07 BMW AG
