12© BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)

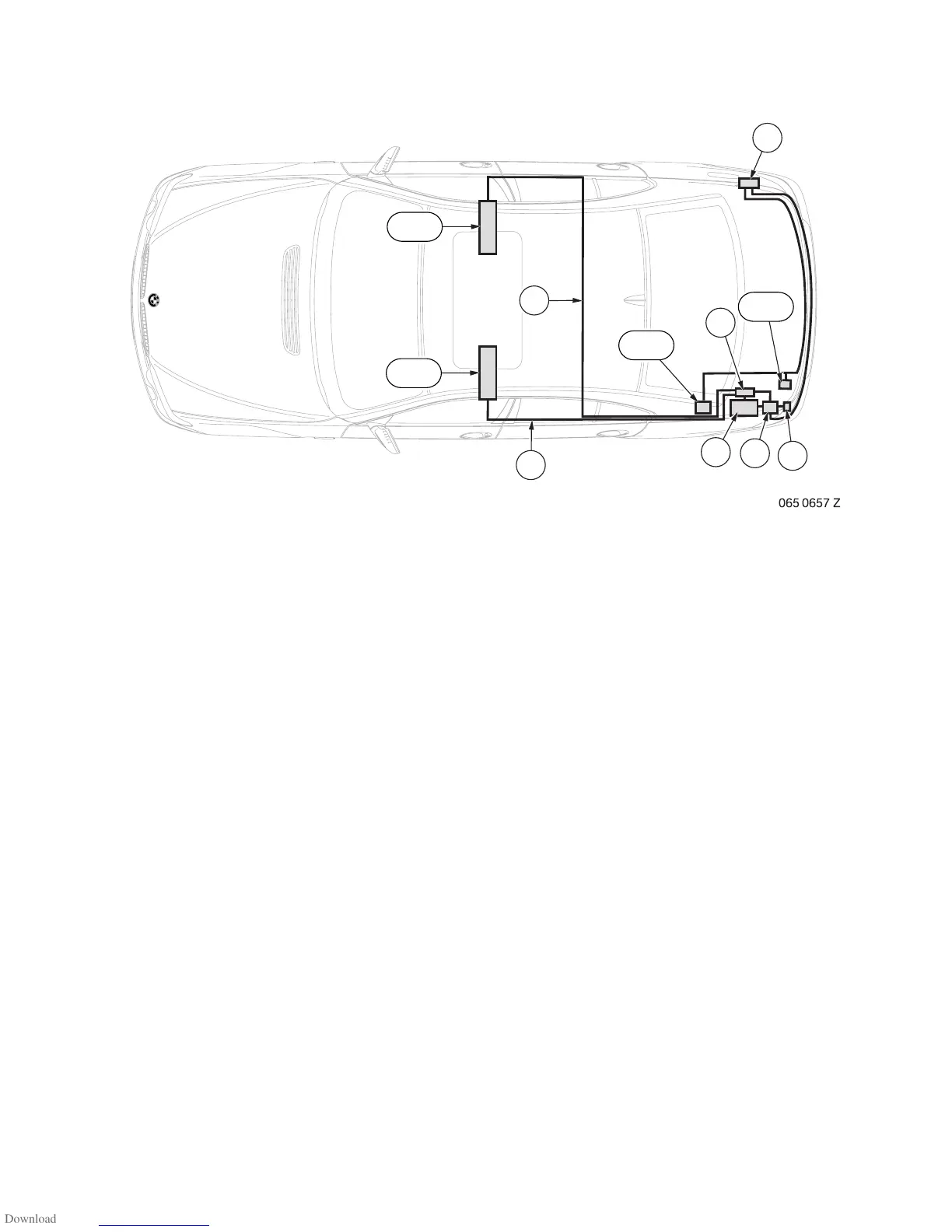

4. Installation and cabling diagram
Legend
BVoltage supply
D Connection wiring harness (left seat, length 5200 mm)
E Connection wiring harness (right seat, length 6700 mm)
L Multimedia changer
UAV switcher
AA Monitor
AD Radial fan
BD Axial fan
1 Power distributor A50
2Earth post X13094
E65
E65
1
U
B
L
2
D
E
BD
AD
AA
AA
065 0657 Z
