30© BMW AG, München 01 29 0 406 372 12.2005 (Z/Z)

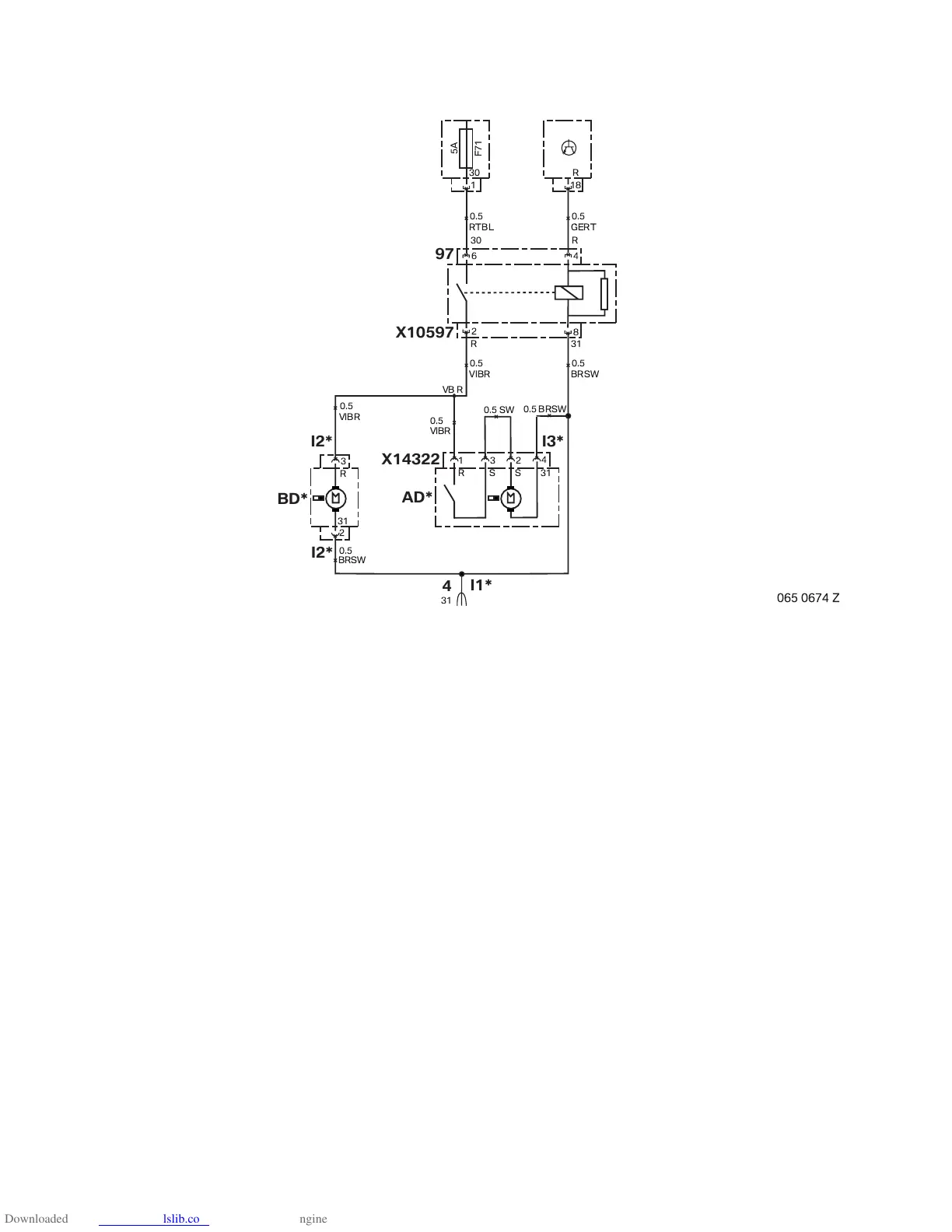

11. Fan wiring harness circuit diagram
Legend
Cable colours
All the designations marked with an asterisk (*) apply only to these installation instructions or this circuit diagram.
A50 Power distributor, rear right X1856 SW 32-pin plug (I6*)
A71 Power module X2915 Socket casing, 3-pin SW (I2*)
AD* Radial fan X3074 Terminal R connector
X4844 SW 5-pin plug (I5*)
BD* Axial fan X10597
Relay socket (I4*)
BF* Relay X13094 Earth post I1*
X14322 SW 4-pin plug (I3*)
I1* Cable eyelet A6
I2* Socket casing, 3-pin SW
I3* Socket casing, 4-pin SW
I4* Relay socket
I5* Socket contact
I6* Socket contact
BR Brown RT Red
BL Blue SW Black
GE Yellow VI Violet
A50
X4844
I5*
I6*
I4*
I4*
BD*
AD*
X14322
X2915
X3074
A71
X1856
X10597
X10597
BF*
X13094
I1*
I3*
I2*
I2*
