E88 Complete Vehicle
Windshield Cowl Locking System

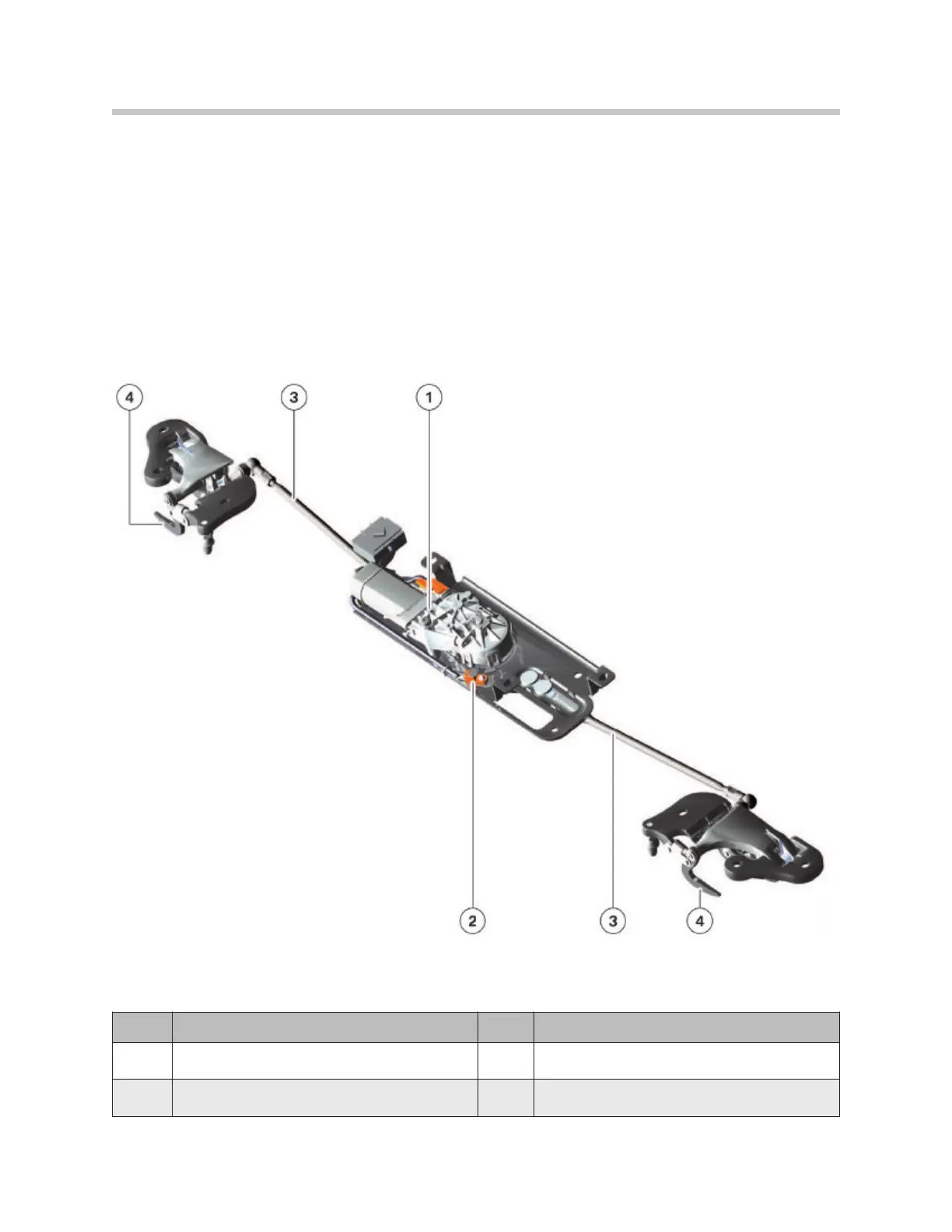

A geared electric motor locks and unlocks the convertible top to and from the windshield
cowl on the top of the windshield frame. The convertible top module (CVM) actuates the
drive unit.
The drive unit is located in the center of the cowl locking system. The right and left side
catches are moved via a disc and 2 thrust rods. The Hall sensor for the (windshield cowl
locked) monitors the locking system.
Inde
x
Explanation Inde
x
Explanation
1
Driv
e unit
for windshield cowl locking system
3
Thrus
t
rods
2
Hall sensor
,
for windshield cowl locked
4
Cat
ches
