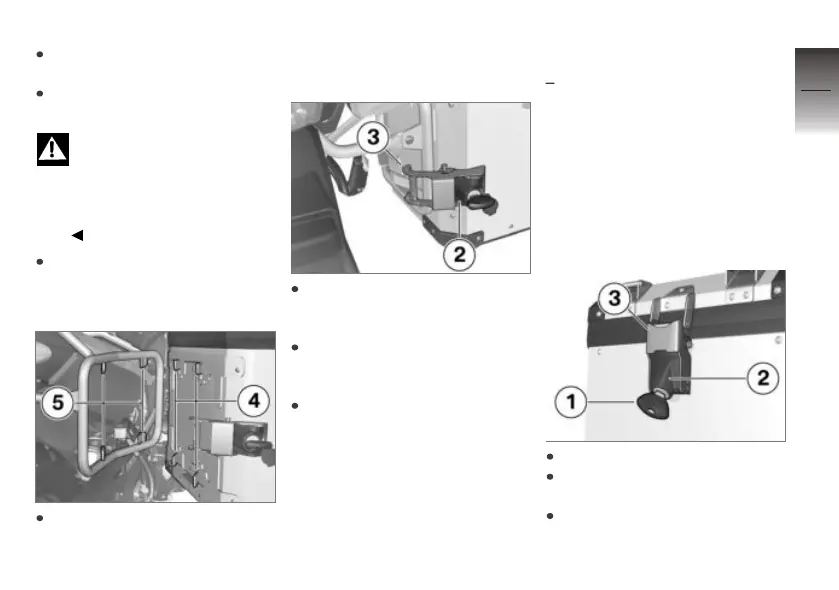

Press lock housing 2 to side to
release locking claw 3.
Pull locking claw 3 to side
while holding case in place.
On longer drives, left case
and case carrier may be-
come hot.
Allow case and case carrier to
cool down before removing
case.
Pull case back as far as possi-
ble and remove toward outside.
Mounting case
Position case on case carrier
and slide toward front so that
mounts on case carrier 5 and
on case 4 mesh.
Position locking claw 3 on case
carrier while holding case in
place.
Press lock housing 2 to side
while ensuring that claw grips
around bracket.
Turn key clockwise and re-
move.
Aluminum Topcase
with aluminum Topcase
OA
Topcase when driving
offroad
When driving offroad, the Top-
case should be removed or the
back padding available as an op-
tional accessory should be used.
Opening Topcase
Turn key 1 counterclockwise.
Press lock housing 2 upward
to release locking claw 3.
Pull locking claw 3 toward rear
and open lid.
7
79
z
Accessories
