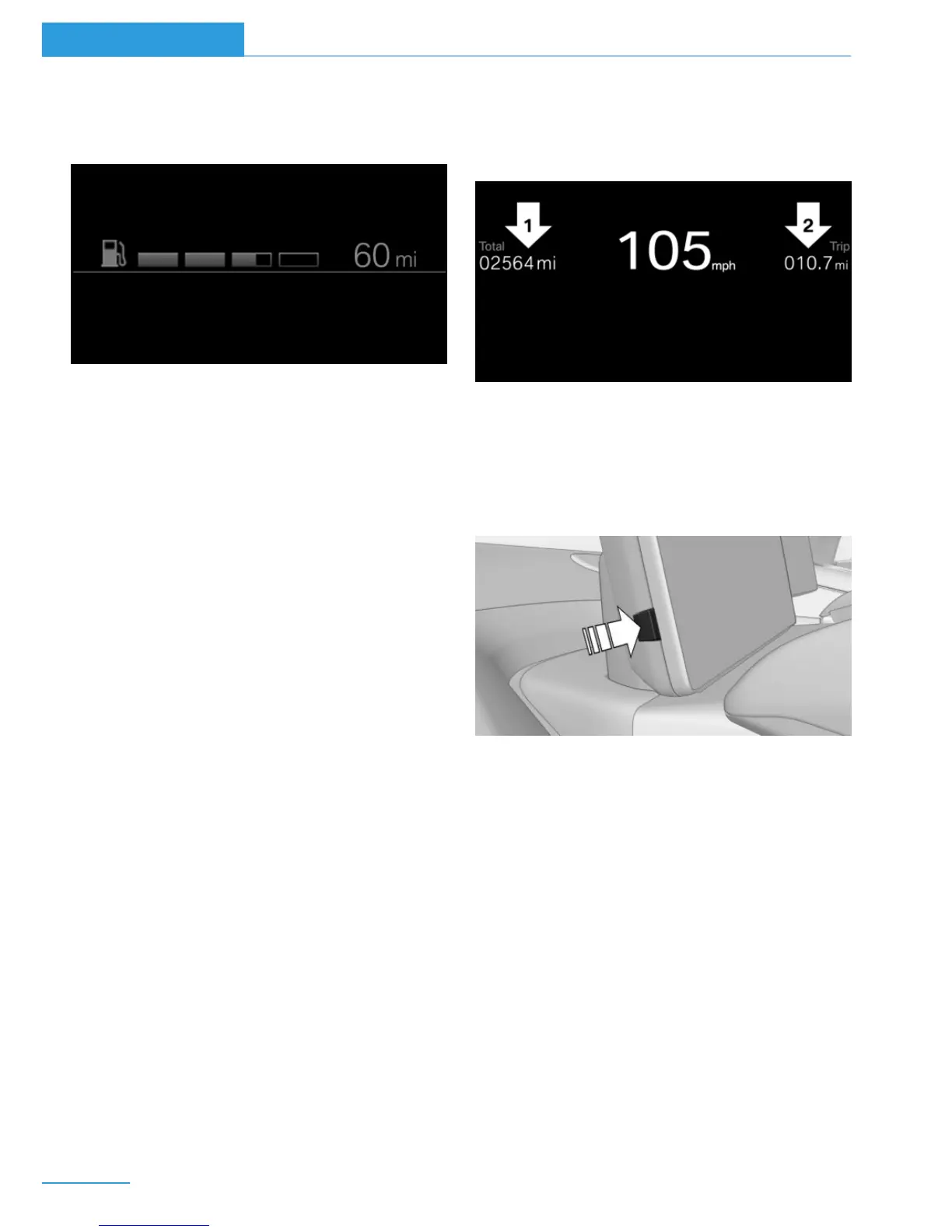

With Range Extender: fuel
gauge
The fill level bars indicate the available fuel
supply of the Range Extender when operating
readiness and drive readiness are switched on.
Additional range of the Range Extender on top
of pure electric range. If the Range Extender is
activated, the color of the fill level bar indicator
switches from gray to white.
Vehicle tilt position may cause the display to
vary.
Hints on refueling, refer to page 169.
Coolant temperature
If the coolant along with the engine becomes
too hot, a Check Control message is displayed.
Check the coolant level, refer to page 186.
Odometer and trip odometer
Display
▷ Odometer, arrow 1, Scope of the on-board
computer, refer to page 86.
▷ Trip odometer, arrow 2.
Show/reset kilometers: TRIP
Press the knob.
▷ With operating readiness turned off, the
time, the external temperature and the od‐
ometer are displayed.
▷ When operating readiness is switched on,
the trip odometer is reset.
External temperature
If the indicator drops to +37 ℉/+3 ℃ or lower, a
signal sounds.
A Check Control message is displayed.
There is an increased risk of ice on roads.
Seite 82
Controls Displays
82
Online Edition for Part no. 01 40 2 960 865 - II/15
