BMW K 1200 R User Manual

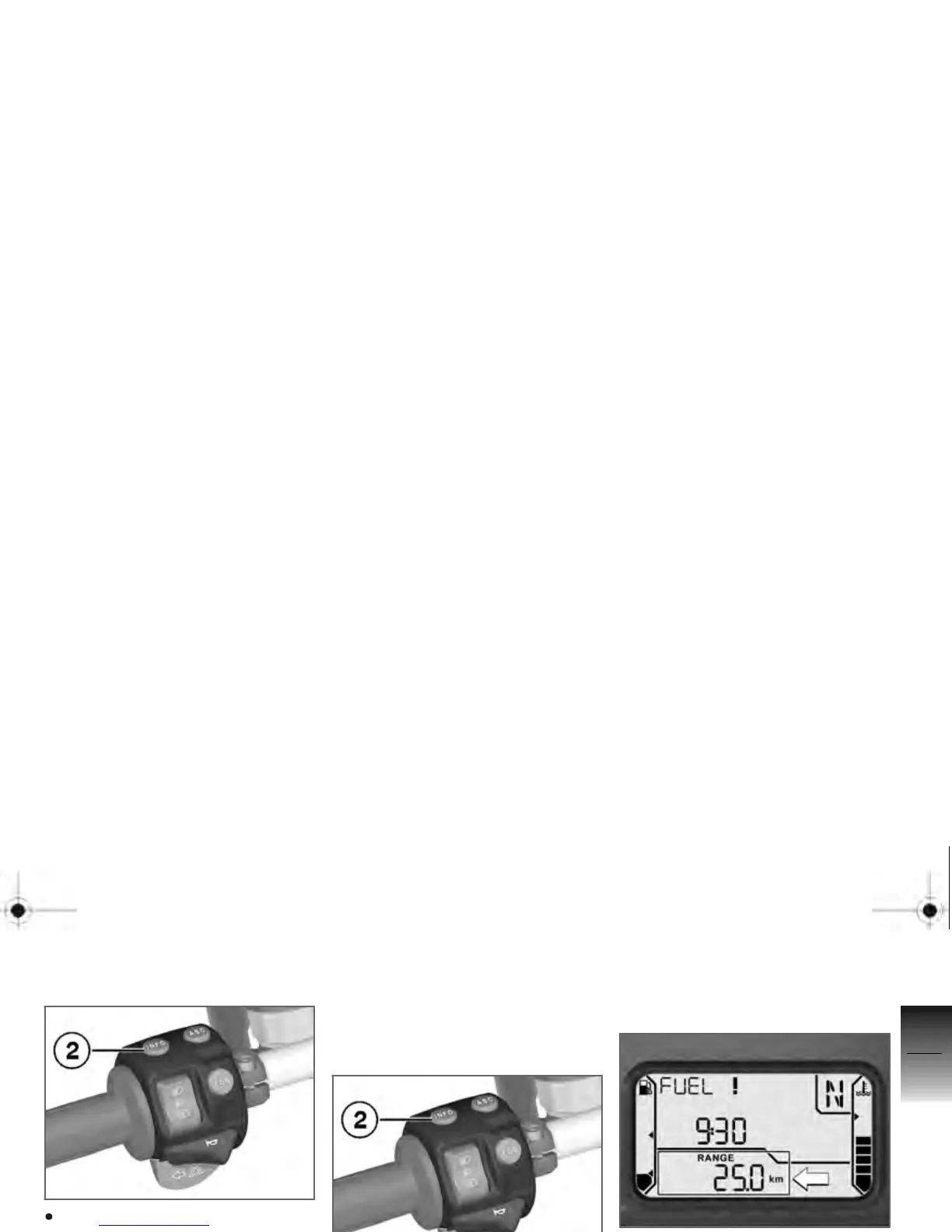

If you prefer, you can use but-
ton 2 for this purpose.
The tripmeter is reset to zero.
with OE On-board computer
or with OE Tyre-pressure
monitoring (RDC):
Press and hold down button 2.
In this case, the button
on the handlebar fitting
is for operating the on-board
computer or calling up the RDC
readings.
Residual range
Residual-range reading appears
accompanied by the word
RANGE and indicates how
far you can ride with the fuel
remaining in the tank. This
reading is not displayed until fuel
level has dropped to reserve.
This distance is calculated on the
basis of fuel level and average
consumption.
When you refuel, the increase in
fuel level is not registered unless
several litres are added to the
fuel already in the tank.
When refuelling after running on
reserve, make sure that you top
4
49
z Operation

BMW K 1200 R Specifications

General

Displacement	1157 cc
Power	163 hp (120 kW) at 10, 250 rpm
Transmission	6-speed
Compression Ratio	13.0:1
Fuel System	Electronic fuel injection
Final Drive	Shaft drive
Front Suspension	BMW Motorrad Duolever
Engine Type	Liquid-cooled, 4-stroke in-line four-cylinder
Torque	127 Nm at 8, 250 rpm
Fuel Capacity	19 liters
Seat Height	820 mm
Dry Weight	217 kg
Bore x Stroke	79 mm x 59 mm
Fuel Type	Unleaded
Clutch	Wet, multi-disc
Gearbox	6-speed, constant mesh
Frame	Aluminum bridge-type frame
Rear Suspension	BMW Motorrad Paralever
Front Wheel Travel	115 mm
Rear Wheel Travel	135 mm
Front Brake	Dual 320 mm discs, 4-piston calipers
Rear Brake	Single 265 mm disc, 2-piston caliper
ABS	Optional
Maximum Speed	Over 200 km/h
