119n
OverviewControlsMaintenanceRepairsDataIndex
Cargo area
Roll-up cover
Pull out the roll-up cover and hook it
into the brackets at the rear.
You can carry light objects such as
items of clothing on the roll-up cover.
Do not place heavy or hard
objects on the roll-up cover. If you
do so, they could already pose a dan-
ger to vehicle occupants during braking
or evasive maneuvers.
Do not allow the roll-up cover to snap
back, as otherwise it could be dam-
aged.<
530de348

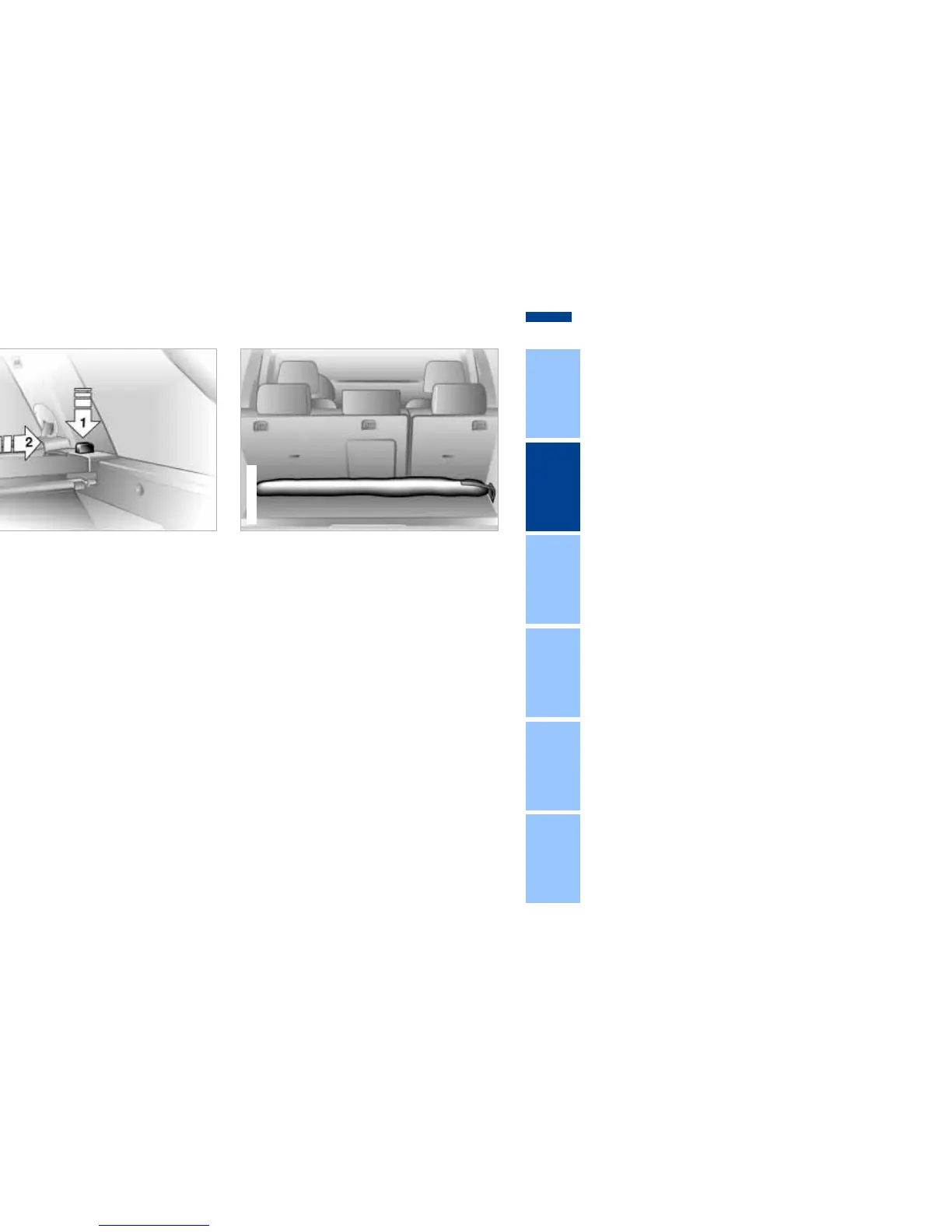

Removing roll-up cover
1. Unlock the case with the button,
refer to arrow 1, lift it out of the
bracket on the side and hold it in
place on the opposite side with the
other hand
2. Then push the case toward the side
window, refer to arrow 2. This pulls it
out of the second bracket and
enables it to be removed.
Installation
Lay the case in the two side brackets
and then press down until it engages.
530de349
Partition net*
1. Remove the bag with the partition
net from the retainer by releasing the
hooks from the lashing eyes on both
sides
