44n

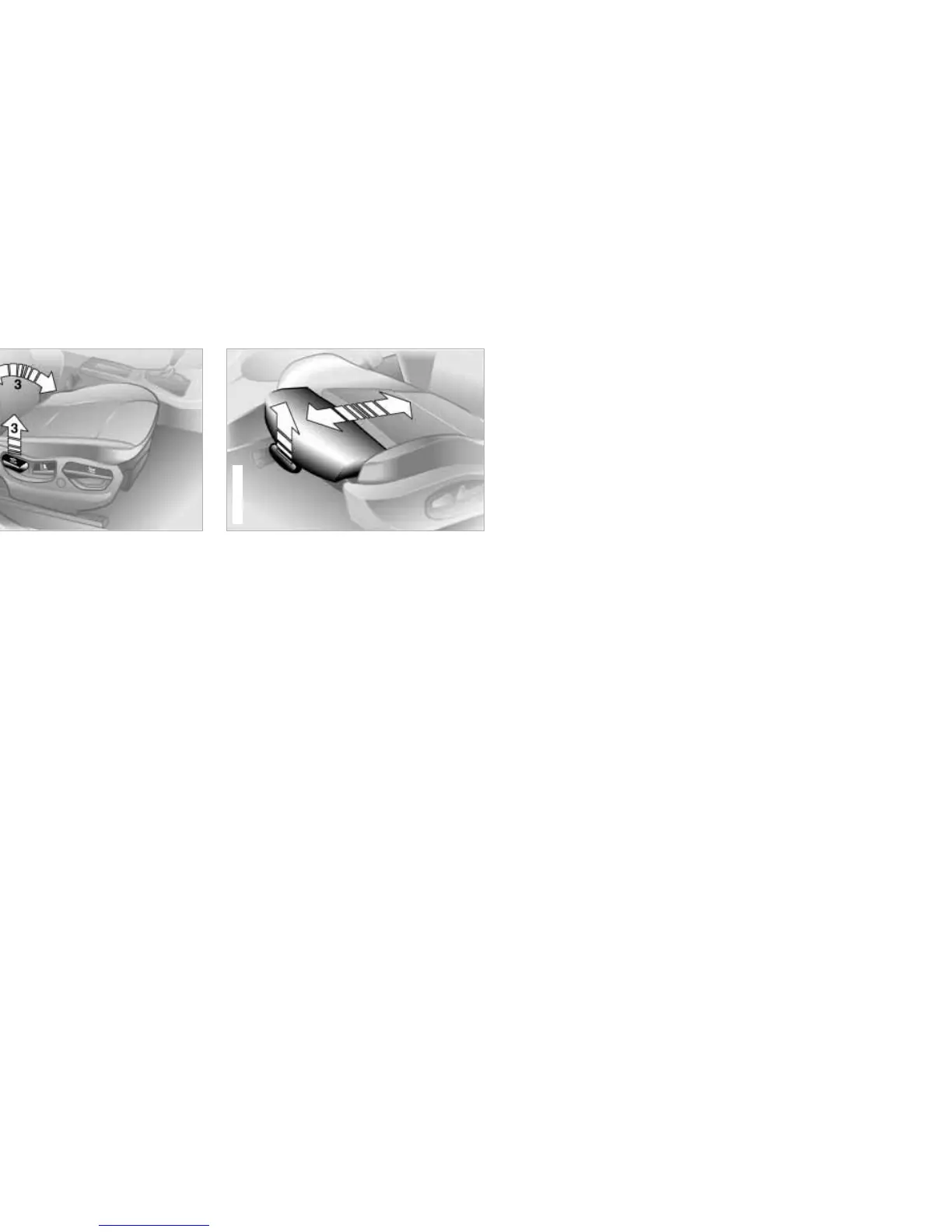

Mechanical seat adjustment
Seat adjustment
1 Backward/forward direction
Pull the lever and slide the seat to the
desired position.
After you release the lever, move the
seat forward or backward slightly so
that it engages fully
2 Height
Pull the lever and apply weight to or
remove weight from the seat as
required
530us211
3 Backrest
Pull the lever and apply weight to or
remove weight from the backrest as
required
Comply with the adjustment
instructions on page 42. Failure
to do so could result in diminished per-
sonal safety.<
530us212
Sports seat* adjustment
You can adjust the thigh support addi-
tionally:
Pull the lever and adjust the position
of the thigh support for your personal
comfort.
