Parking lamps, roadside parking
lamps, daytime running lights
These lamps are made using LED technology.
Contact your service center in the event of a
malfunction.
Turn signals, front
Follow the general instructions on lamps and
bulbs, refer to page 295.

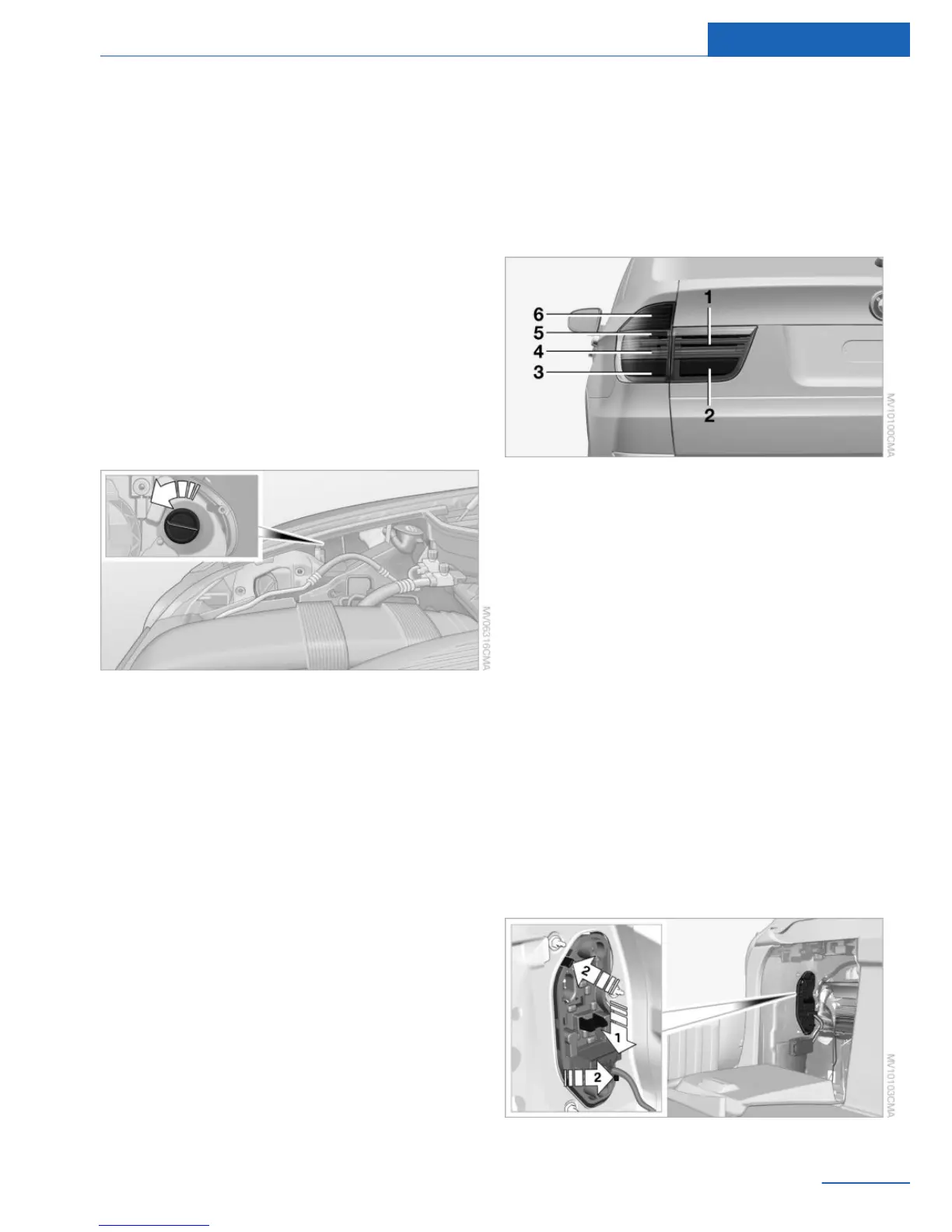

The illustration shows the right side of the en‐
gine compartment.
24-watt bulb, PY24W
1.
Rotate bulb holder to the left and remove it
along with the bulb.
2. Rotate the bulb to the right along with the
socket and replace.
3. Install in the reverse order.
Side marker lamps, rear
Contact the service center for bulb replace‐
ment.
Fog lamps
Follow the general instructions on lamps and
bulbs, refer to page 295.
Contact your service center in the event of a
malfunction.
Tail lamps
▷ Turn signal, brake lamp: 21-watt bulb,
P21W.
▷ Brake force display: 21-watt bulb, P21W.
▷ Backup lamp: 16-watt bulb, W16W
▷ Tail lamp: LED technology.
Contact your service center in the event of
a malfunction.
Arrangement of tail lamps
1 Tail lamp
2 Brake force display
3 Brake lamp
4 Tail lamp/side marker lamp
5 Backup lamp
6 Turn signal
Turn signals, brake lamps and backup
lamps
Follow the general instructions on lamps and
bulbs, refer to page 295.
The bulbs are integrated in a single bulb
holder.
1.
Open the side panel in the cargo area.
2. Remove the first aid kit and warning trian‐
gle if necessary. Fold up the insulation.
Seite 297
Replacing components Mobility
297
Online Edition for Part no. 01 40 2 918 440 - III/13
