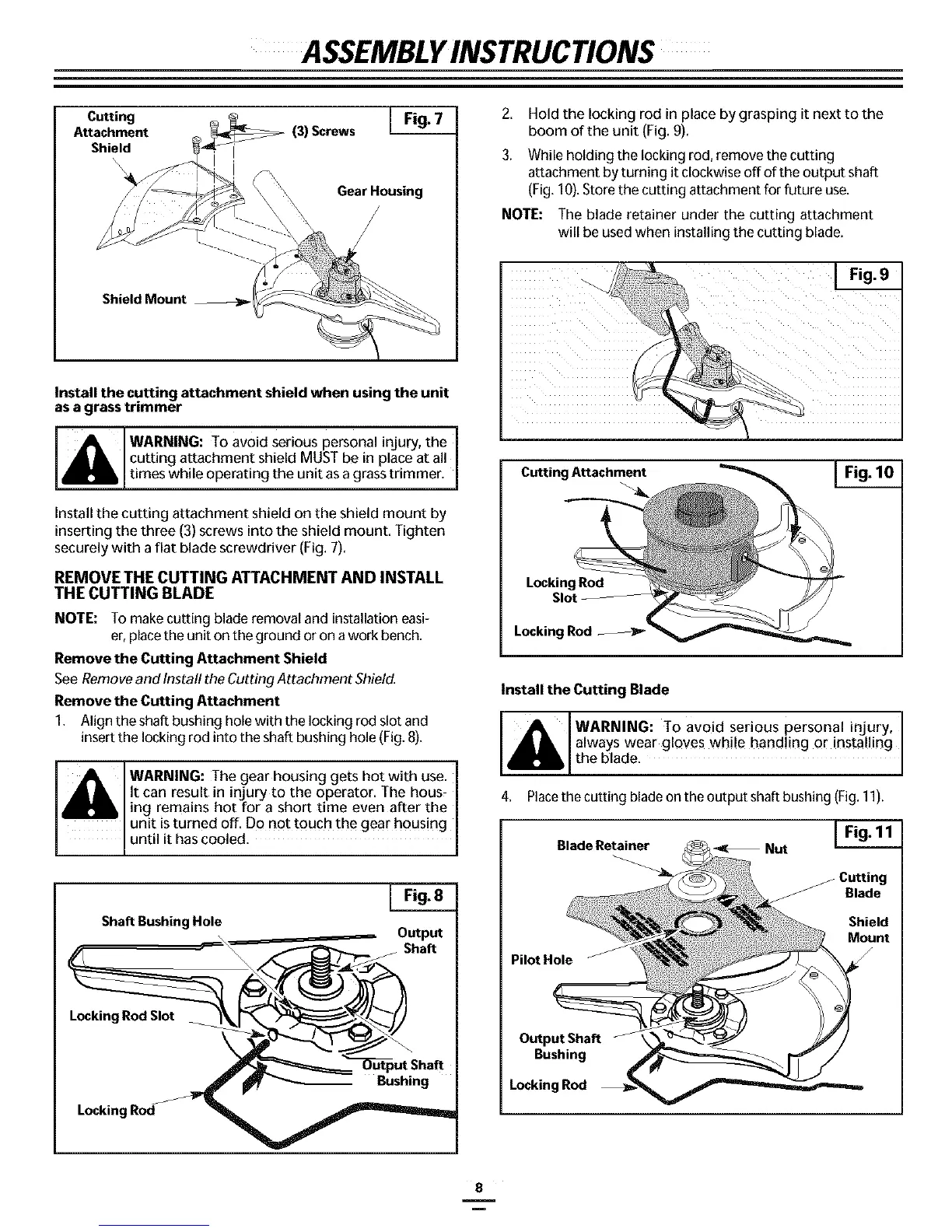

ASSEMBLYINSTRUCTIONS
AttachmentCutting (3) Screws i Fig. 7
Shield
\
Gear Housing
Shield Mount ___
Install the cutting attachment shield when using the unit
as a grass trimmer
WARNING: To avoid serious personal injury, the
cutting attachment shield MUST be in place at all
times while operating the unit as a grass trimmer.
Install the cutting attachment shield on the shield mount by
inserting the three (3) screws into the shield mount. Tighten
securely with a flat blade screwdriver (Fig. 7).
REMOVE THE CUTTING ATTACHMENT AND INSTALL
THE CUTTING BLADE
NOTE: To make cutting blade removal and installation easi-
er, place the unit on the ground or on a work bench.
Remove the Cutting Attachment Shield
See Remove and Install the Cutting Attachment.Shield.
Remove the Cutting Attachment
1. Align the shaft bushing hole with the locking rod slot and
insert the locking rod into the shaft bushing hole (Fig. 8).
Shaft Bushing Hole J Fig.___88
Output
___ Shaft
_===_==_Ut Shaft
___ Bushing
Locking Rod_
8
2. Hold the locking rod in place by grasping it next to the
boom of the unit (Fig. 9).
& While holding the locking rod,remove the cutting
attachment by turning it clockwise off of the output shaft
(Fig.10).Storethe cutting attachment for future use.
NOTE: The blade retainer under the cutting attachment
will be usedwhen installing the cutting blade.
Cutting Attachment
Locking Rod
Slot
Locking Rod
Install the Cutting Blade
4, Place the cutting blade on the output shaft bushing (Fig. 11).
