Plumbing and Mechanical

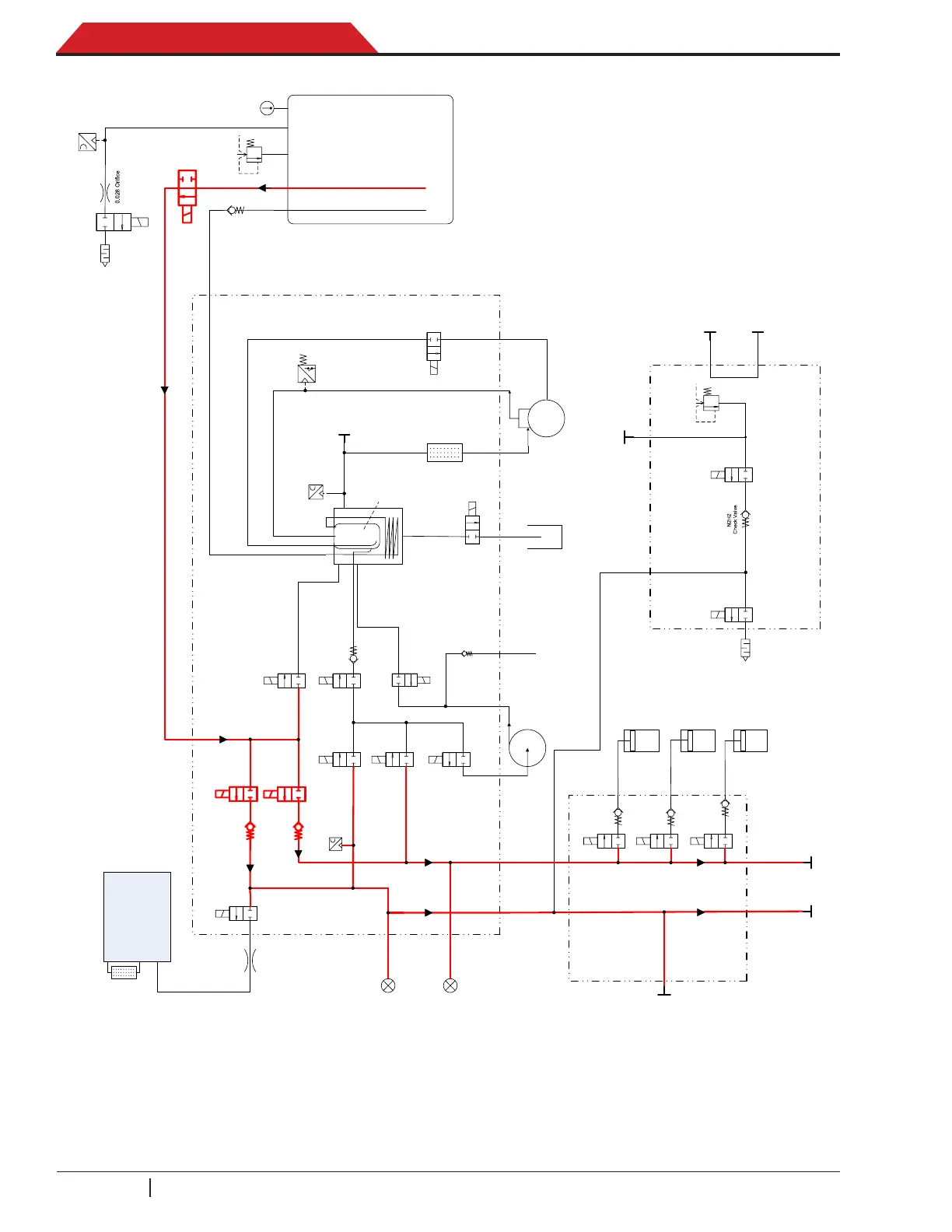

Figure 4-20. Charge
CHARGE PROCESS
During the Charge process, the end user may select either high-side charge, low-side charge, or both. When the
charge process gets close to the programmed weight, the unit slows down. The unit charges by compensation and
will prompt the user in completing the charge. When the charge process is complete, user must equalize hoses.
Low Side
Service Hose
Vacuum Pump
Compressor
Oil 1 Inject
Bottle
Oil Drain
Bottle
High Side
Service Hose
Injection Manifold
Accumulator
Transducer
Deep Recover
Solenoid
HS
Gauge
Vacuum Pump
Exhaust
Filter/Drier
High Pressure
Cut ou t Swt ich
Main Manifold
Pump Exhaust
Check Valve
Oil Return
Solenoid
LS Charge
Solenoid
LS Charge
Check Valve
HS Charge
Solenoid
HS Charge
Check Valve
Recycle
Solenoid
Recover Check
Valv e
Recover
Solenoid
Heat Exchanger /
System Oil
Separator
Compressor Oil
Separator
LS Inlet
Solenoid
HS Inlet
Solenoid
Vacuum
Solenoid
Oil Inject 1
Solenoid
Oil Inject 1
Check Valve
Oil Drain Solenoid
Service Port
Low Side
Storage Port
High Side
Storage Port
ID Orifice
Refrigerant
Identifier
RI Filter
Oil Inject 2
Solenoid
Oil Inject 2
Check Valve
Dye Inject
Solenoid
Dye Inject
Check Valve
Oil 2 Inject
Bottle
Dye Inject
Bottle
LS
Gauge
ID Solenoid
Low Side
Transducer
Vapor Liquid
Internal
Tank
Tank Liquid
Solenoid
Air Purge
Solenoid
Temp.
Sensor
Air
Dif fuser
Pressure
Relief
ISV Pressure
Transducer
Contamination
Port
Flush + N2H2 Manifold
N2H2
Dif fuser
Pressure
Relief
N2H2 Inlet
Solenoid
N2H2 Port
N2H2 Vent
Solenoid
Vapor
Check Valve
