Bosch IDS BOVB 18 Installation Instructions
10.2020 | Bosch Thermotechnology Corp.Data subject to change
10 Service Valves
10.1 Open the Service Valves
WARNING: MODERATE TO SEVERE BURNS
Extreme caution must be exercised when opening the Liquid
Line Service Valve. Turn counterclockwise until the valve
stem just touches the rolled edge. No torque is required.
Failure to follow this warning will result in abrupt release
of system charge and may result in personal injury and /or
property damage.
Leak check and evacuation must be completed before opening the
service valves. The brazed lineset valves should be used for leak
checking and vacuuming. Using the separate suction port for this
process will result in loss of charge.
The Suction Service Valve must be opened fi rst BEFORE opening the
Liquid Service Valve.
1. Remove Service Valve Cap (Fig. 23).
2. Fully insert hex wrench into the stem and back out counterclockwise until
valve stem just touches the rolled edge (approximately five (5) turns).
3. Replace the Valve Stem Cap to prevent leaks. Finger tighten plus an additional
1/6 turn.
4. Repeat STEPS 1 - 3 for Liquid Service Valve.

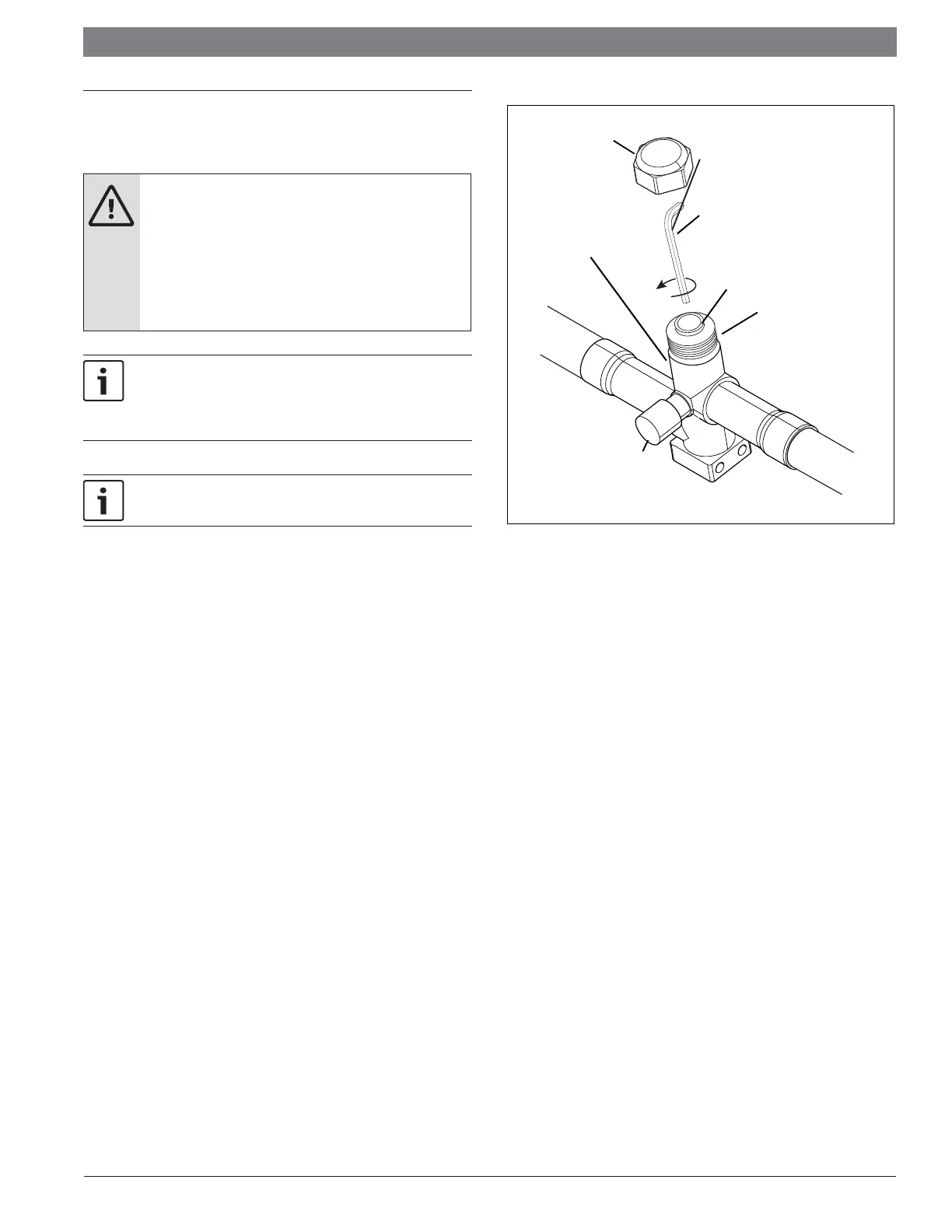

Figure 23
Cap
5/16" Hex Wrench
for Suction Service Valve
3/16" Hex Wrench
for Liquid Service Valve
Rolled Edge to
Captivate Stem
Hex Headed
Valve System
Service Port
Unit Side
of Service
Valve
