11.2 System solutions
The outdoor unit and the indoor unit may only be installed according to
the manufacturer's official system solutions.
Deviating system solutions are impermissible. Liability is voided in the
case of damage and problems resulting from impermissible installation.
Some system configurations require accessories (buffer cylinder, 3-way
valve, mixing valve, DHW circulation pump). If a heating circuit pump
(PC1) is installed, this is controlled by the controller in the indoor unit.
11.2.1 Explanations of the system solutions
Table 7 General Information
Table 8 Z1
11.2.2 Bypass of the heating system

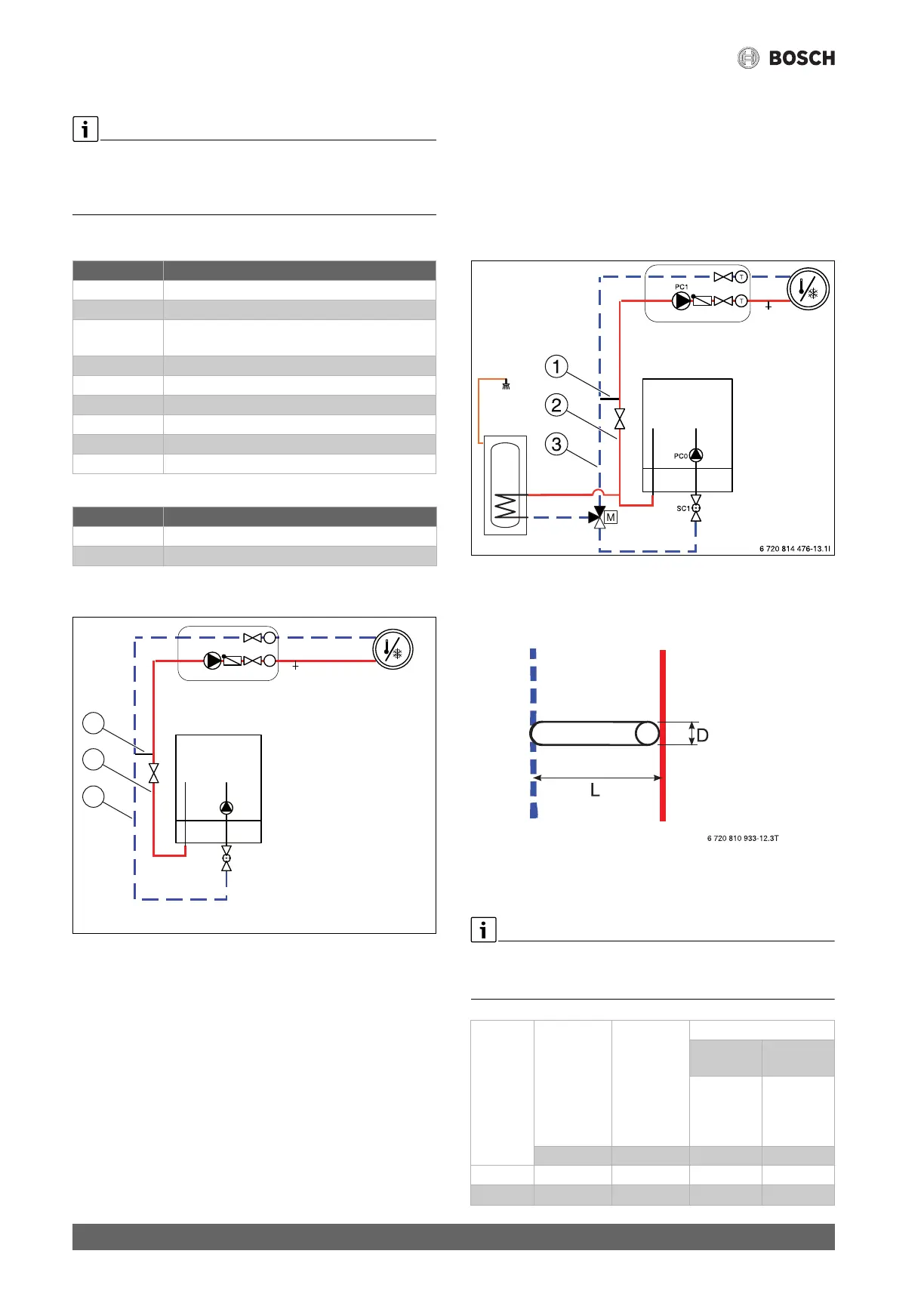

Fig. 24 Indoor unit with heating circuit and bypass
[1] Bypass ( fig. 26) ([1] Tab. 9)
[2] Flow pipe diameter ( [2] Tab. 9)
[3] Return pipe diameter ( [3] Tab. 9)
Fig. 25 Indoor unit with heating circuit and DHW heating
[1] Bypass ( fig. 26) ( [1] Tab. 9)
[2] Flow pipe diameter ( [2] Tab. 9)
[3] Return pipe diameter ( [3] Tab. 9)
Fig. 26 Bypass details (
 [1] [AWES fig. 24 and 25)
[L] Minimum bypass length
[D] Piping diameter
The bypass must have an outer pipe diameter of 22 mm (Cu) and be
installed between the supply and return. The bypass must be installed
close to the indoor unit (AWES), and no more than 1.5 m away from it.
General
SEC 20 Installer module integrated in the indoor unit
HPC 400 User interface
CR10H Room temperature-dependent control unit with air
humidity sensor (accessory)
T1 Outdoor sensor
MK2 Humidity sensor (accessory)
CW1 DHW cylinder (accessory)
VW1 Diverter valve (accessory)
PW2 DHW circulation pump (accessory)
TW1 Hot water temperature sensor
Z1 Heating circuit without mixer
PC1 Circulation pump, heating circuit
T0 Flow temperature sensor
T
T
1
2
3
HP of
outdoor
unit
([2] and [3]
 fig. 24
[AWES] and
25) external
flow/return
pipe diameter
([1]  fig.
24 and 25)
external
bypass pipe
diameter ([D]
 fig. 26)
Bypass design
([A]  fig.
27)
([B]  fig.
27)
Minimum
bypass
length ([L]
 fig. 26)
Minimum
bypass
length ([L]
 fig. 26)
mm mm mm mm
2-8 22 22 200 100
11-15 28 22 200 100
