| 12 | 0 986 614 360 | Product descriptionen
1 689 989 471 2021-07-01| Robert Bosch GmbH
4. Supplementary equipment
set 0986613750
i The supplementary equipment set is required for
tool sets 0986614360 purchased before 2022.
i Supplementary equipment set 0986613750
contains 8tools, a spacer sleeve and a tool holder.
5tools are replacements, 3tools are new.

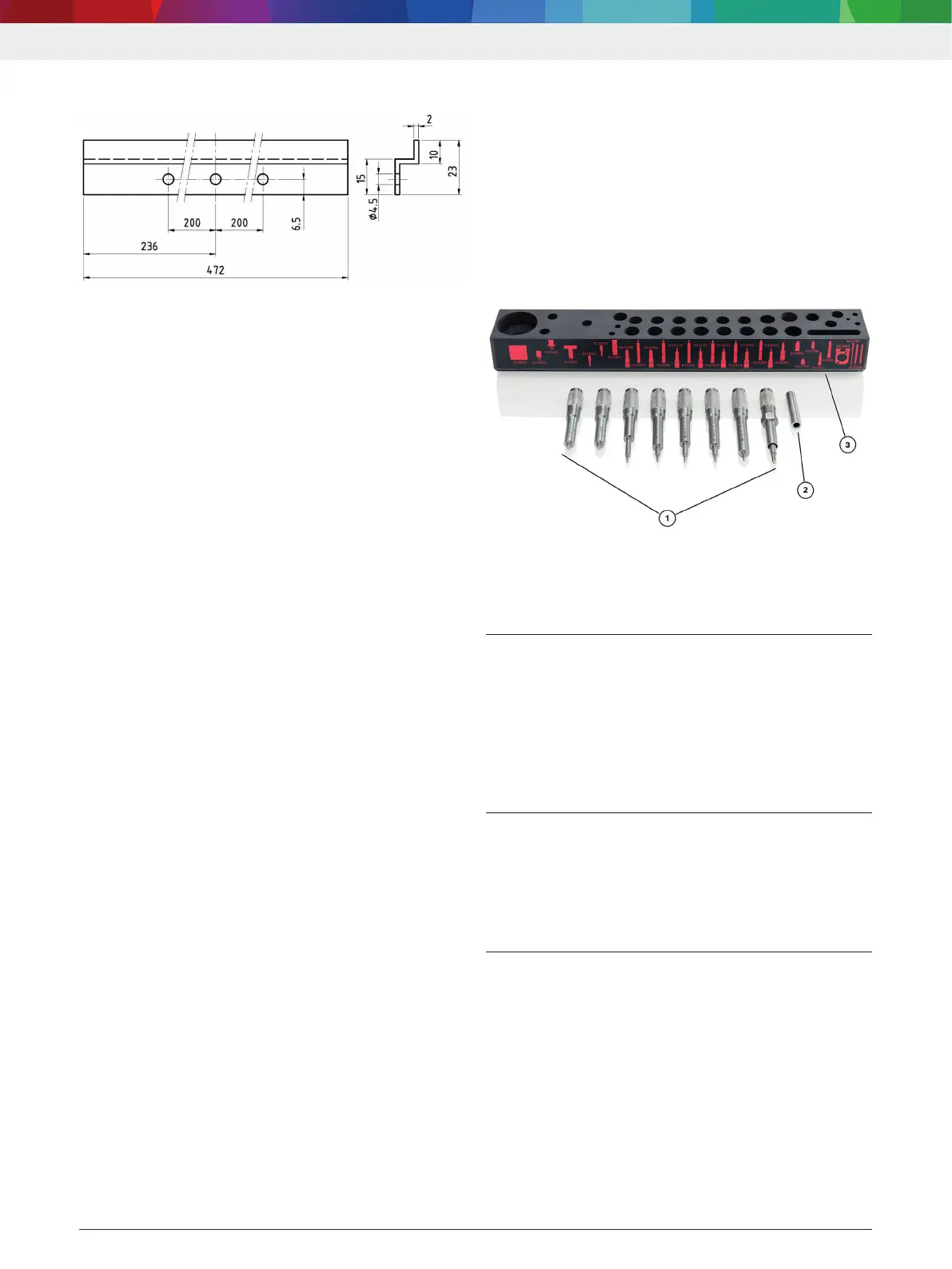

Fig. 5: Supplementary equipment set 0986613750
1 Tools
2 Spacer sleeve
3 Tool holder
4.1 Changing the tool holder
1. Remove all tools from the tool board. Store the
tools in a suitable container.
2. Remove the fastening screws of the lower tool holder
on the back of the tool board.
3. Use the fastening screws to attach the new tool
holder to the tool board.
" The tool board has been converted.
4.2 Converting extractor 0986613165
1. Unscrew the hexagonal spacer sleeve from the
screw tap.
2. Slide the round spacer sleeve (Fig. 5, item 2) onto
the screw tap, and tighten it.
" The extractor has been converted.
4.3 Placing tools
¶ Place the tools. Reference the part numbers and
icons on the tool holders (fig.1, item3).
i 5tools are left. These tools are no longer needed.
3.4.1 Instructions for fastening the strip
Fig. 4: Strip dimensions
i The type of attachment depends on the mounting
surface (e.g. concrete, hollow block, perforated me-
tal plate, wooden panel). Select appropriate bolts,
nuts and dowels. Consult with a specialized retailer
or the manufacturer for information.
! Fully loaded, the tool board weighs approx. 12kg.
Accordingly, only use bolts, nuts and dowels that
can support this weight permanently.
3.4.2 Placing tools
¶ Place the tools. Reference the part numbers and
icons on the tool holders (fig.1, item3).
i There are holes for receiving 3 M7x35 and
M8x30 cylinder head screws each in the top tool
holder. The screws are not included in the tool
set's scope of delivery and must be provided by
the user.
i The 3taper sleeves 0986612801 are to be stored
with the M8x30 cylinder head screws.
