2. Scope of delivery
R CRR 220
R Operating instructions (CD-ROM)
2.1 Accessories (to be ordered
separately)
Designation Function / order number
Voltage stabilizer 1 687 022 873
Adapter CRI/CRIN (K) 0 986 613 506
Adapter CRI/CRIN (AK) 0 986 613 507
Adapter CRIN (Terminal) 0 986 613 508
Instructions for using the voltage stabiliser:
Replace the enclosed power line with an IEC
plug, if necessary, with a power line with a
country-specific mains plug
(100-230 V/ 13A). Never use AC adapters,
such as travel adapters!
¶ Do not overload the mains supply circuit
and the mains socket, if in doubt, contact
an electrician.

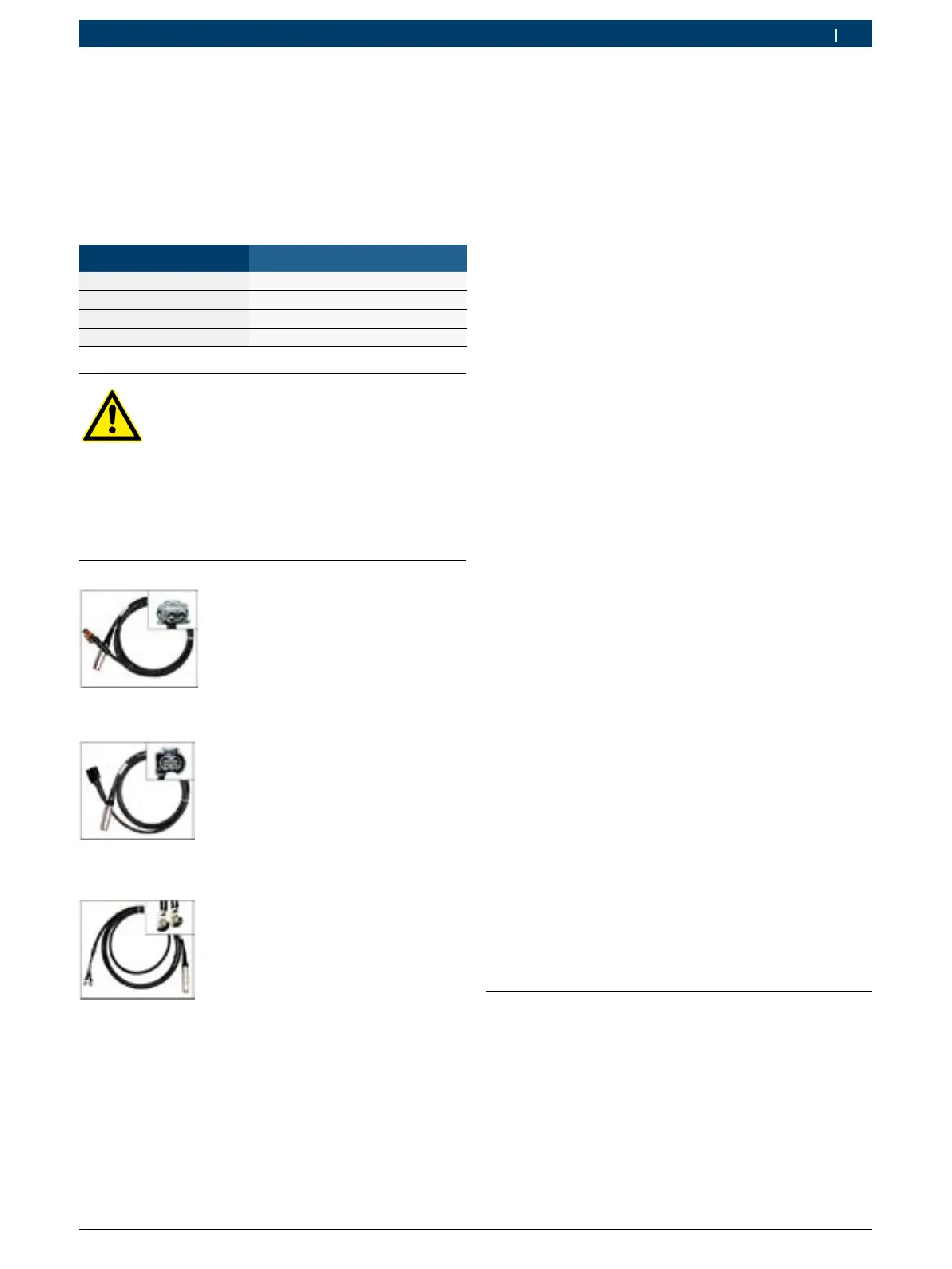

Fig. 1: CRI/CRIN Adapter (K) - 0 986 613 506
Fig. 2: CRI/CRIN Adapter (AK) - 0 986 613 507
Fig. 3: CRIN Adapter (terminals) - 0 986 613 508
3. Environmental protection
Please take the packaging for recycling to the appropri-
ate collection points. In countries other than Germany,
please consult the appropriate local regulations.
4. Safety instructions
The following safety instructions do not claim to
be exhaustive and only relate to work performed
directly on the components.
! Observe the applicable accident prevention regu-
lations. It is assumed that personnel who work
on the system will be suitably qualified and that
they carry out the work conscientiously and in the
proper manner!
! Make sure that systems and devices are only used
for their intended purpose.
! Shut off the power before disconnecting / connect-
ing wires or connectors. Avoid sparks!
! Only operate the CRR 220 with suitable voltage
stabiliser 24V DC/ ≥ 20A.
! The voltage stabiliser's earth wire (PE) must be
connected.
! The 24 V (-) connection must be connected to the
protective earth conductor (PE); refer to Chapter 5
(Electrical Connection).
! Please observe the correct polarity when connect-
ing the CRR 220; the device should never be used
with the polarity reversed.
! Never operate the CRR 220 with worn or defective
accessories.
! Degree of protection IP 20: Only use the device in
the prescribed testing room.
Scope of delivery | CRR 220 | 9
