Attaching The
Vacuum Hose

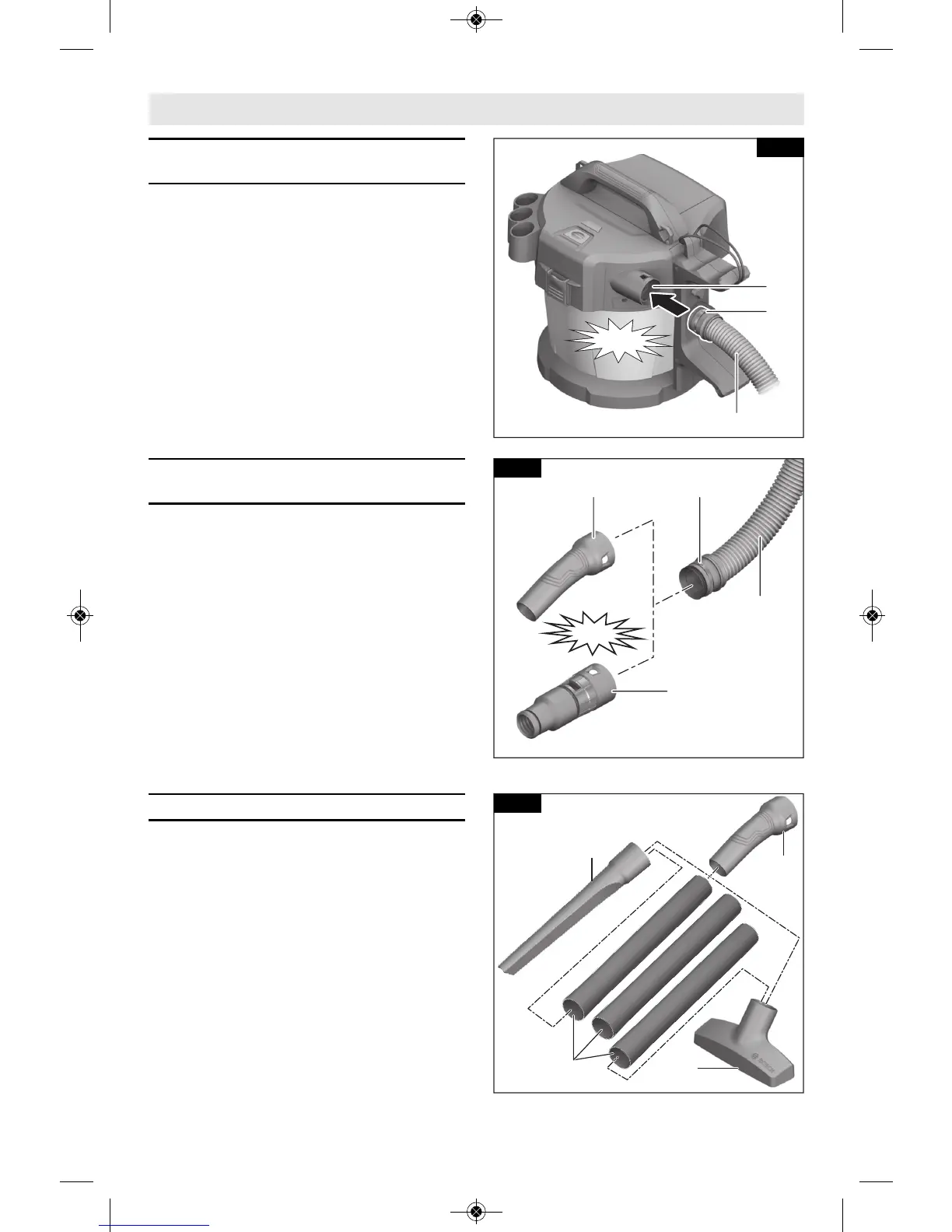

- Insert vacuum hose 13 into port 8
until both snap fasteners 25 audibly
lock in place (Fig.6).
Note: The friction generated by the dust
in the vacuum hose and accessory
during vacuuming causes an
electrostatic charge that the user may
experience as static discharge
(depending on environmental factors
and their physiological state).
Attaching The Power Tool
Adapter Or The Bend
Attach the power tool adapter 14 or the
bend 15 to the vacuum hose 13 until
both snap fasteners 25 of the vacuum
hose click into place (Fig. 7).
To disassemble, press both snap-
fasteners 25 inward and pull the
components apart.
Mounting Nozzles And Tubes
If required, place the extension tubes 18
firmly inside one another and then
attach them firmly to the bend 15.
Attach the floor nozzle 17 or the crevice
nozzle 16 firmly to the extension tube
18 or the bend 15 (Fig. 8).
8
25
13
Fig. 6
C
LI
C
K!
2515
14
13
C
LI
C
K!
Fig. 7
Fig. 8
15
16
18
17
