Getting to Know Your Vacuum Cleaner
Remove the battery pack before making any assembly, adjustments or
changing attachments. Such preventive safety measures reduce the risk
of starting the tool accidentally.

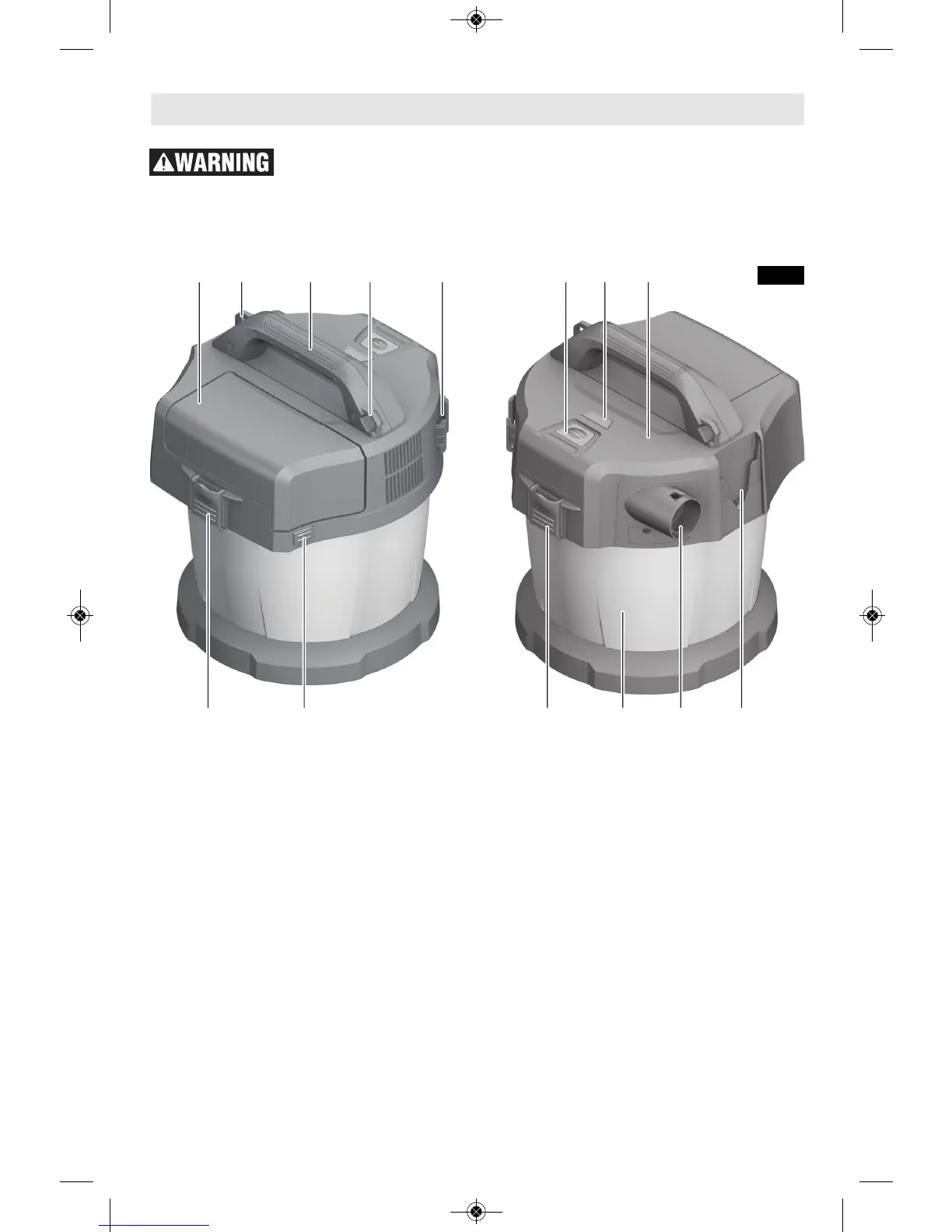

18V Canister Vacuum Cleaner GAS18V-3
12112
12 996 10 34 5
87
1 Canister
2 Latch
3 On/Off button
4 Battery charge status indicator
5 Motor unit
6 Carrying handle
7 Slot for vacuum hose holder
8 Hose connection port
9 Lock loop
10 Slot for extension tube holder
11 Battery compartment cover release
button
12 Battery compartment cover
13 Vacuum hose**
14 Power tool adapter**
15 Bend**
16 Crevice nozzle**
17 Floor nozzle**
18 Extension tube**
19 Battery compartment*
20 Battery pack (SOLD SEPARATELY)*
21 Battery release button*
22 Extension tube holder*
23 Vacuum hose holder*
24 Mounting bolt for holder 23*
25 Snap fasteners*
26 Air diffuser*
27 Filter**
28 Filter base*
29 Retaining strap of the vacuum hose*
* Not Shown. See further in these
operating instructions.
** Shown in Fig. 2 on the next page.
