9
Assembly and Preparation

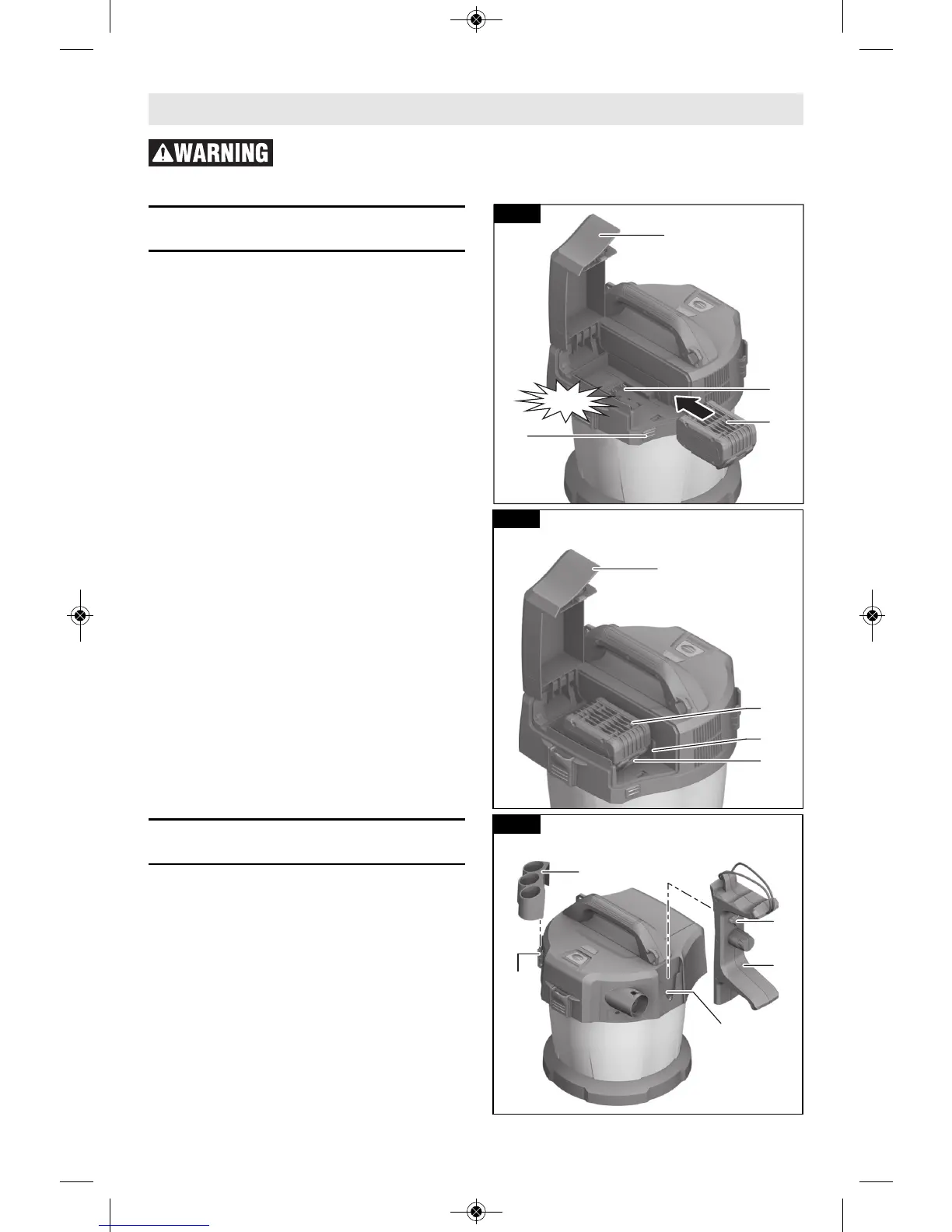

Inserting And Releasing
Battery Pack
Do not use force to insert the battery.
The battery is designed in such a way
that it can only be inserted into the
vacuum cleaner when it is in the right
position.
Keep the battery compartment and the
battery bay clean and dry at all times
to ensure reliable, safe operation.
To insert battery:
- press battery compartment cover
unlocking button 11 and the spring-
loaded compartment cover 12 will
open automatically (Fig. 3);
- slide the battery 20 into battery
compartment 19 as shown, until it
clicks in place (Fig. 3);
- close the battery compartment cover
12.
To remove battery:
- press battery compartment cover
unlocking button 11 and the spring-
loaded compartment cover 12 will
open automatically (Fig. 3);
- press battery unlocking button 21
and pull the battery 20 out of battery
compartment 19 (Fig. 4);
- close the battery compartment cover
12.
Hose And Attachment
Holders
To mount attachment holders:
- slide the extension tube holder 22
into the slot 10 as shown, until it is
held securely in place (Fig. 5);
- slide the vacuum hose holder 23 into
the slot 7 as shown (Fig. 5);
- tighten the bolt 24 to secure the
vacuum hose holder 23 in place
(Fig. 5).
Remove the battery pack before making any assembly, adjustments or
changing attachments. Such preventive safety measures reduce the risk
of starting the tool accidentally.
12
19
20
11
Fig. 3
19
20
21
12
Fig. 4
CL
ICK
!
24
22
23
Fig. 5
7
10
