23
PR006 Underscribe
Attachment
(Available as optional accessory)
The PR006 Underscribe Attachment is
used to create precision-fit seams
between two sheets of laminate (Fig.
28), such as stile and rail
constructions and very large surfaces.
It is attached to the bottom of the
PR111 Plunge Base.
INSTALLATION (FIG. 29)
1. Remove rear screws used to hold
subbase onto PR111 Plunge Base.
2. Attach infeed side of PR006 to the
Plunge Base using hex screw.
3. Insert eccentric adjuster into
pocket on outfeed side of PR006.
4. Attach outfeed side of PR006 to
the Plunge Base using hex screw.
BIT INSTALLATION
• The recommend bit for use with
the Underscribe Attachment is the
Bosch 85213M with 1/8” cutting
diameter.
• It should be installed according to
the instructions on page 9.
BIT HEIGHT ADJUSTMENT
After installing the bit, the height
should be adjusted as follows:
1. Lower bit until it just enters the
recess that is machined in the
underscribe attachment’s
aluminum plate.
2. The tool is now ready for making a
test cut.
FRONT-TO-BACK ADJUSTMENT
If necessary, the cutting point can be
adjusted front-to-back as follows
(Fig. 30):
1. Loosen the two screws holding the
aluminum plate.
2. Using the pin wrench, adjust the
eccentric adjuster as follows:
• For a tighter seam, turn the
eccentric adjuster clockwise (as
viewed from under the base)
• For a looser seam, turn the
eccentric adjuster counter -
clockwise, (as viewed from under
the base)
3. Retighten the screws
4. Make a test cut
5. Repeat steps 1-4 as necessary

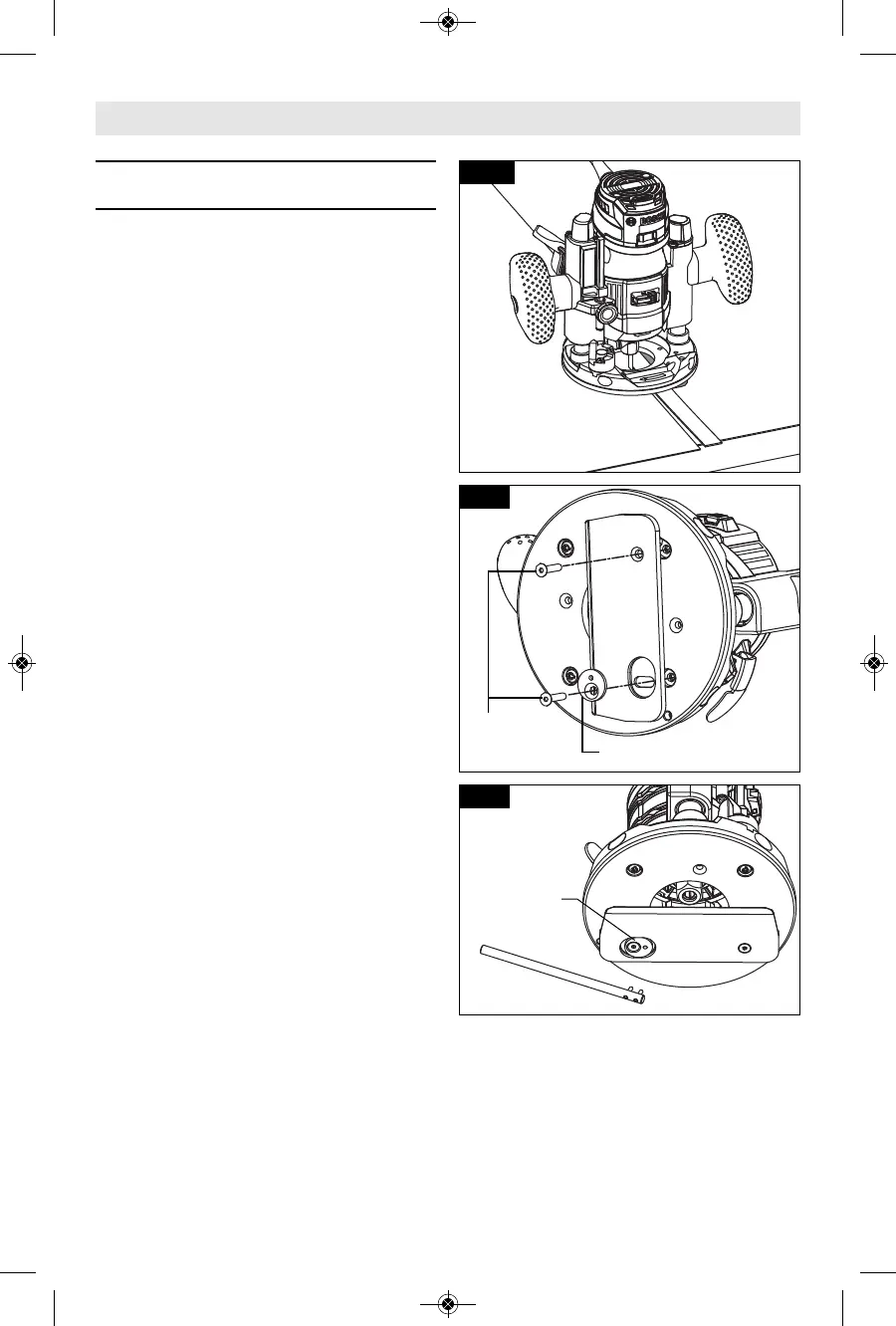

FIG. 28
FIG. 29
FIG. 30
PIN
WRENCH
ECCENTRIC ADJUSTER
ECCENTRIC
ADJUSTER
HEX
SCREW
