▶ To do this, screw an eye bolt completely into the female thread on the drive shaft.
The thread size is indicated in the installation drawing.
▶ Make sure that the eye bolt can bear the total weight of the axial piston unit
plus 20%.
You can lift the axial piston unit as shown in Fig. 4 with the eye bolt screwed into the
drive shaft.

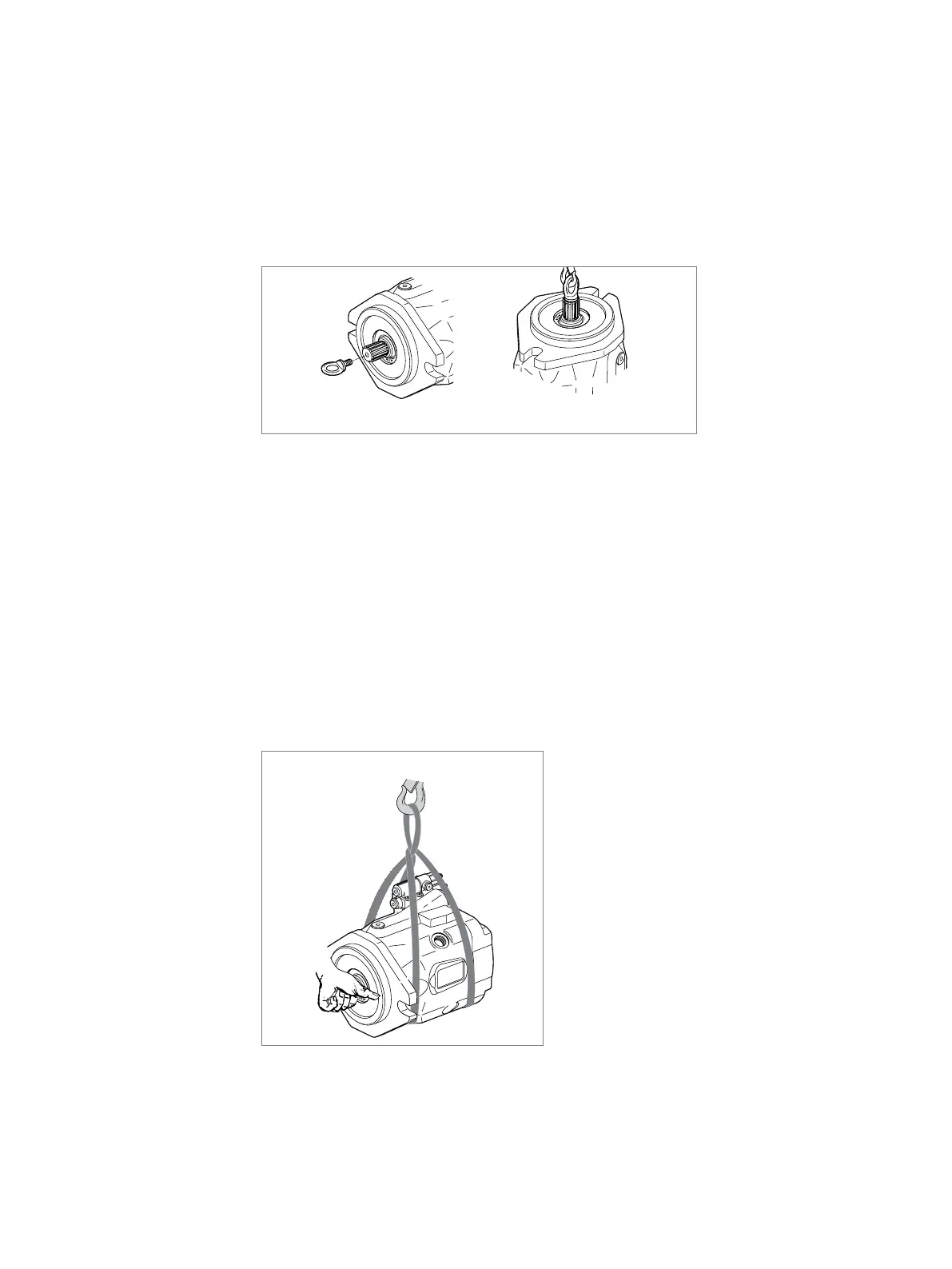

Fig. 4: Installing the eye bolt
WARNING! Danger from suspended loads!
During transport with a lifting device, the axial piston unit can topple out of the
lifting strap and cause injury.
▶ Use the widest possible lifting strap.
▶ Make sure that the axial piston unit is securely fixed with the lifting strap.
▶ Only guide the axial piston unit by hand for fine positioning and to avoid swinging.
▶ Never stand or reach under suspended loads.
▶ Place the lifting strap around the axial piston unit in such a way that it does not
pass over assembled parts (e.g. valves, piping) and that the axial piston unit is
not suspended from assembled parts (see Fig. 5).
Fig. 5: Transporting with lifting strap
Transporting with
lifting strap
