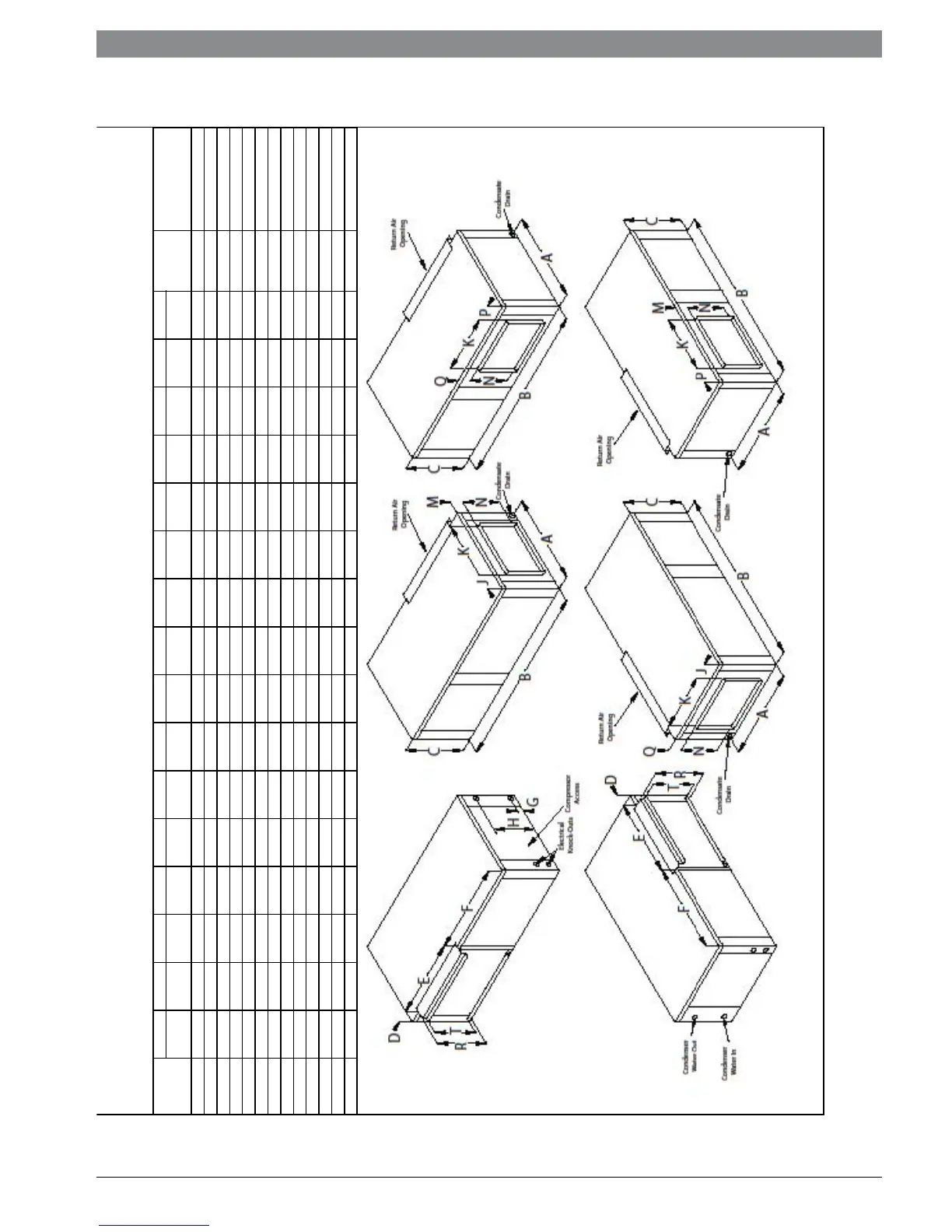

Dimensional Drawings | 51Revised 08/14
8 733 914 818 (2014/08)SV Heat Pump Series
Horizontal
Horizontal
ABCDEFGH JKMNPQRT
SV007 19 33 11.5 1.5 16.15 15.35 2.38 9.625 5.13 5.8125 6.22 3.6 5.13 1.66 14.5 8.6 3/4" F.P.T. 10x16x1
SV009 19 33 11.5 1.5 16.15 15.35 2.38 9.625 5.13 5.8125 6.22 3.6 5.13 1.66 14.5 8.6 3/4" F.P.T. 10x16x1
SV012 19 33 11.5 1.5 16.15 15.35 2.38 9.625 5.13 5.8125 6.22 3.6 5.13 1.66 14.5 8.6 3/4" F.P.T. 10x16x1
SV015 22 43 17 1.5 20.15 21.35 2.86 15.38 6.9 5.95 9.8 3.6 6.4 3.64 18.5 15 3/4" F.P.T. 16x20x1
SV018 22 43 17 1.5 20.15 21.35 2.86 15.38 5.7 8.6 6.3
6 9.15 5.2 1.5 18.5 15 3/4" F.P.T. 16x20x1
SV024 22 43 17 1.5 25.15 16.35 2.86 14.13 5.7 8.6 6.36 9.15 5.2 1.5 23.5 15 3/4" F.P.T. 16x25x1
SV030 22 43 17 1.5 25.15 16.35 2.86 14.13 5.7 8.6 6.36 9.15 5.2 1.5 23.5 15 3/4" F.P.T. 16x25x1
SV036 22 54.5 19 1.5 30 23 2.85 16.13 6.9 8.63 7.75 9.8 6.4 1.46 28.5 17 3/4" F.P.T. 18x30x1
SV041 (N/A) N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
SV042 22 54.5 19 1.5 30 23 2.85 16.13 6.9 8.63 7.75 9.8 6.4 1.46 28.5 17 3/4" F.P.T. 18x30
x1
SV048 25 54.5 21 1.5 34.6 18.4 2.86 18.13 7.5 10 7.7 10.86 7 2.4 33 19 1" F.P.T. 20x34.5x1
SV060 25 54.5 21 1.5 34.6 18.4 2.86 18.13 7.5 10 7.7 10.86 7 2.4 33 19 1" F.P.T. 20x34.5x1
SV070 25 65 21 1.5 48.1 15.4 2.86 18.13 6.5 11.26 7 12 6 1.93 46.5 19 1" F.P.T. 20x24x1 (2)
Condenser
Water
Connections
Recommended
Standard Replacement
Nominal Filter Size
MODEL
Width Depth Height
R/A Duct
Flg Width
R/A Duct
Flg Width
R/A Duct
Flg Height
