The stand is equipped with two adjustable
feet for leveling the stand, as shown in
figure 19.
To adjust: loosen wing nut and adjust the
height of the foot by screwing the threaded
shaft clockwise to raise foot or counter-
clockwise to lower foot. Retighten wing nut
securely.
!9&3))/:89&'.1.9>
To ensure the proper engagement of the
locking pins for safe and stable operation, the
following adjustment is made at the factory
prior to your T4B shipping. In the event
further adjustment is necessary, the user can
quickly and easily do so.
To review the need for adjustment, unfold the
stand as shown on page 9.
When unfolded, both left and right locking
pins should fully extend without a gap
between the locking pin and plate edge, as
shown in figure 20. If a pin is not fully
extended, follow steps 1 through 3 to adjust.
1. Using a wrench, loosen the jam nut on
each side of the stand, one quarter turn
only (figure 21).
2. Next, tighten the carriage bolt on the side
of the stand that has a gap between the
locking pin and plate edge. If this further
misaligns the stand, try loosening the bolt
on the other side instead. Continue to do
so on either side until the components
align and both pins extend fully.
3. Once fully aligned, tighten the jam nut on
each side.
To reduce the risk of injury,
periodically check that all
fasteners are attached and adjusted
according to the assembly instructions
included in this manual.
-12-
&.39*3&3(*
!
WARNING

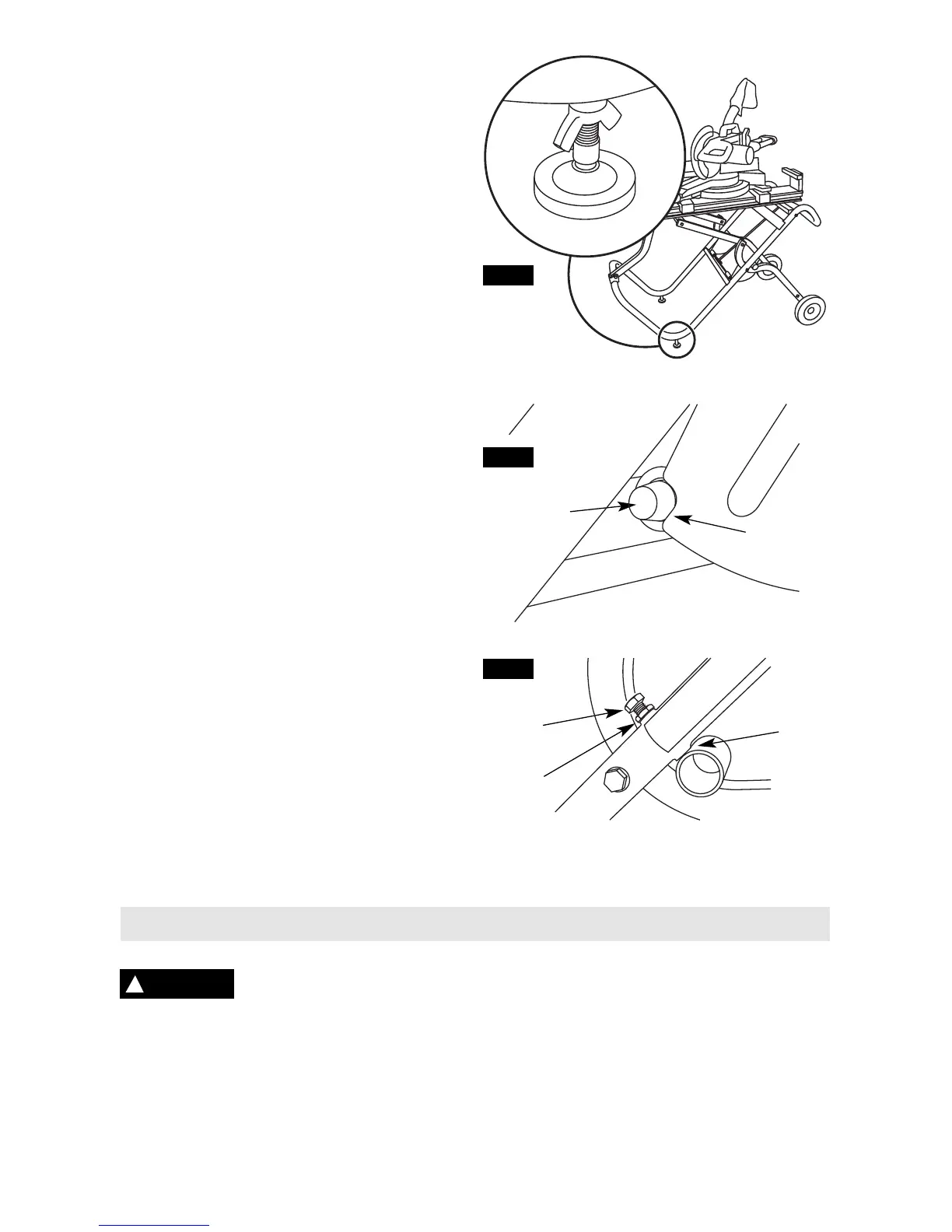

FIG. 19
Jam Nut
Carriage
Bolt
Contact
Point
Carriage
Bolt
Locking Pin
Fully Extended
Check for
gap here
FIG. 20
FIG. 21

Bosch T4B Specifications

General

Material	Steel
Weight Capacity	300 lb
Wheels	Yes
Load Capacity	300 lbs
Color	Blue
Adjustability	Height adjustable
