!9*5
99&(-&.37&2*&3)&8*":'*

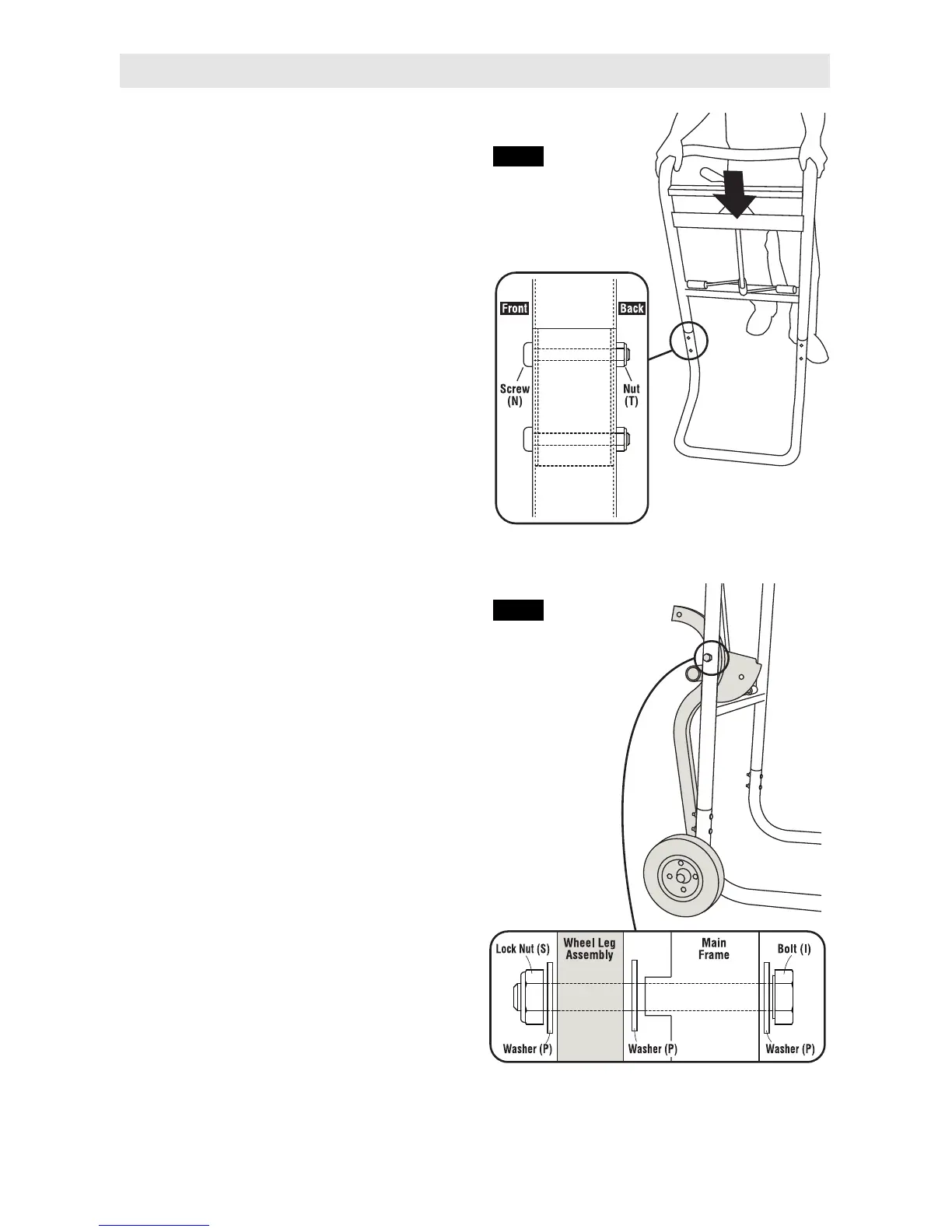

1. Position base tube on a flat surface as
shown in figure 1.
2. Insert ends of main frame into the base
tube and push downward as far as it will
go.
3. Insert four (4) 8 mm x 50 mm Phillips Head
Screws (N) through the holes of the main
frame and base tube, and securely tighten
with four (4) 8 mm lock nuts (T) as shown.
!9*5
99&(-$-**1*,88*2'1.*8
1. Locate the right wheel/leg assembly (see
“R” sticker) and position on right side of
main frame/base tube assembly as shown
in figure 2.
2. Place one (1) 10mm flat washer (P) onto
one (1) 10 mm x 100 mm bolt (I) and insert
through main frame.
3. Place another (1) 10 mm flat washer (P)
on bolt between wheel/leg assembly and
main frame.
4. Insert bolt through right wheel/leg
assembly, place one (1) 10 mm flat washer
(P), and loosely tighten with one (1) 10 mm
lock nut (S).
49* Do not over-tighten lock nut. These
parts need to freely rotate for stand to
operate properly.
Repeat procedure on left side.
-5-
88*2'1>
FIG. 1
FIG. 2
