Bose 1401 II Series User Manual

PART LIST NOTES

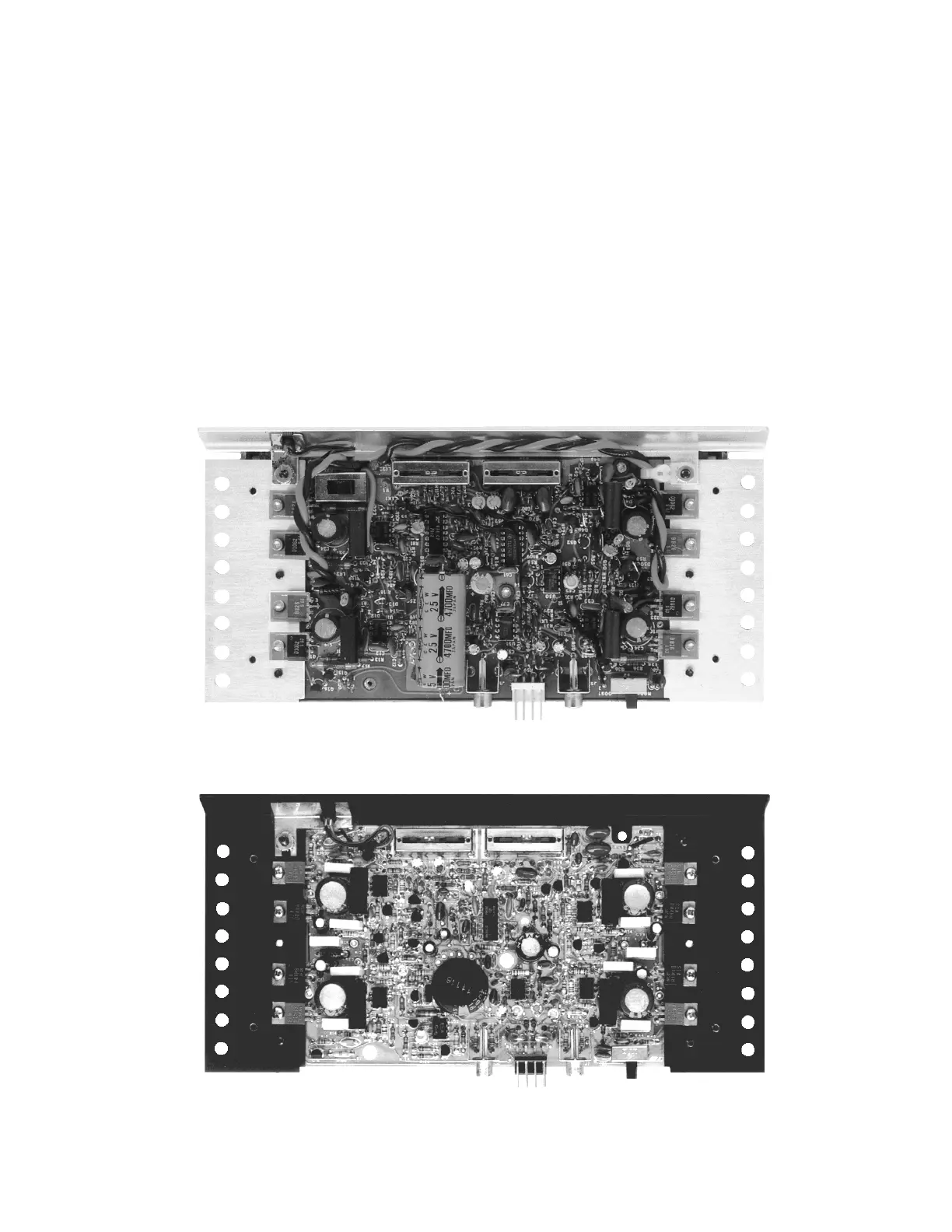

1401 series II PCB Layout View
1401 series I PCB Layout View
1. This part is not normally available from Customer Service. Approval from the Field Service
Manager is required before ordering.
2. The individual parts located on the PCBs are listed in the Electrical Parts Lists.
3. The reference designators in bold are found in the 1401™ PCB's with serial numbers below
5,000.
4. The reference designators in bold are found in the 1201 only. All other reference designators
are common to both the 1401 II and the 1201.
5. This item is not shown. The item is used with the 1401 II using 6"x 9" speakers (large
vehicle systems).
PCB IDENTIFICATION
16
