Bose 151 User Manual

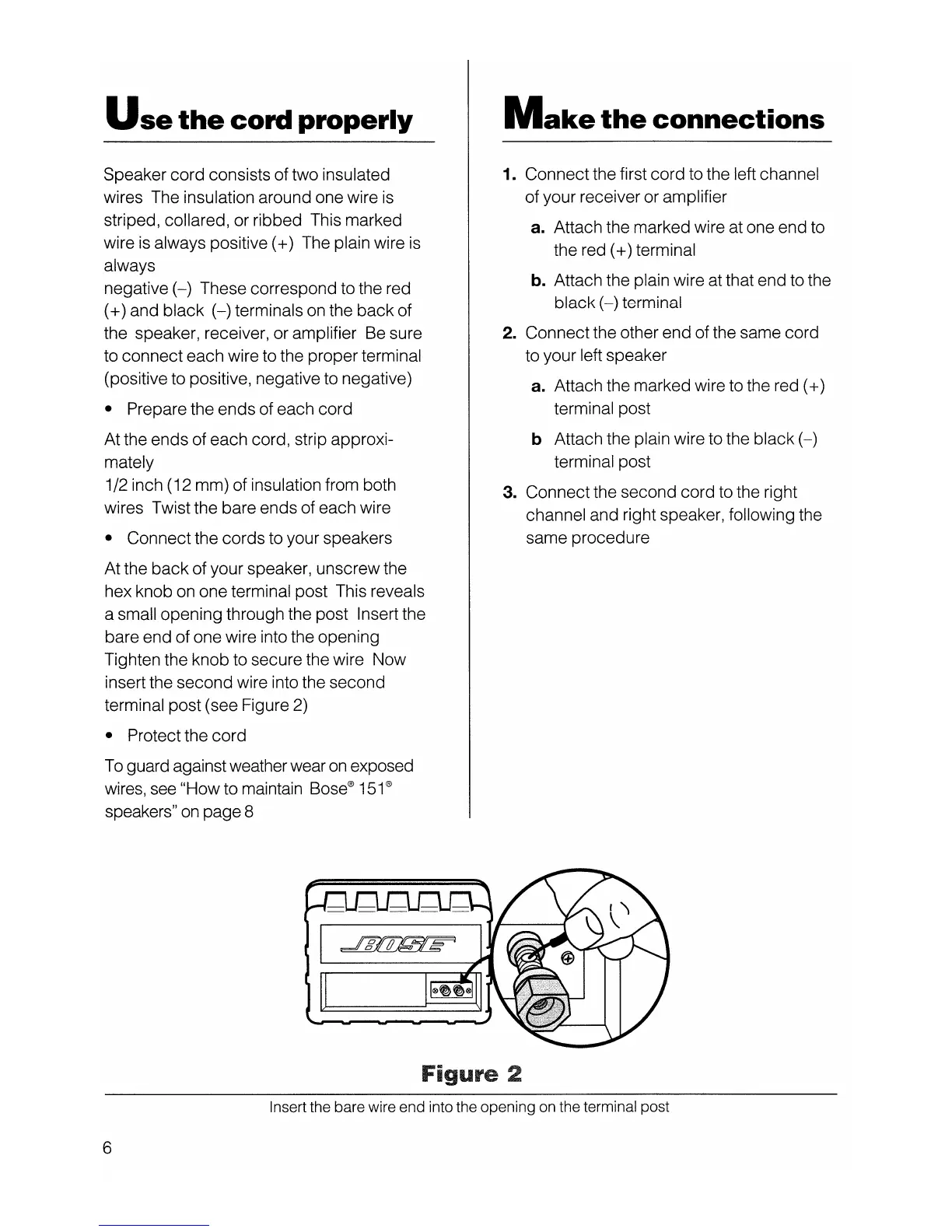

Use the cord properly
Speaker cord consists of two insulated
wires The insulation around one wire
is
striped, collared, or ribbed This marked
wire
is always positive (+) The plain wire is
always
negative
(-) These correspond to the red
(+) and black (-) terminals on the back of
the speaker, receiver, or amplifier Be sure
to connect each wire to the proper terminal
(positive to positive, negative to negative)
• Prepare the ends of each cord
At the ends of each cord, strip approxi-
mately
1/2 inch (12 mm) of insulation from both
wires Twist the bare ends of each wire
• Connect the cords to your speakers
At the
back of your speaker, unscrew the
hex knob on one terminal post This reveals
a small opening through the post Insert the
bare end of one wire into the opening
Tighten the knob to secure the wire Now
insert the second wire into the second
terminal post (see Figure 2)
• Protect the cord
To guard against weather wear on exposed
wires, see "How to maintain
Bose® 151 ®
speakers"
on page 8
Make the connections
1. Connect the first cord to the left channel
of your receiver or amplifier
a. Attach the marked wire at one end to
the red
(+) terminal
b. Attach the plain wire at that end to the
black
(-) terminal
2. Connect the other end of the same cord
to your left speaker
a. Attach the marked wire to the red (+)
terminal post
b Attach the plain wire to the black
(-)
terminal post
3. Connect the second cord to the right
channel and right speaker, following the
same procedure
Insert the bare wire end into the opening on the terminal post
6

Bose 151 Specifications

General

Type	In-wall/On-wall/In-ceiling speakers
Dimensions (WxDxH)	318 x 152 x 114 mm
Speaker type	2-way
Tweeter diameter	64 mm
Audio output channels	2.0 channels
RMS rated power	- W
Product color	White
Package weight	5100 g

Weight and Dimensions

Weight	4300 g
