CONTROLS AND INDICATORS
Reading the system indicators

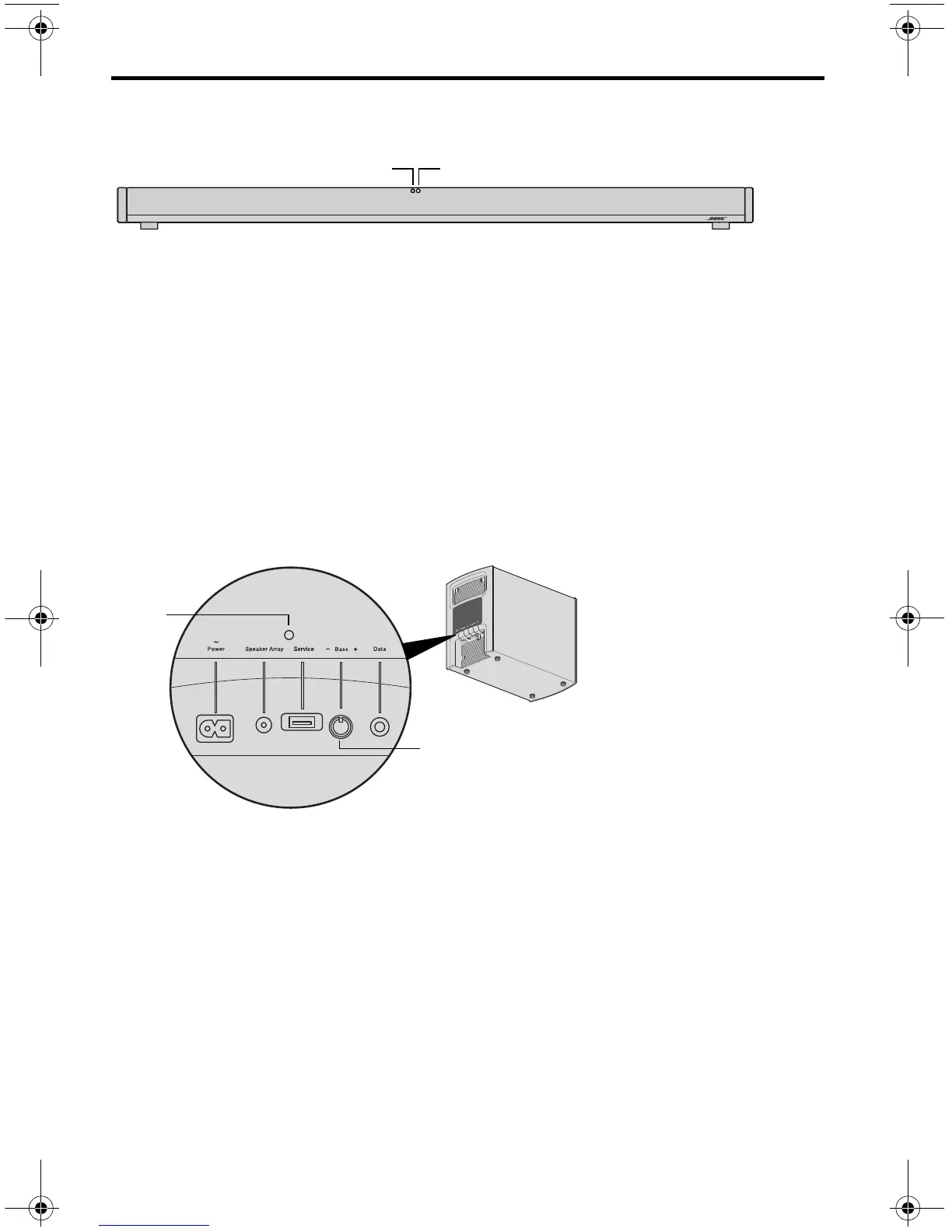

Speaker array indicators
Acoustimass module indicator
Adjusting the bass level
The bass control knob located on the rear of the Acoustimass module allows you to
change the bass level output of the system. Turn the bass control knob clockwise to
increase the bass, counter-clockwise to decrease the bass.
Power indicator:
Solid white..................................... Power on
Fast blinking white........................ System is muted
Very fast blinking white................. System volume has reached the max or min limit
Status indicator:
Off .................................................. Speaker array and Acoustimass
®
module are connected
Slow blinking orange ....................Speaker array is available to make a wireless connection
Fast blinking orange .....................Speaker array is disconnected and trying to connect
Solid green .................................... ADAPTiQ
®
system is activated
Blinking green ............................... ADAPTiQ system is calculating data
Blinking green 5 secs.................... AC power applied
Solid red ........................................ System error
PowerStatus
Status indicator:
Solid orange................................... Speaker array and Acoustimass module are connected
Blinks orange every 3 secs ........... Acoustimass module is disconnected from speaker array
(or speaker array is off: Acoustimass module standby)
Slow blinking orange.....................Acoustimass module is available to make wireless connection
Solid red......................................... System error
Status
Bass control knob
*For service use only
*
*
