Front Panel LED Indicators
POWER
Power on or fault-state indication
• Green: Power on, normal operation
• Red: Fatal Error (See "Troubleshooting" on page 21).
STATUS
Indicates the operating condition of the unit.
• Green: Configuration loaded, operating normally
• Yellow: DSP resource shortage (delay or cycles)
• Red: Configuration error (See "Troubleshooting" on page 21.
• Off: No configuration loaded
ETHERNET
Connection status indication of the Ethernet control network
• Green: Link established
• Yellow: Tx activity
• Red: Rx activity
SERIAL
RS-232 or CC-16 serial command status indication. (Does not indicate Serial over Ethernet activity)
• Green: CC-16 controller command transmitted
• Yellow: CC-16 controller command received
• Red: RS-232 Rx/Tx activity
Use the following procedure when setting up a ControlSpace
®
ESP-00 II engineered sound processor for the first time.
1. Download and install the latest version of ControlSpace
®
Designer™ software
2. Unbox the ESP processor
3. Install expansion cards
4. Rack-mount the ESP processor
5. Make audio I/O connections
6. Make CC-16 and RS-232 connections
7. Connect GPIO devices
8. Establish a network connection
9. Connect the power cable, turn on unit
10. Configure the ESP processor using ControlSpace Designer software
1. Download and install the latest version of ControlSpace
®
Designer
™
software
Install ControlSpace Designer software prior to working with the ControlSpace ESP processor. Visit pro.Bose.com to download the
latest software version which includes product firmware, the latest algorithms and a detailed help system that guides system designers
and installers through configuring the ESP processor for use in high-quality audio systems.
2. Unpacking
The product box includes the following items. Inspect all components for shipping damage and contact your Bose Representative if any
issues are found.

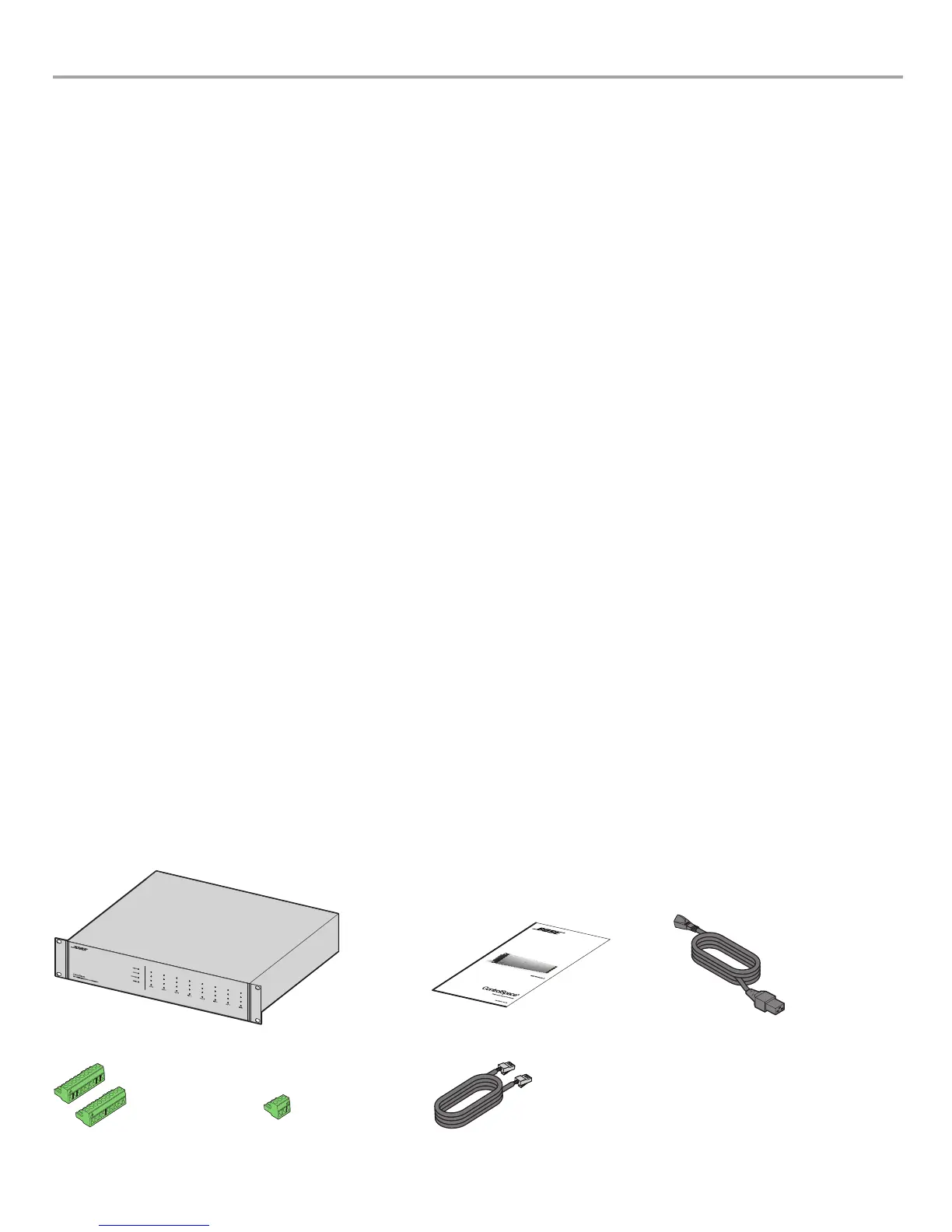

Figure 5. Carton Contents
+ –
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
Installation Guide Power cord
Control I/O connectors (2) CC-16 connector F/UTP Cat5e crossover network cable
ESP-00 II processor
