3. Expansion Card Installation
Detailed installation instructions for option cards can be found in each card box and also can be downloaded from
pro.Bose.com. To prevent damage to the ESP-00 II processor and cards, an electrostatic discharge (ESD) safe work area is
recommended during the installation of option cards.
4. Rack-Mounting
The ESP-00 II processor is designed to fit standard 19-inch (48 cm) rack equipment, occupying 2 rack-units (RU) in height, and requiring
a mounting depth of 13.1 inches (334 mm) from the front rack rail. Use four fasteners with washers (not supplied) to mount the unit.
The product uses side-ventilation with air intake occurring on the right side and exhaust on the left side where a single fan is located.
Refer to page 22 for power dissipation ratings.
5. Analog Audio Connections using Option Cards
Using Euroblock connectors supplied with analog audio cards, microphone or line level connections can be made to balanced/unbal-
anced devices.

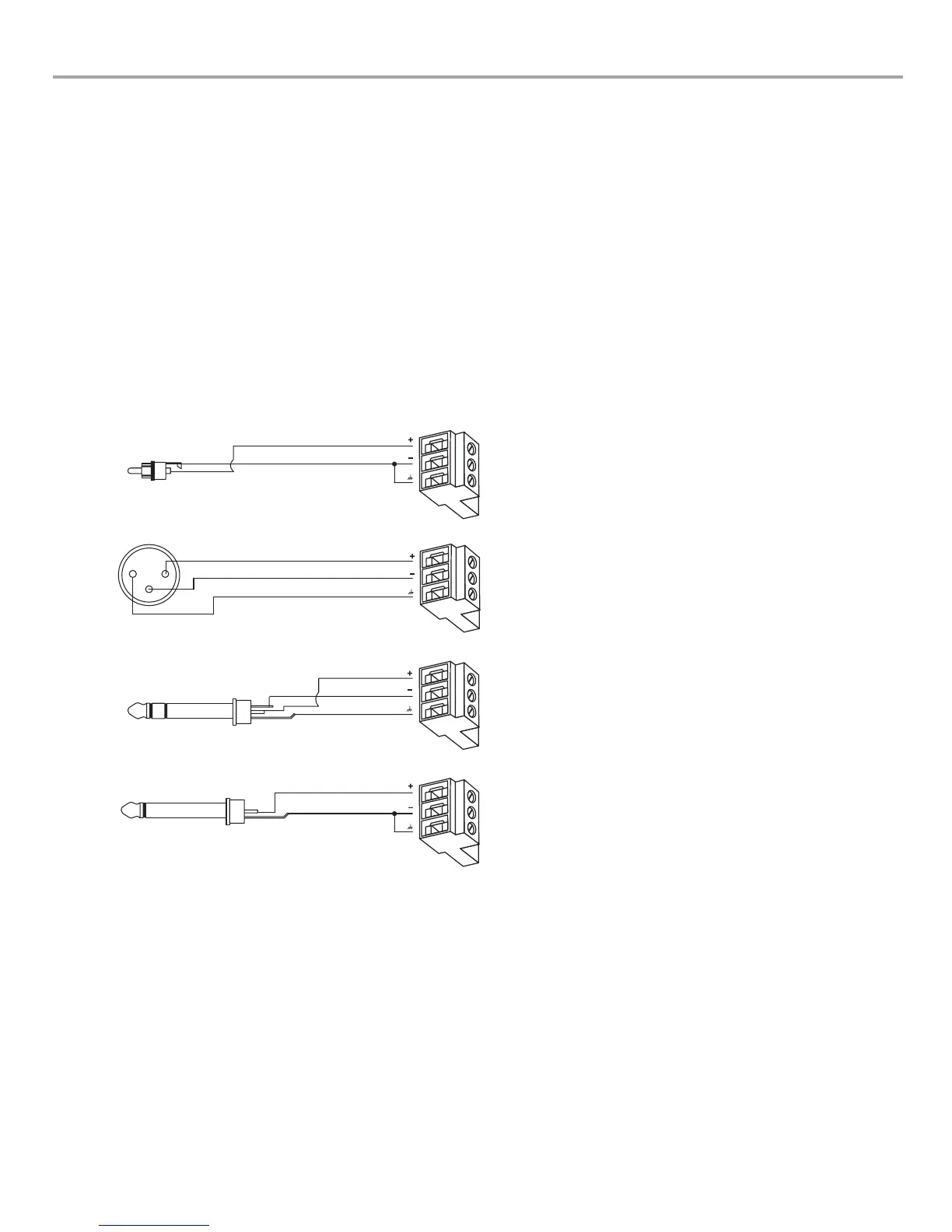

Figure 6. Wiring Balanced and Unbalanced Devices
XLR
3
1
2
3
Phone Plug
(Balanced)
T RS
T
R
S
RCA
T
S
12
Phone Plug
(Unbalanced)
T
S
T
S
TS
Source Device
Connector
Euroblock
Input Connector
