12 - English
Operation
Power On/Off Sequence
When turning the system on, turn on input sources and mixing consoles first and then turn on the F1 Model 812
Loudspeaker and the F1 Subwoofer. When turning the system off, turn off the F1 Model 812 and F1 Subwoofer first
followed by input sources and mixing consoles.
Setting EQ selector switches
Recommended settings for the EQ selector switches on the F1 Model 812 Loudspeaker and the F1 Subwoofer are
describe in the following table.
System Setup
F1 Model 812
EQ Switch
F1 Subwoofer
LINE OUTPUT EQ Switch
F1 Model 812 Loudspeaker used without F1 Subwoofer FULL RANGE Not applicable
Signal input to F1 Subwoofer, F1 Subwoofer output to F1 Model 812 Loudspeaker WITH SUB THRU
Signal input to F1 Model 812 Loudspeaker, F1 Model 812 output to F1 Subwoofer FULL RANGE
or WITH SUB*
No affect
*Provides more bass extension.

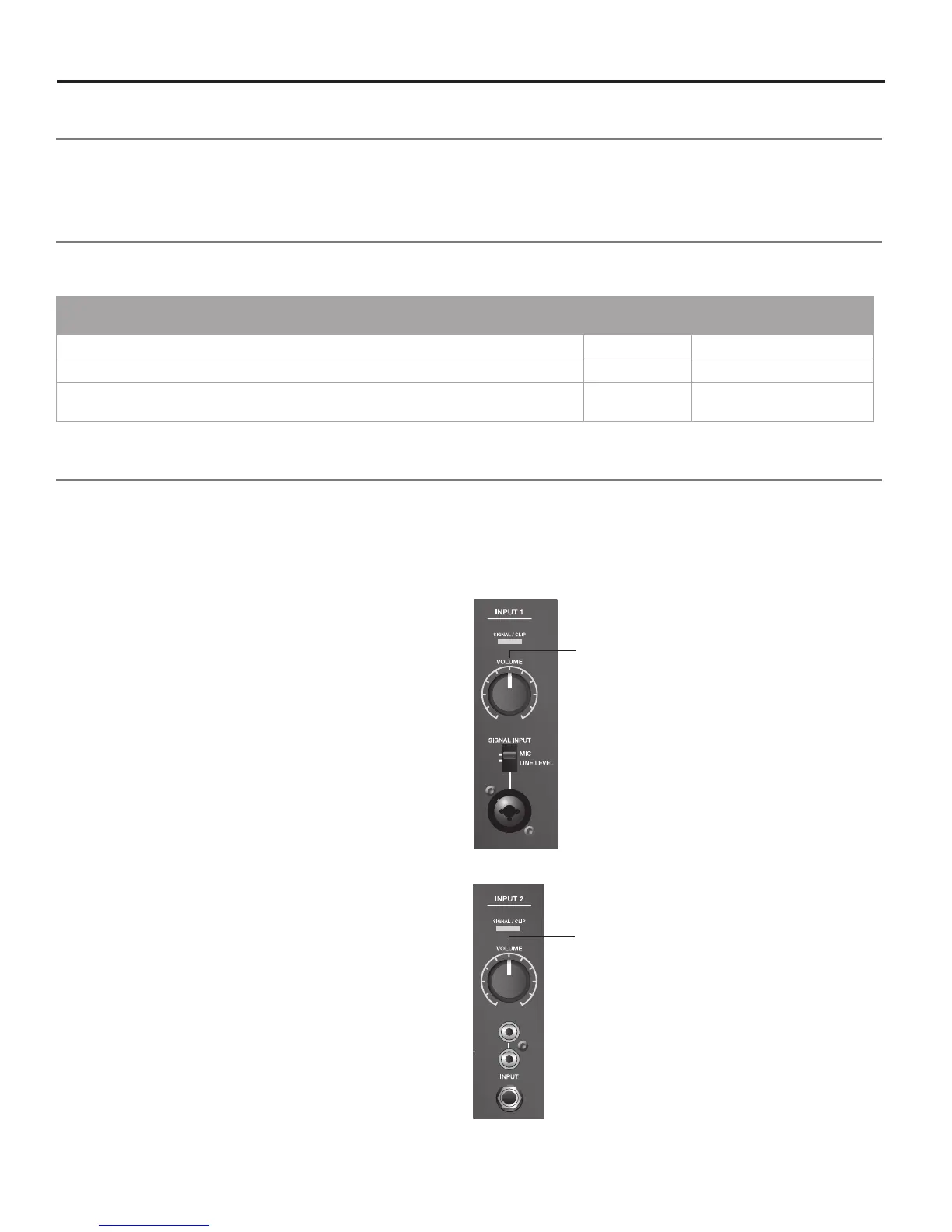

Connecting Sources
Before plugging in a sound source, turn the VOLUME control of the channel fully counter-clockwise.
The two independent inputs provide a combination of input connectors that can accomodate microphone and
line-level sources.
Note: Only dynamic or self-powered microphones can be used for INPUT 1.
Setting Up INPUT 1 with a Microphone
1. Turn the INPUT 1 VOLUME fully counter-clockwise.
2. Set the SIGNAL INPUT switch to MIC.
3. Plug the mic cable into the INPUT 1 connector.
4. Adjust the VOLUME to your desired level.
Setting Up INPUT 1 with a Source
1. Turn the INPUT 1 VOLUME fully counter-clockwise.
2. Set the SIGNAL INPUT switch to LINE LEVEL.
3. Plug the source cable into the INPUT 1 connector.
4. Adjust the VOLUME to your desired level.
Setting Up INPUT 2 with a Source
1. Turn the INPUT 2 VOLUME fully counter-clockwise.
2. Plug the source cable into an INPUT 2 connector.
3. Adjust the VOLUME to your desired level.
0 dB (detent)
0 dB (detent)
