13
System Setup
Connecting audio to the input labeled VIDEO
When connecting audio from a video component to the VIDEO L and R jacks on the Interface
module, remember to:
• use standard RCA audio cables (one is supplied with the FreeStyle
®
speakers)
•match the red connector to the right channel (R) and the white (or black) connector to the
left channel (L)
• use a Y-adapter (available at electronics stores) to connect to a mono source
For further details on making the video connections between your game console and TV, refer
to the manuals for those video components.
Important Note: Your television must be set for VIDEO INPUT when playing a game console.
If it is not set properly, you may hear the sound, but will not see the picture on the TV screen.
For most TV models*, there is a button labeled either TV/VIDEO, INPUT, or AUX IN (or a similar
term) for you to use. When the video input is correctly selected, the word VIDEO, AUX, or
LINE IN usually appears in a corner of the TV screen.
If you are unable to locate the video input of your television, please consult the manufacturer
of your TV.
*Other TV models (in particular, some GE/RCA/Proscan models) assign the video input to
channel 00 or 91, so you need to select that channel to receive the video input.
Make the power connection after all the others
To make the final connection, insert the small connector end of the power cord into the AC
INPUT jack on the module (refer to Figure 12 on page 11). Insert the large end of the cord into
an AC power (mains) outlet (Figure 16).

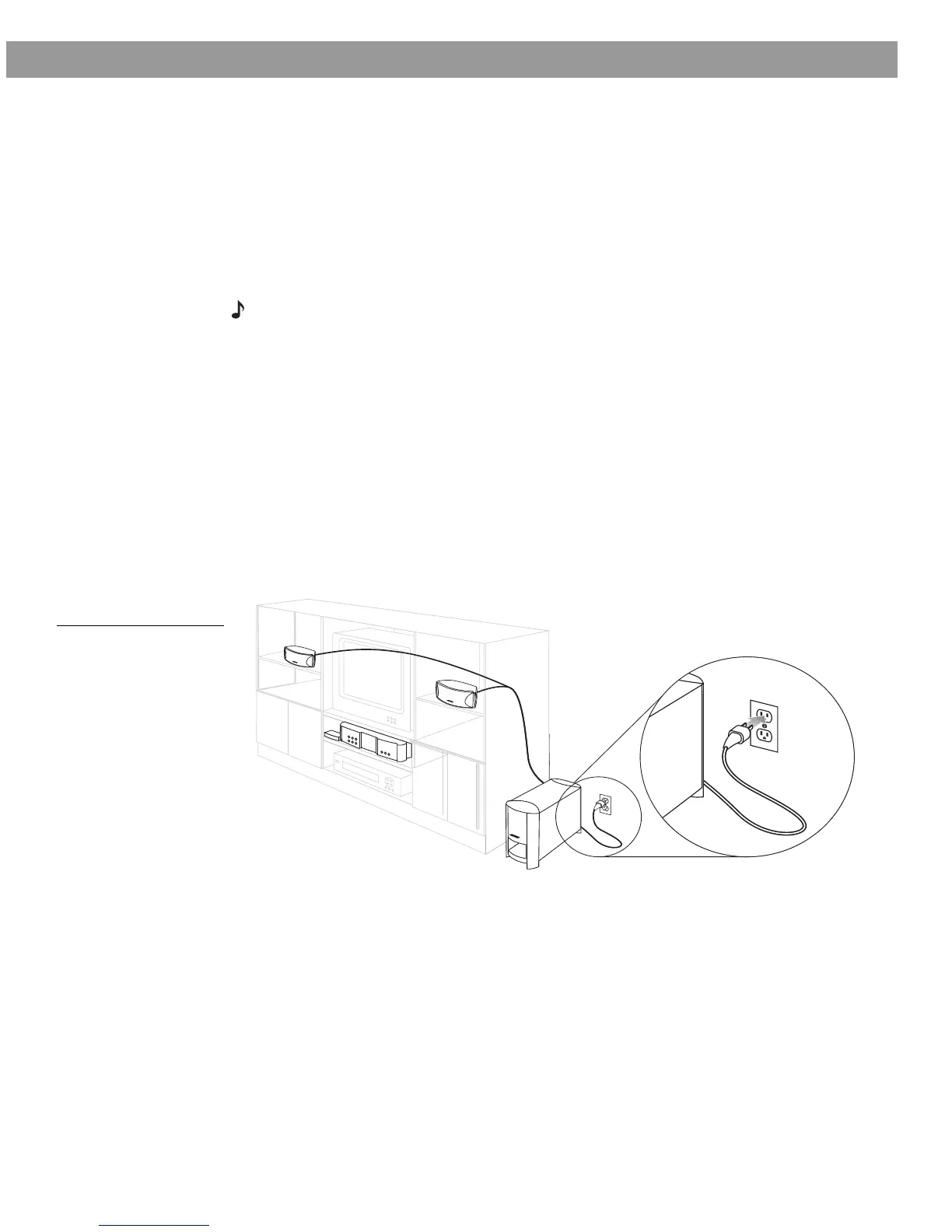

Figure 16
Power cord as the final
connection
AM267190_00_V_pdf • July 24, 2002
