9
System Setup

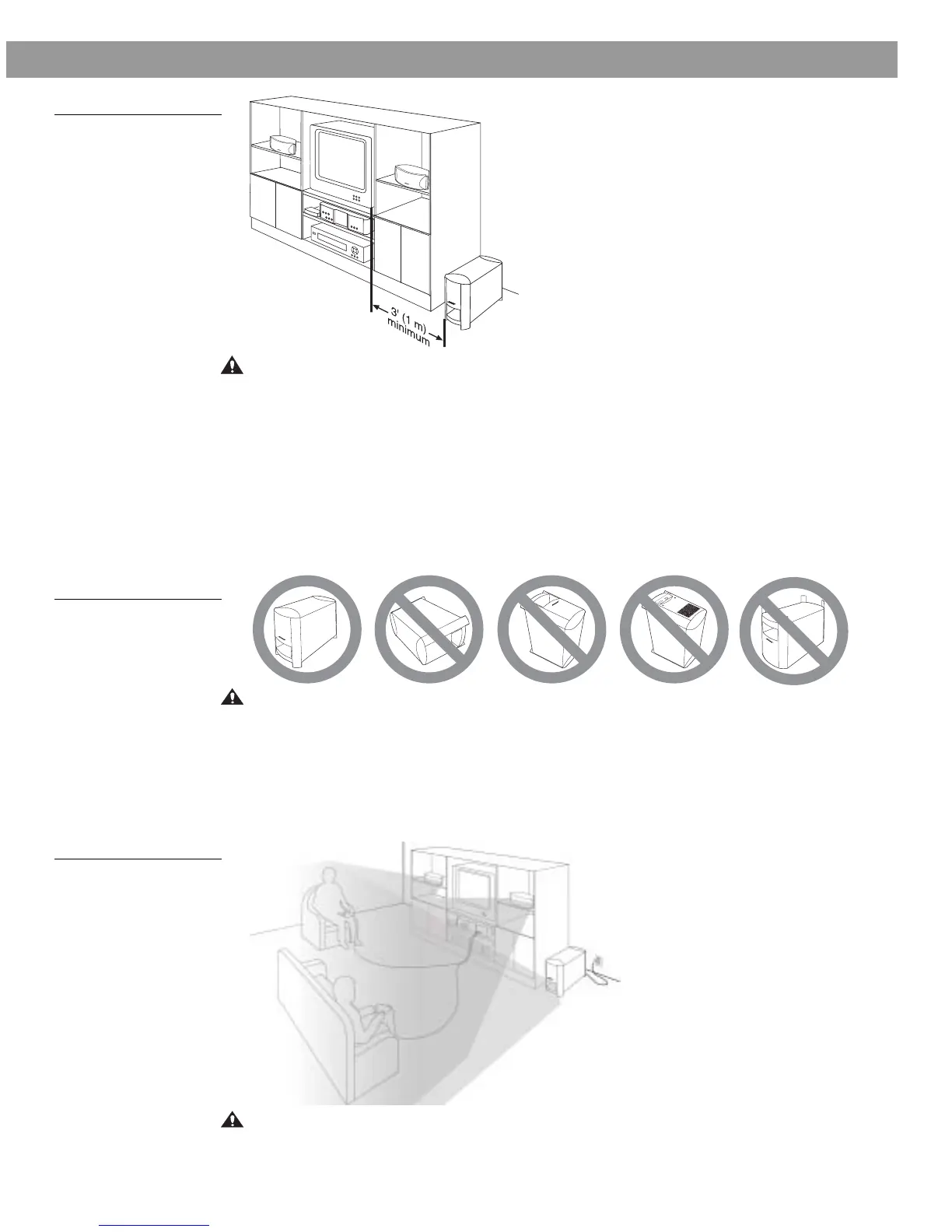

Figure 6
3-foot distance between
the Acoustimass
®
module
and the TV
CAUTION:
The Acoustimass module generates a magnetic field. Although this is not an
immediate risk to your video tapes, audio tapes, and other magnetic media, you should not
store any of these items directly on or near the module.
Be sure to:
• aim the port of the module away from the wall to decrease bass or toward the wall to
increase bass (maintain at least 3 inches from the wall).
• stand the Acoustimass module on its legs. Do not lay it on its side or stand it on either end
(Figure 7).
• attach the large rubber feet to the bottom of each leg on the module. The rubber feet pro-
vide increased stability and protection from scratches.
Figure 7
Recommended orientation
for the module
CAUTION:
Do not block the openings on the back of the module, which provide ventilation
for the built-in circuitry.
Enjoying the freedom this system allows
When the speakers, Acoustimass module, and Interface module are placed as directed, you
can enjoy the freedom to sit, recline, or move about the room while enjoying the full perfor-
mance of this system (Figure 8).
Figure 8
System placement for ideal
coverage
CAUTION:
Be sure to read the section on making connections before you plug in the system.
Right
Left
Left
Right
AM267190_00_V_pdf • July 24, 2002
