Braun Century NCL Series User Manual

Page 7

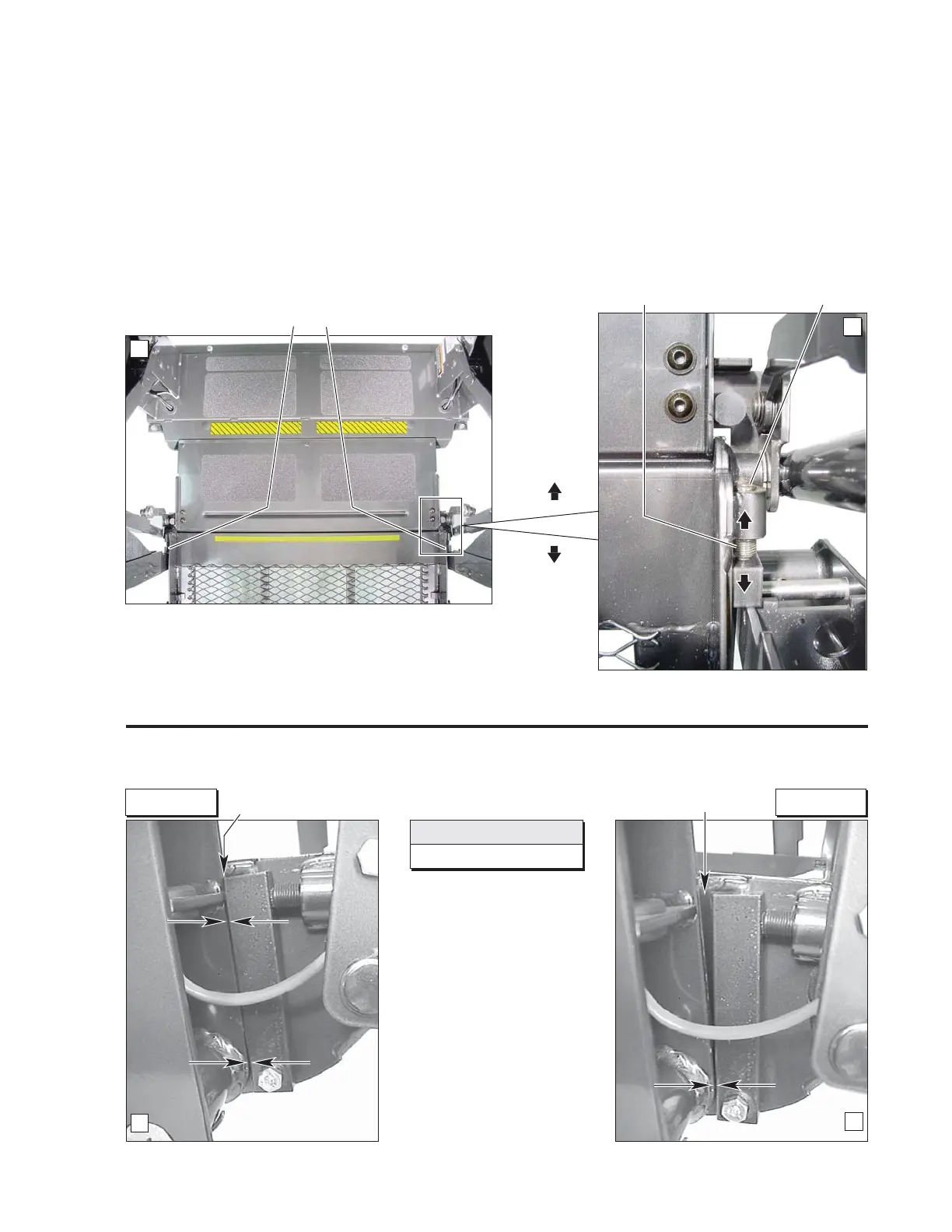

Platform Angle
Adjustment Screws
Adjustment Screw Allen Head
A
B
Platform Angle Adjustment
Adjustment Allen screws are
provided on each side of the lift
platform for adjusting the platform
angle. Adjust platform angle as
specified on previous page.
Platform Stop Blocks
Must make full contact.Gap not permitted.
Both stop blocks must
make full contact with
the edge of vertical arms.
C
D
Stop Block Guideline
All Lift Models
Right Wrong
Turn
clockwise
to raise
outboard
end of
platform
When adjusting platform
angle, setting floor level
position or adjusting
bridging microswitch -
ensure both stop blocks
are making full contact
with the vertical arms.
Stop
Block
Vertical
Arm
Stop
Block
Vertical
Arm
Turn
counter-
clockwise
to lower
outboard
end of
platform
To raise the outboard end
of platform - turn adjustment
screw clockwise.
To lower the outboard end
of platform - turn adjustment
screw counterclockwise.
Note: Both adjustment screws
must be adjusted equally.
Apply Loctite
®
to adjustment
screws following adjustment.
