Page 18

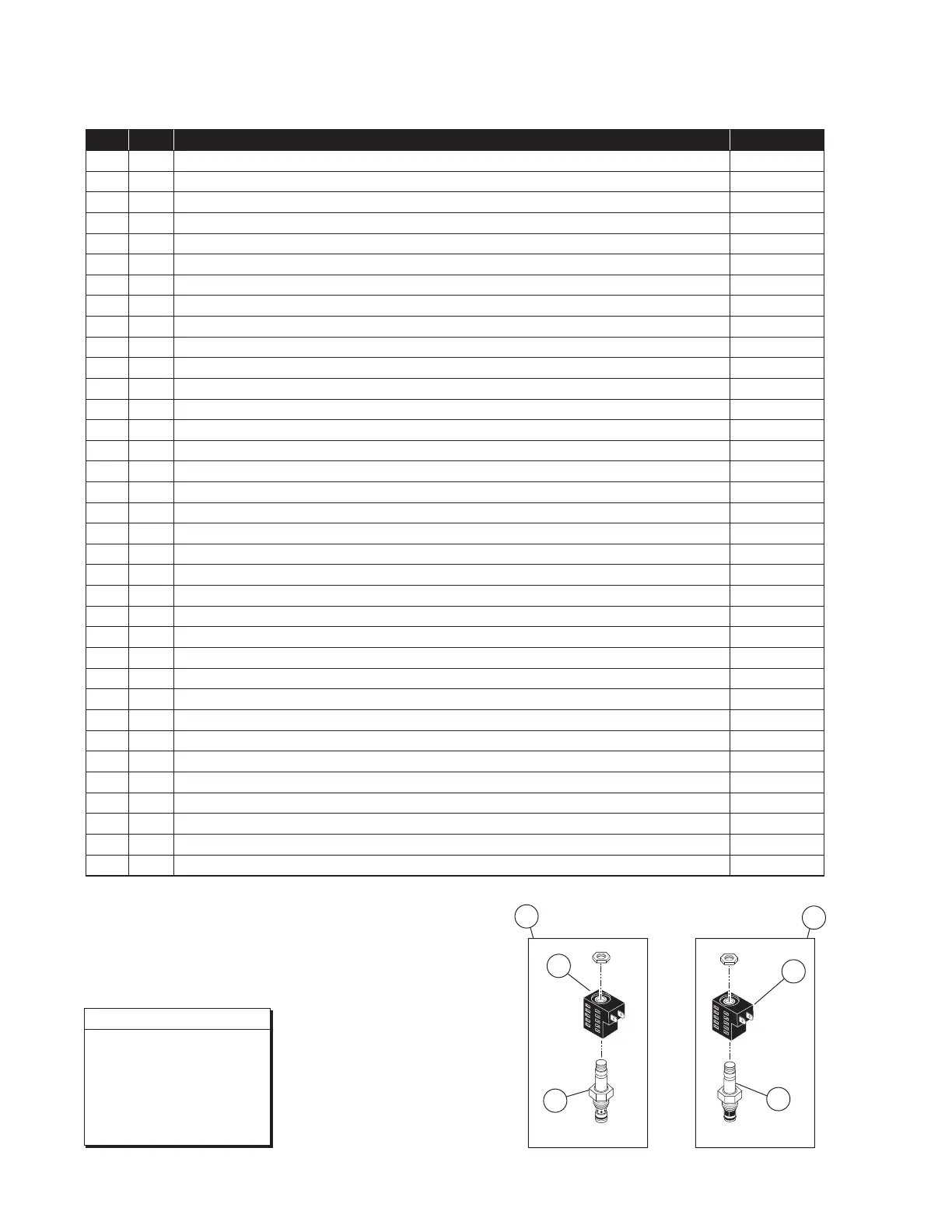

Hydraulics Parts List
Item Qty. Description Part #
1 1 Pump Assembly (M-268-0114) 120G / 12V / Dual Relief 32858-12V
2 1 Solenoid, 4-Post Trombetta - Angle 35310
3 1 Motor, Pump - 12 Volt - Low RPM 29690
4 1 Valve Assembly, “Dual Relief" (complete) 31120K
5 1 Cartridge (only), “Dual Relief" Valve - (shown below) 31121
6 2 Coil (only) - (shown below) 31122
7 1 Valve Assembly, “Down” (complete) 31348K
8 1 Cartridge (only), “Down” Valve - (shown below) 26078
9 3 Screw, 1/4-20 x 2-1/4", Allen Head 26080
10 1 Hand Pump (Backup) with O-Rings (Item 11) 26074
11 4 O-Ring (only), Hand Pump Mounting 17351
12 1 Clamp, Reservoir - H-48 (M259) 17069
13 1 Reservoir, Hydraulic Fluid 30160
14 1 Cap, Reservoir Filler - Screw On 30167
15 1
Fitting, 90° - 1/8" NPT x 1/8" Barb - Plastic 87563
16 1 Clamp, Hose - Solenoid Mounting 29663
17 1 Hose, Thermal Plastic - Black, 1/8" I.D.
23742R* (6")
18 1 Handle with Grip 17206A
19 1 Fitting, Male 7-16-20 SAE O-Ring to Male 7/16-20 JIC 37° 24504
20 1 Elbow, 7/16-20 JIC 37 Female Swivel (1) - 7/16-20 JIC 37° Male (2) 26579
21 1 Hose Assembly, 1/8" (Opposite-Pump-Side) 16004A-086
22 1 Hose Assembly, 1/8" (Pump-Side) 16004A-046
(OERZ6$(25LQJ0DOH-,&0DOH2ULÀFH
24 2 Cylinder
C1514.30408N
25 2 Elbow, 90°, 1/4 NPT Male to 1/4" Barbed 15150
26 1 Hose, Thermal Plastic - Black, 1/8" I.D.
23742R* (68")
27 1 Hose, Thermal Plastic - Black, 1/8" I.D.
23742R* (30")
28 1
Diode Assembly, Up Solenoid 73906A
29 1 Kit, Hydraulic Port Service Cap 27049K
30 1 Connector, Plastic “Y”, 1/8” O.D. 18877
Seal Kits: If repairing a cylinder, order Seal Kit #1500-0500P.
5DZPDWHULDOLWHPVRUGHUHGDQGSULFHGSHULQFKRUGHUVSHFLÀHGOHQJWK
5
Cartridge
#31121
6
Coil
#31122
“Dual Relief” Valve
(complete)
4
8
Cartridge
#26078
6
Coil
#31122
“Down” Valve
(complete)
7
Hydraulic Fluid
When adding or changing
K\GUDXOLFÁXLGXVH%UDXQ
32840-QT (Exxon
®
Univis
+9,K\GUDXOLFÁXLGGR
not mix with Dextron III or
RWKHUK\GUDXOLFÁXLGV
