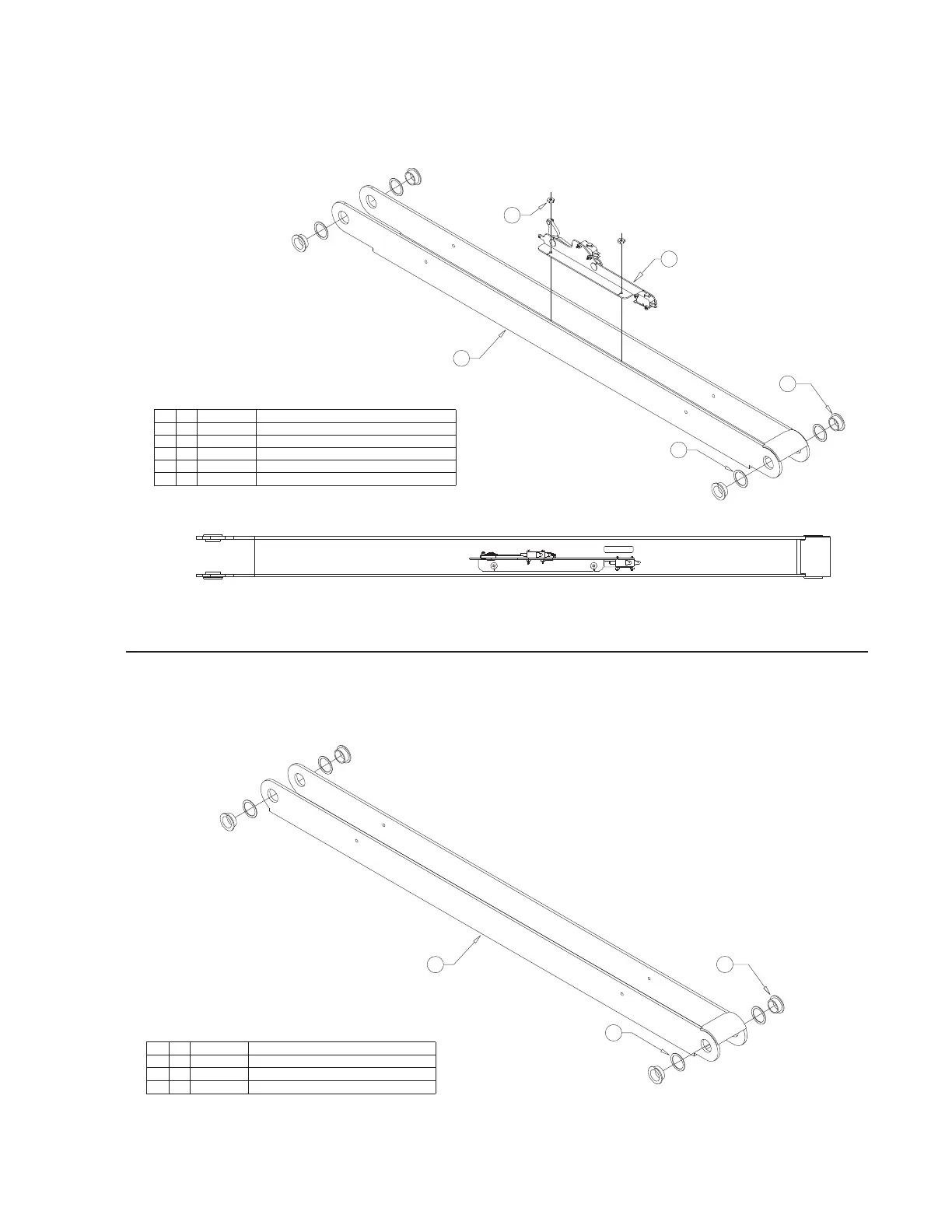

Exploded Views and Parts Lists
Bottom Parallel Arm Assembly - Rear
Bottom Parallel Arm Assembly - Front
1
2
3
ARM-PARALLEL/BOTTOM (Incl. Items 1-3)1
DESCRIPTIONQTY.ITEM PART NO.
945-3412NA1
2 BEARING-FLANGE-3/4" X 3/8"-12FDU064 24011
WASHER-0.906"ID X 1.25"OD X .075"TH/ZINC3 343984
1
2
3
5
4
WASHER-0.906"ID X 1.25"OD X .075"TH/ZINC343984
ARM-PARALLEL/BOTTOM-SWITCH (Incl. Items 1-3)
BEARING-FLANGE-3/4" X 3/8"-12FDU06
ASSY-IB OCCUPIED4
3
2
1
32514NA
1
945-3458NKS
240114
1
ITEM
PART NO .
QTY.
DESCRIPTION
NUT-#10-32 W/LOCKWASHER/AUTO-BK5 183492
