System Control Panel

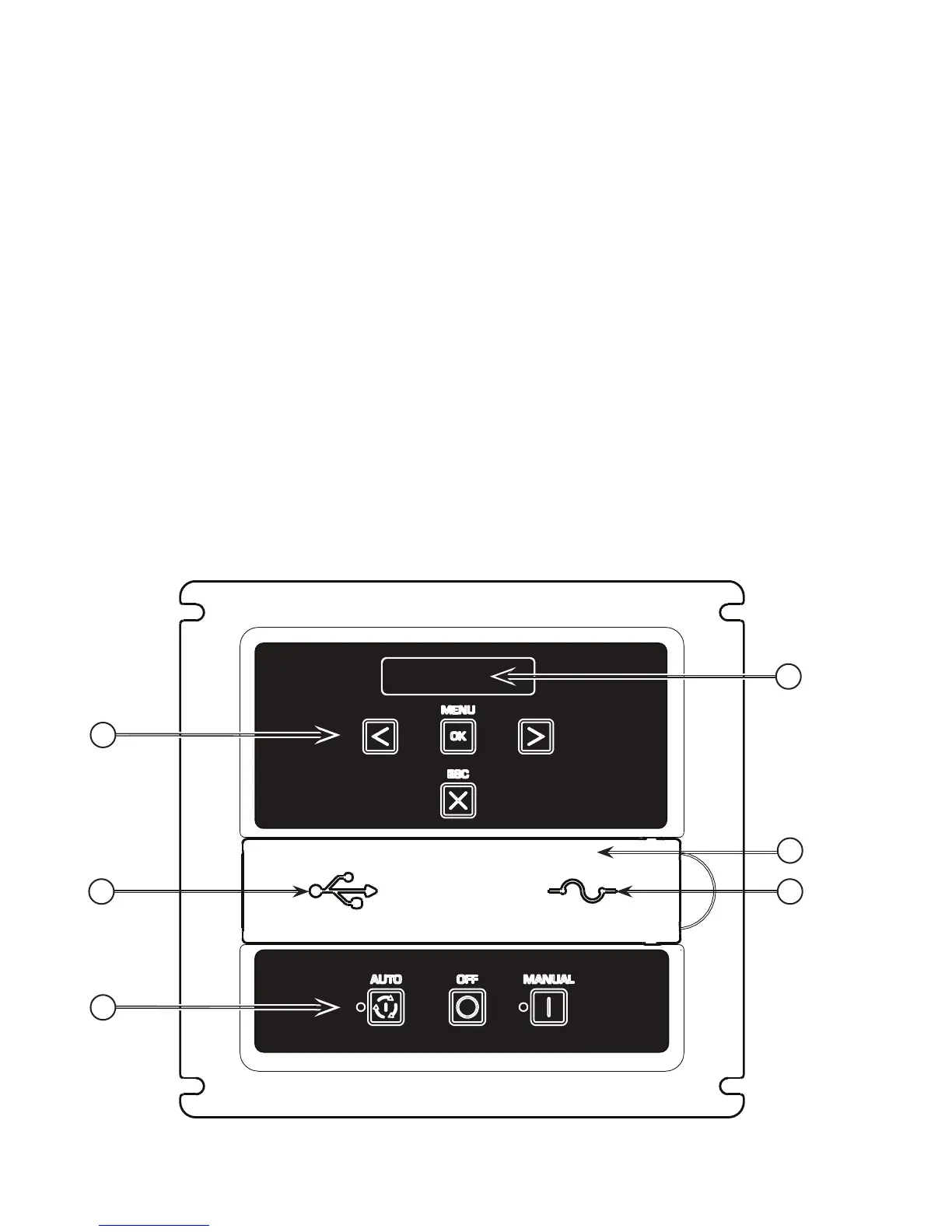

The generator control panel, located inside the generator
housing, is shown below.
Brief descriptions of the controls used during installation are:
The generator control board, located inside the generator,
under the roof, is shown below. Brief descriptions of the
controls used during installation are:
A - Menu/Programming Navigation Buttons — See Menu
section for details
B - USB Port — Authorized Dealer Service Use Only
C - Generator Operation Control Buttons —
tiAUTOwNormal operating position. Press and hold
button to put unit into Automatic mode. If an utility
power outage is sensed, the system will start the
generator. When utility power is restored, auto lets the
engine stabilize internal temperatures, shuts off the
generator, and waits for the next utility outage.
tiOFFwTurns off running generator, prevents unit from
starting, and resets any detected faults.
OFF must be pressed and held for more than 5 seconds
in order to reset service codes.
tiMANUALwUsed to manually start the generator.
“AUTO” LED — LED will light when unit is placed into
Auto mode. LED will blink if exercise cycle is not set or
set to OFF.
D – 15 Amp Fuse — Protects the home generator DC
control circuits. If the fuse has ‘blown’ (melted open) or
was removed, the engine cannot crank or start. Replace
the fuse using only an identical ATO 15A fuse. One
spare fuse is supplied with the unit.
E - Cover — This protective cover must be opened to access
the fuse and the USB port.
F - Digital Display — Displays generator mode, menu
options, service codes, and service engine indicators
More information may be found in Controls in the
operator’s manual.
A
B
C
F
E
D
