Brother FS-40 User Manual

2 - 23
Needle bar, presser mechanism / Upper shaft mechanism
Basics of Assembly
Basics

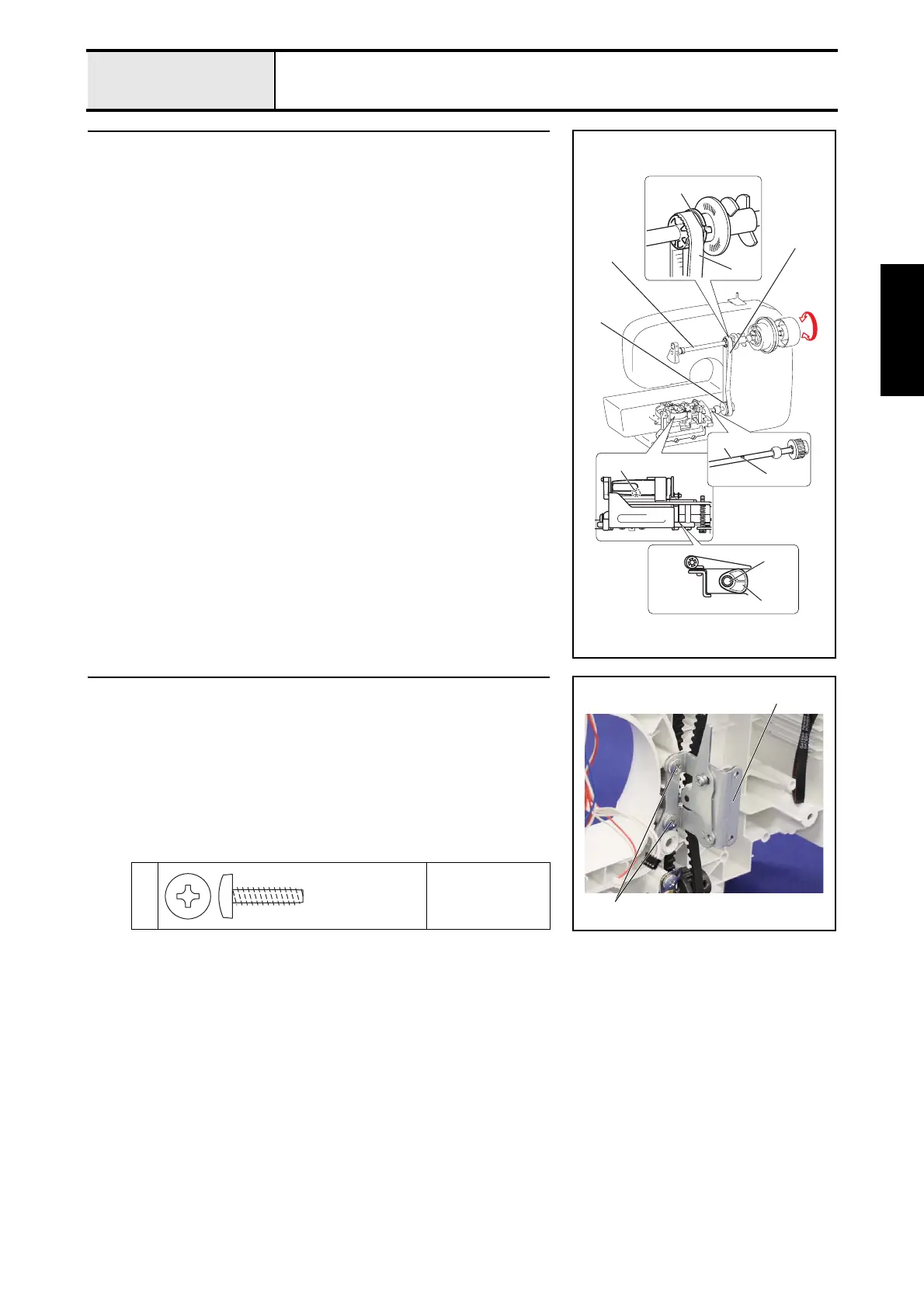

3 Phase matching of Upper shaft and lower shaft
1. Rotate the upper shaft 1 until the trench on the upper shaft pulley 2 is at
the front.
2. Turn the lower shaft 3 to the point where the mark on the outer rotary
hook 4 is at the front, the larger feed cam 5 is at the rear, and the hole on
the lower shaft 6 is at the vertical.
3. Pull the timing belt 7 and hang it on the timing pulley D 8.
1
7
8
4
6
3
5
3
7
2
Front Rear
4 Attachment of Tension pulley assy
1. Set the tension pulley assy. 1 to the rear cover assy., and then temporarily
tighten the 2 screws 1.
*Key point
• Fully tighten the screw 1 after performing "4 - 4 Adjustment :
Timing belt tension".
→ Refer to 3 - 63 "Assembly of Tension pulley assy".
1
Torque
1.18 – 1.57 N·m
1
1
Giza Tite
M5X16

Brother FS-40 Specifications

General

Stitch Number	40
Buttonhole Styles	5
Display	LCD
Lighting	LED
Type	Electronic
Needle Threading	Automatic
Adjustable Stitch Length	Yes
Adjustable Stitch Width	Yes
Maximum Stitch Width	5 mm
Maximum Stitch Length	4 mm
Reverse Sewing	Yes
Free Arm	Yes
Start/Stop Button	Yes
Speed Control	Yes
Bobbin	Top-loading
Sewing Speed	750 stitches per minute
