Brother FS-40 User Manual

2 - 28
Basics of Assembly
Electrical parts and motors

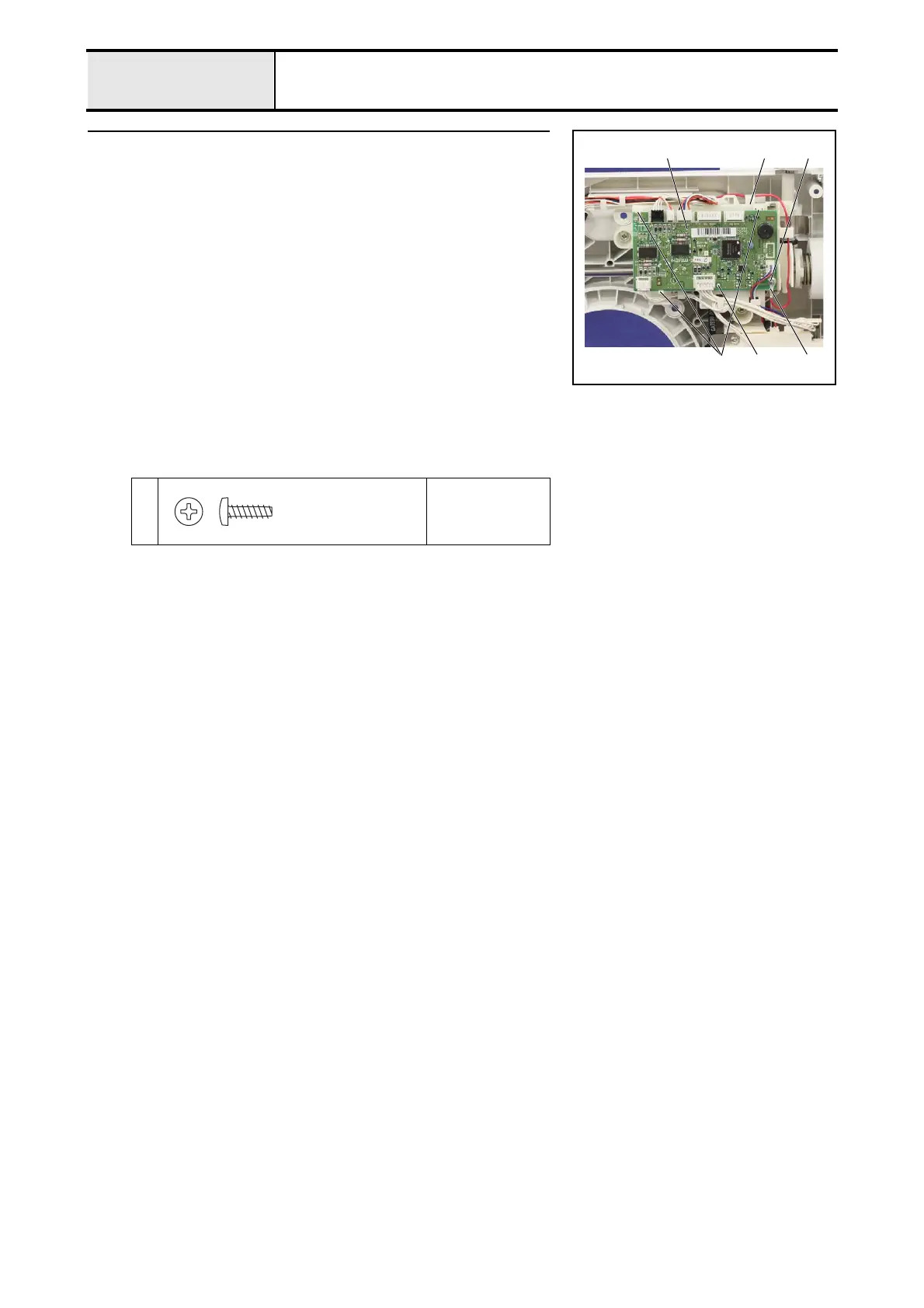

7 Attachment of Main PCB assy
1. Set the main PCB assy. 1 to the shutter cover 2, and then hang on the 3
hooks 3.
*Key point
• Check that the boss of the shutter cover 2 engaged with the
positioning hole of the main PCB assy. 1. (A)
2. Hang the each lead wire on the guide part of the shutter cover 2, and then
connect the each connector to the main PCB assy 1.
*Key point
• Refer to "Special Instructions of Wiring".
3. Secure the lead wire assy: ground 4 and the main PCB assy. 1 to the
shutter cover 2 with the screw 1.
*Key point
• Refer to "Special Instructions of Wiring".
• Check that the bobbin winder switch of the back side of the
main PCB assy. moves surely when the bobbin winder is
switched.
1
Torque
0.39 – 0.78 N·m
3
1
4
1 2
(A)
Taptite, Bind B
M3X10

Brother FS-40 Specifications

General

Stitch Number	40
Buttonhole Styles	5
Display	LCD
Lighting	LED
Type	Electronic
Needle Threading	Automatic
Adjustable Stitch Length	Yes
Adjustable Stitch Width	Yes
Maximum Stitch Width	5 mm
Maximum Stitch Length	4 mm
Reverse Sewing	Yes
Free Arm	Yes
Start/Stop Button	Yes
Speed Control	Yes
Bobbin	Top-loading
Sewing Speed	750 stitches per minute
