Brother HL-5470DW User Manual

31
Driver and Software
2
Advanced tab 2

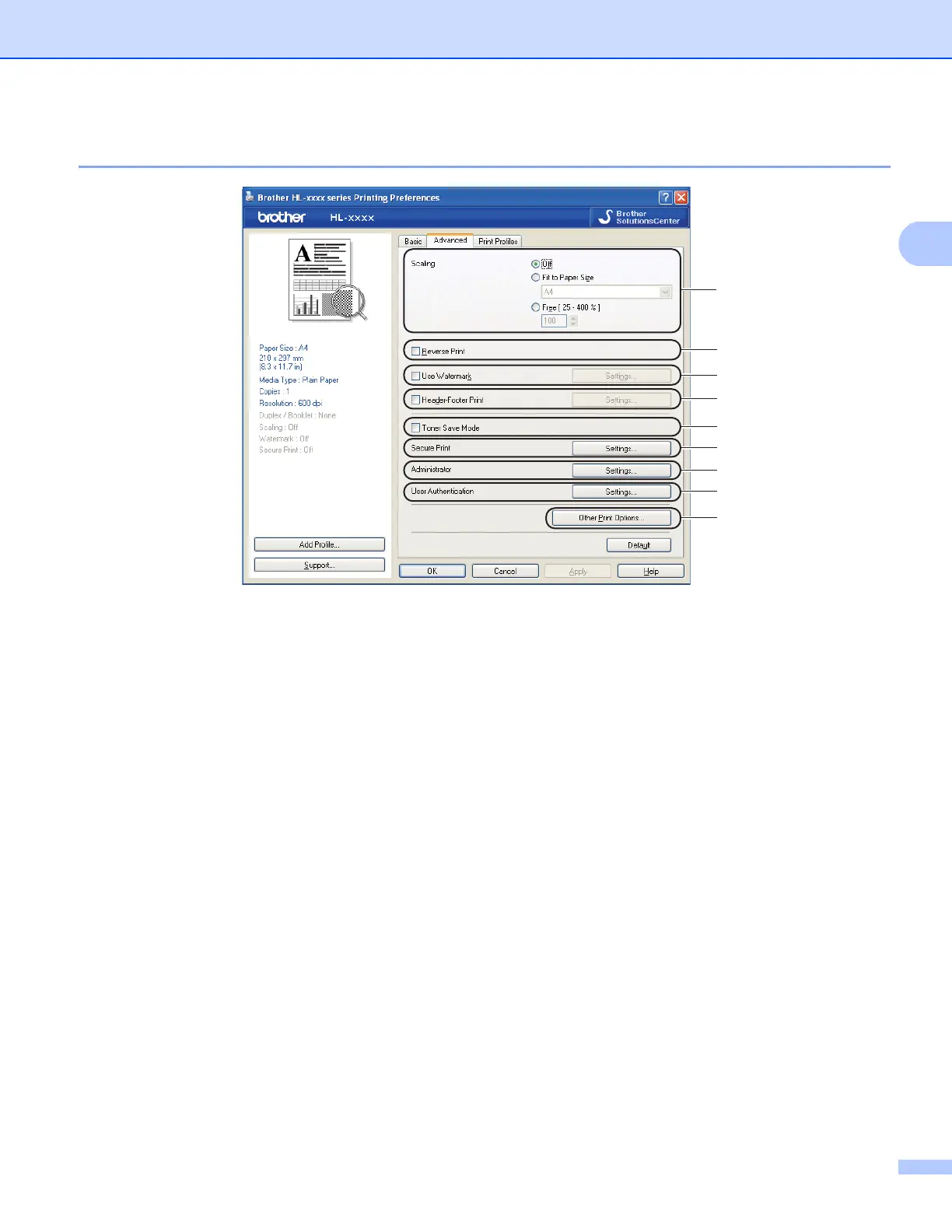

Change the tab settings by clicking one of the following selections:
 Scaling (1)
 Reverse Print (2)
 Use Watermark (3)
 Header-Footer Print (4)
 Toner Save Mode (5)
 Secure Print (6)
 Administrator (7)
 User Authentication (8)
 Other Print Options (9)
Scaling 2
You can change the print image scaling.
Reverse Print 2
Check Reverse Print to reverse the data from up to down.
1
2
3
4
5
6
7
8
9
