BOAT RIGGING
BATTERY INSTALLATION
1

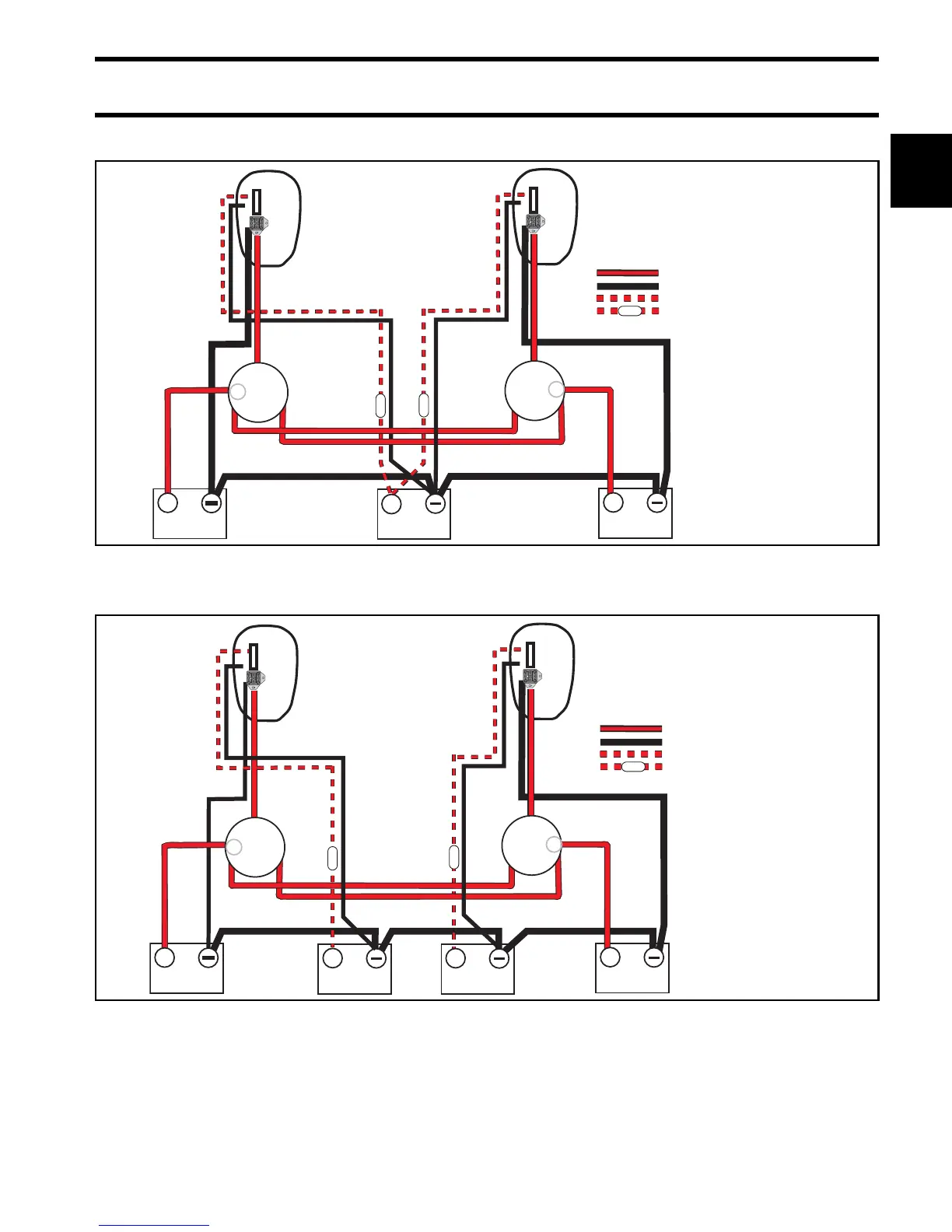

Two outboards: One primary battery each; one isolated accessory battery
Two outboards: One primary battery each; two isolated accessory batteries
ACCESSORY
PRIMARY
#1
PRIMARY
#2
S
S
+
+
+
1
2
OFF
BOTH
1
2
OFF
BOTH
#1
#2
Positive (+) Battery Cable
Negative (–) Battery Cable
Accessory charge wire (V models)
50 amp fuse
008053
ACCESSORY
PRIMARY
#1
PRIMARY
#2
#1
#2
S
S
+
+
+
1
2
OFF
BOTH
1
2
OFF
BOTH
ACCESSORY
+
#1
#2
Positive (+) Battery Cable
Negative (–) Battery Cable
Accessory charge wire (V models)
50 amp fuse
008054
