70
OUTBOARD RIGGING
EVINRUDE E-TEC MODELS 40–90 HP

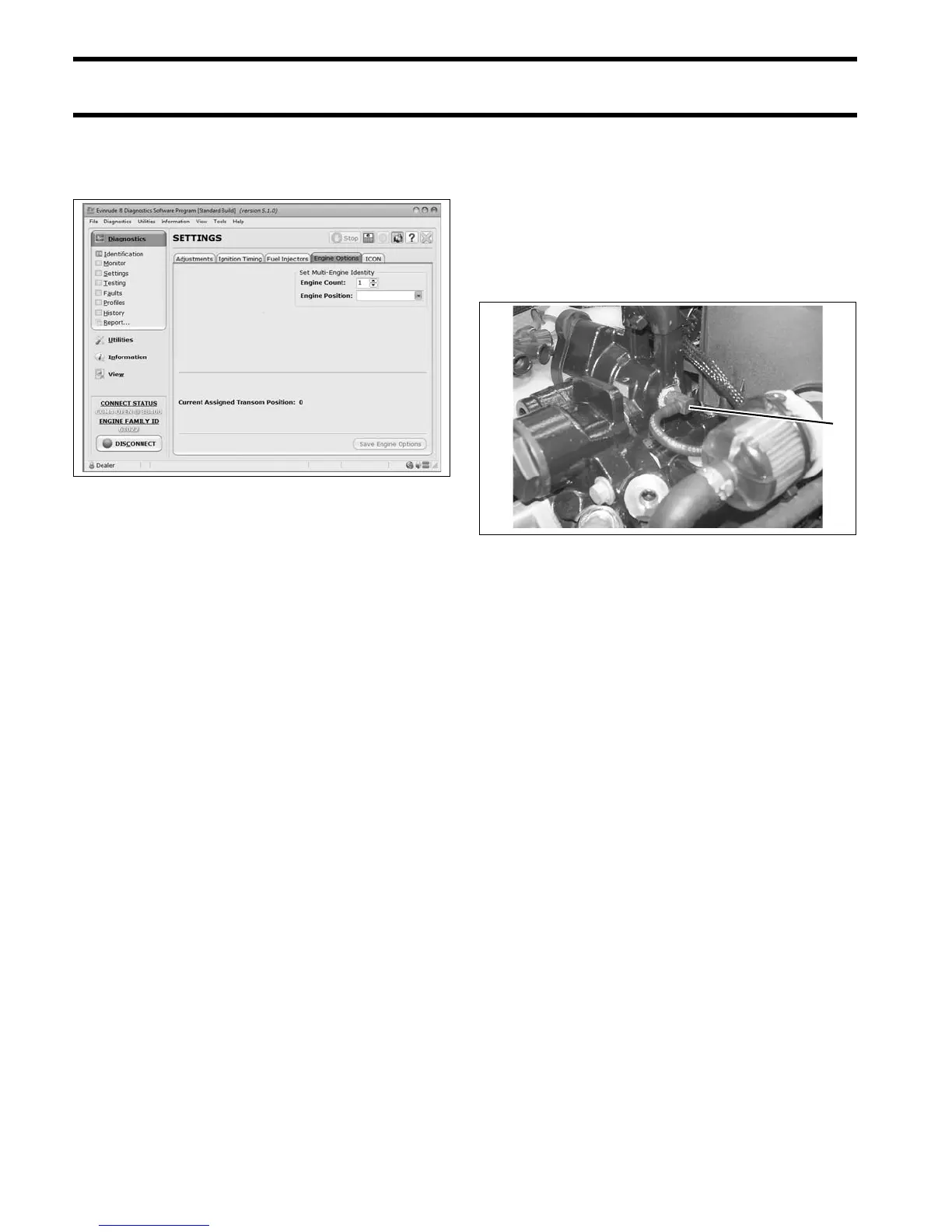

Use Evinrude Diagnostics software to adjust net-
work settings in the EMM. From the Settings
screen, select Engine Options.
Water Pressure Gauge
To display engine water pressure, install a water
pressure hose fitting in the cylinder block as
shown.
Use Pipe Sealant with Teflon on the threads of the
hose fitting. Refer to installation instructions sup-
plied with gauge.
For an I-Command water pressure display, sev-
eral water pressure sensor kits are available.
Refer to the Evinrude/Johnson Genuine Parts
and Accessories catalog.
Engine Options Screen 008563A
1. Fitting 002461
