LIMIT THERMOSTAT
TRIAC
TANK HEATER
SOL
SOL
SOL
SOL
BREW
BYPASS
REFILL
WHI
WHI
MT 1 BLU -14
BLK-14
BLK-14
RED
N.C.
RED
OVERFLOW
PROTECTION SWITCH
FUNNEL LOCK
(OPTIONAL)
+
–
AC
AC
RECTIFIER
4
AMP
24VDC
+
–
BLK
BLU/BLK
BLK
BLU/BLK
RED
230 VOLT AC
2 WIRE
SINGLE PHASE
50HZ
32043.0001B 07/05 © 2002 BUNN-O-MATIC CORPORATION
MT2
SERVER
TRANSFORMER
BRN/BLK
BRN/WHI
BLK
YEL
TAN
WHI/VIO
GRY
WHI/GRN
VIO
THERMAL
SAFETY FUSE
THERMAL
SAFETY FUSE
RED
RED
RED RED
RED
RESETTABLE
FUSE
BLK

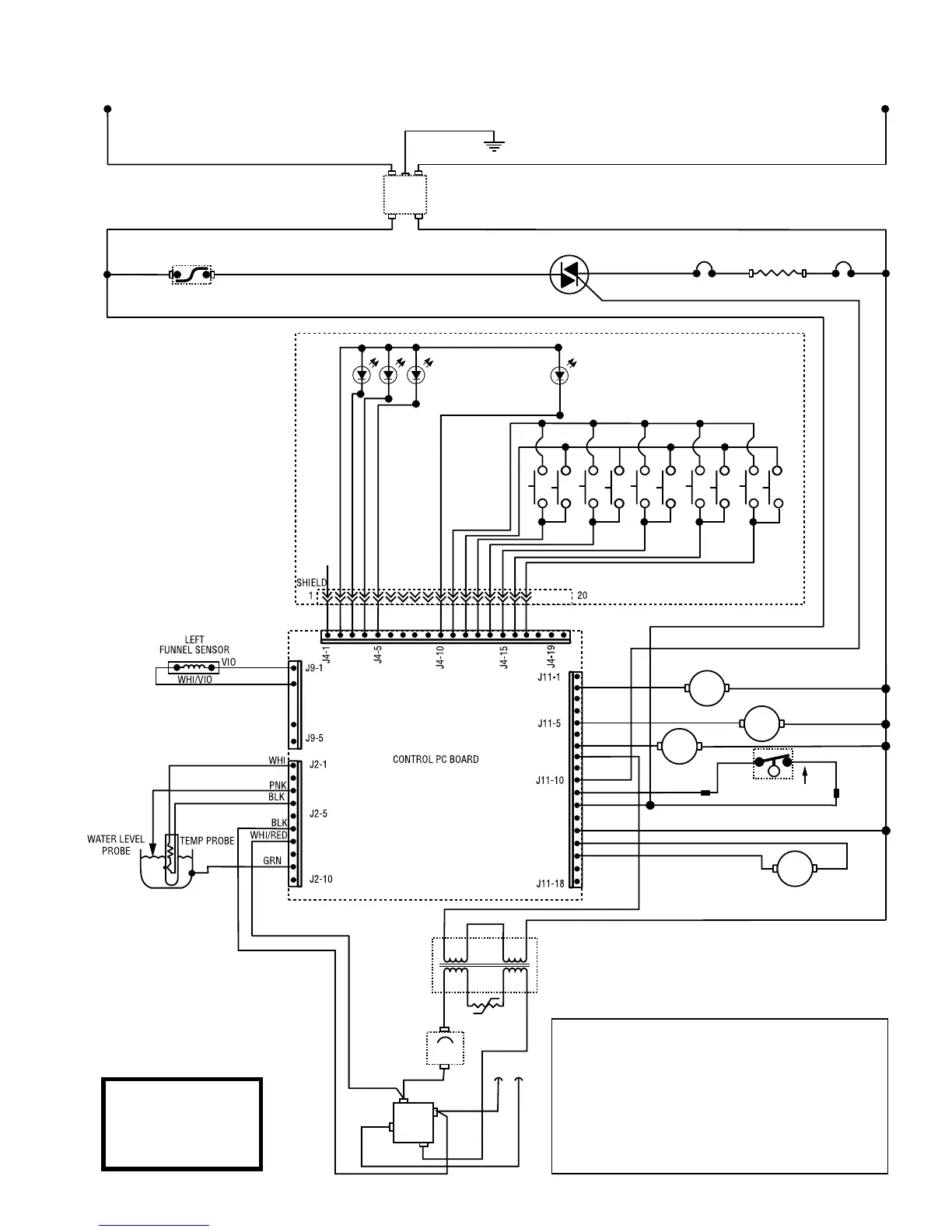

SCHEMATIC WIRING DIAGRAM
SINGLE SH DBC (W/SMART FUNNEL)
L2
L1
RED
RED
EMI
FILTER
GRN/YEL
BLK
BLK
Touch Switch Assembly Codes
A1 Brew
A2 On/Off
B1 "Hidden" Left
B2 "Hidden" Right
C1 Large Batch
C2 Medium Batch
C3 Small Batch
D1 "Digital" Left Hidden Button
D2 "Brewer" Center Hidden Button
D3 "Control" Right Hidden Button
L1 Large Batch LED
L2 Medium Batch LED
L3 Small Batch LED
L4 On/Off LED
LED's
C1 D1 A1 B1 B2 A2 D2 D3 C2 C3
L3
L4 L1 L2
TOUCH SWITCH ASSMBLE
NOT A PURCHASED SCHEMATIC
FOR REFERENCE ONLY
