Canon 40D User Manual

Canon 40D Digital Camera Overview Manual
July 10, 2008 © 2008 Consumer Programs Incorporated Page 19
PROPRIETARY & CONFIDENTIAL

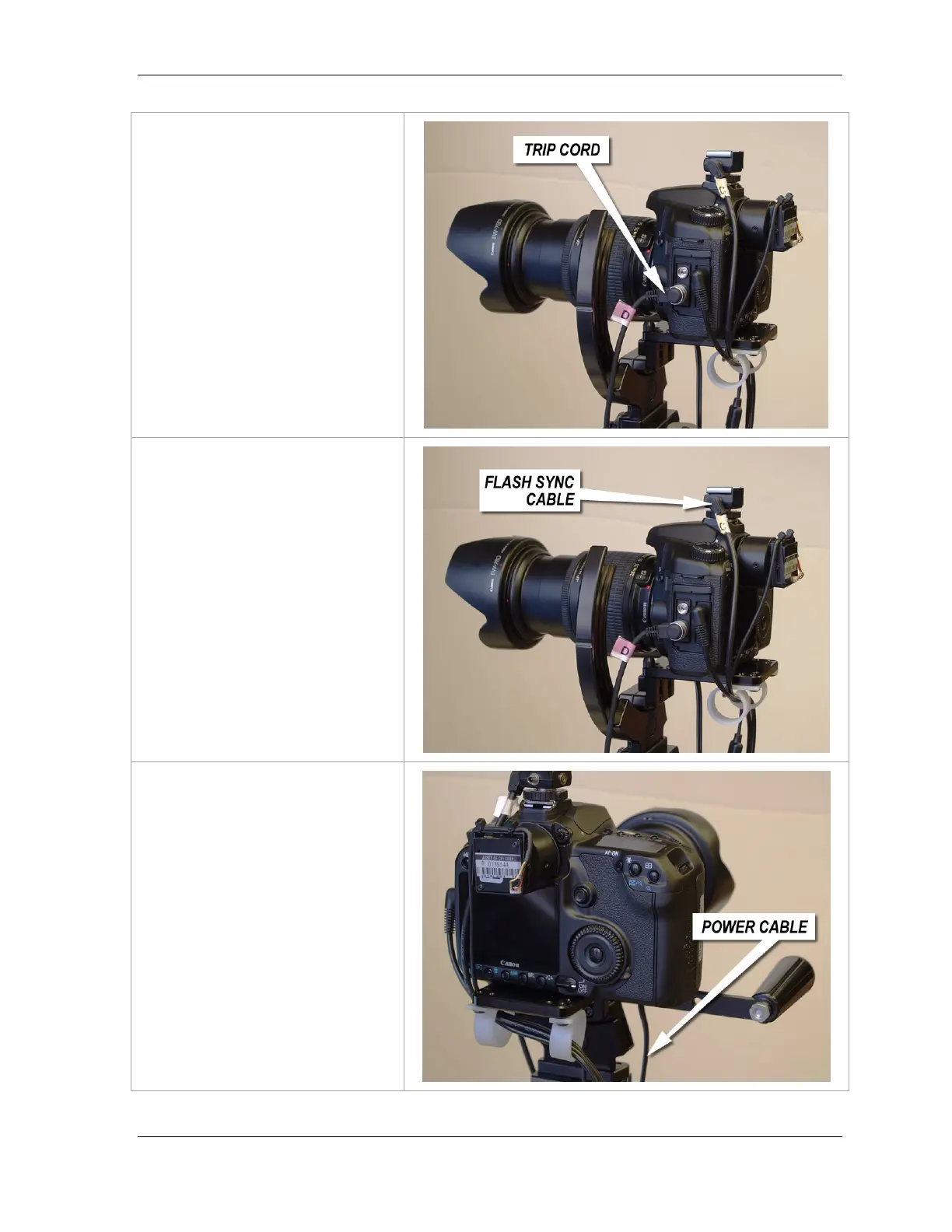

Trip Cord
The Trip Cord sends the signal to
release the shutter and fire the
camera.
The trip cord also connects to the
left side of the camera. The
connection is the bottom left port.
Flash Sync Cable
The Flash Sync Cable carries a
signal from the camera to the flash
power packs.
The Flash Sync Cable attaches to
a device called a Flash Sync
Adapter that is mounted to the top
of the camera.
Power Cable
This cable provides power to the
camera.
The power cable is a battery
transformer that loads into the
battery compartment located on the
bottom of the camera.

Canon 40D Specifications

General

Camera Type	Digital SLR
Sensor	CMOS
Resolution	10.1 Megapixels
ISO Range	100-1600 (expandable to 3200)
Autofocus Points	9
Continuous Shooting Speed	6.5 fps
LCD Screen Size	3.0 inches
Viewfinder	Optical
Battery	BP-511A
Weight	740 g (body only)
Shutter Speed	30-1/8000 sec
Video Recording	No
Sensor Size	22.2 x 14.8 mm
LCD Resolution	230, 000 dots
Viewfinder Coverage	95%
Dimensions	145.5 x 107.8 x 73.5 mm
Storage Type	CompactFlash (CF) card
