Canon imagePROGRAF TA-20 Setup Guide

9
6

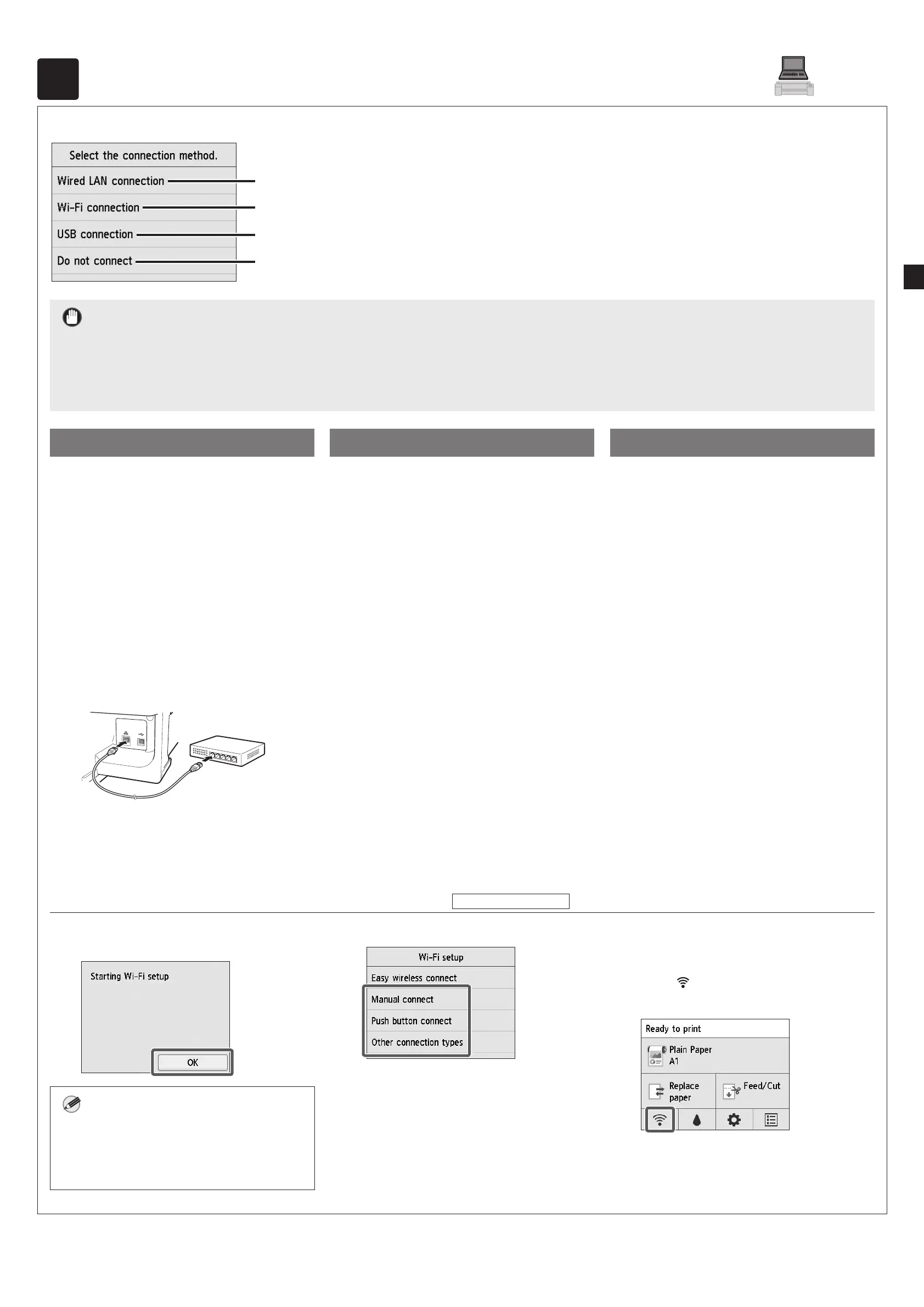

Selecting the Method of Connecting to Your Computer
When something like the following is displayed on the touch screen, select the connection method.
Connect the printer to the network using a LAN cable.
Connect the printer to the network wirelessly without using a LAN cable.
Connect the printer to a computer using a USB cable.
Select this such as when connecting using a fixed IP address. The connection settings and software installation
will need to be performed separately. Start the settings from the touch screen of the printer.
Important
● Initial filling of the ink (approx. 11-12 minutes) and cleaning are performed during this operation, and the remaining ink level is reduced by this operation.
● Since the included starter ink tanks are for initial installation, it is recommended that you purchase replacement ink tanks quickly. Note that 2 MBK ink tanks
are included with this product. A message asking you to install the second MBK ink tank may be displayed after the initial filling. If this happens, remove
the ink tank that you first installed and then install the second ink tank.
Wired LAN connection
1
Select Wired LAN connection.
Check the message about the
connection method and select Yes if
there are no problems.
● Initial filling of the ink starts. Do not
open the covers of the printer or
turn the power off while the ink is
charging.
● A message prompting you to
connect the LAN cable appears.
2
Use the LAN cable to connect the
wired LAN connector on the side of
the printer to the hub port.
3
Select OK and proceed to "Installing
the Software on Your Computer" (p.
10).
Wi-Fi connection
1
Select Wi-Fi connection. Check
the message about the connection
method and select Ye s if there are
no problems.
● Initial filling of the ink starts. Do not
open the covers of the printer or
turn the power off while the ink is
charging.
● A message prompting you to set up
Wi-Fi connection appears.
2
Select Yes and proceed to "Installing
the Software on Your Computer" (p.
10).
● To configure the settings from the
printer, select No and proceed
to "Configuring Wi-Fi Settings on
the Printer Touch Screen" (column
below).
USB connection
1
Select USB connection. Check the
message about the connection
method and select Ye s if there are
no problems.
● Do not connect the USB cable yet.
● Initial filling of the ink starts. Do not
open the covers of the printer or
turn the power off while the ink is
charging.
2
Select OK and proceed to "Installing
the Software on Your Computer" (p.
10).
Conguring Wi-Fi Settings on the Printer Touch Screen
Only for Wi-Fi connection
1
Check that the following screen
appears and select OK.
Note
● If any of Checking the nozzle, Preparing
the ink system, or Cleaning... is displayed,
the printer initial settings are not finished.
Wait until the above screen appears.
2
Select the connection method.
3
Congure the settings by following
the instructions on the screen.
● When the home screen appears
and
(network) appears, the Wi-Fi
settings are complete.
4
Proceed to "Installing the Software
on Your Computer" (p. 10).

Canon imagePROGRAF TA-20 Specifications

General

Package depth	874 mm
Package width	1147 mm
Package height	542 mm
Package weight	49000 g
Cartridge(s) included	Yes
Printing colors	Black, Cyan, Magenta, Pigment matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Page description languages	HP-GL/2, HP-RTL, JPEG
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Media thickness	0.07 - 0.8 mm
Maximum print size	-
Maximum roll width	610 mm
Maximum roll length	18 m
Paper tray media types	Roll
Print margin cut-sheet	210 - 431.8 mm
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	3.6 W
Power consumption (typical)	52 W
Certification	C TUVus, FCC Part 15B, FCC Part 15C
Product color	Black, Silver
Sound power level (standby)	35 dB
Sound pressure level (printing)	42 dB
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	748 mm
Width	982 mm
Height	438 mm
