Canon imagePROGRAF TA-20 Setup Guide

1
Windows is a trademark or registered trademark of Microsoft Corporation in the U.S. and/or other countries.
Overview of Setup Conrming the Installation Space
The illustrations in this manual using the TA-30 as an example for explanation. Note that your printer may look different from these illustrations
in some cases.
The specifications and appearance of this product are subject to change without notice.
Set up the printer using the following procedure. Note that if an error
message appears during setup or other problems occur, refer to "Responding
to Messages" on p.11.
1
Assembling the Printer Stand
Page 3
2
Installing the Printer
Page 3
3
Turning On the Printer
Page 5
4
Installing the Ink Tanks
Page 6
5
Installing the Print Head
Page 7
6
Selecting the Method of Connecting
to Your Computer
Page 9
7
Installing the Software on Your
Computer
Page 10
Loading Paper Page 11
For Best Print Quality
Page 11
Printing From a Smartphone or Tablet
Page 11
Displaying the Online Manual
Page 11
Responding to Messages
Page 11

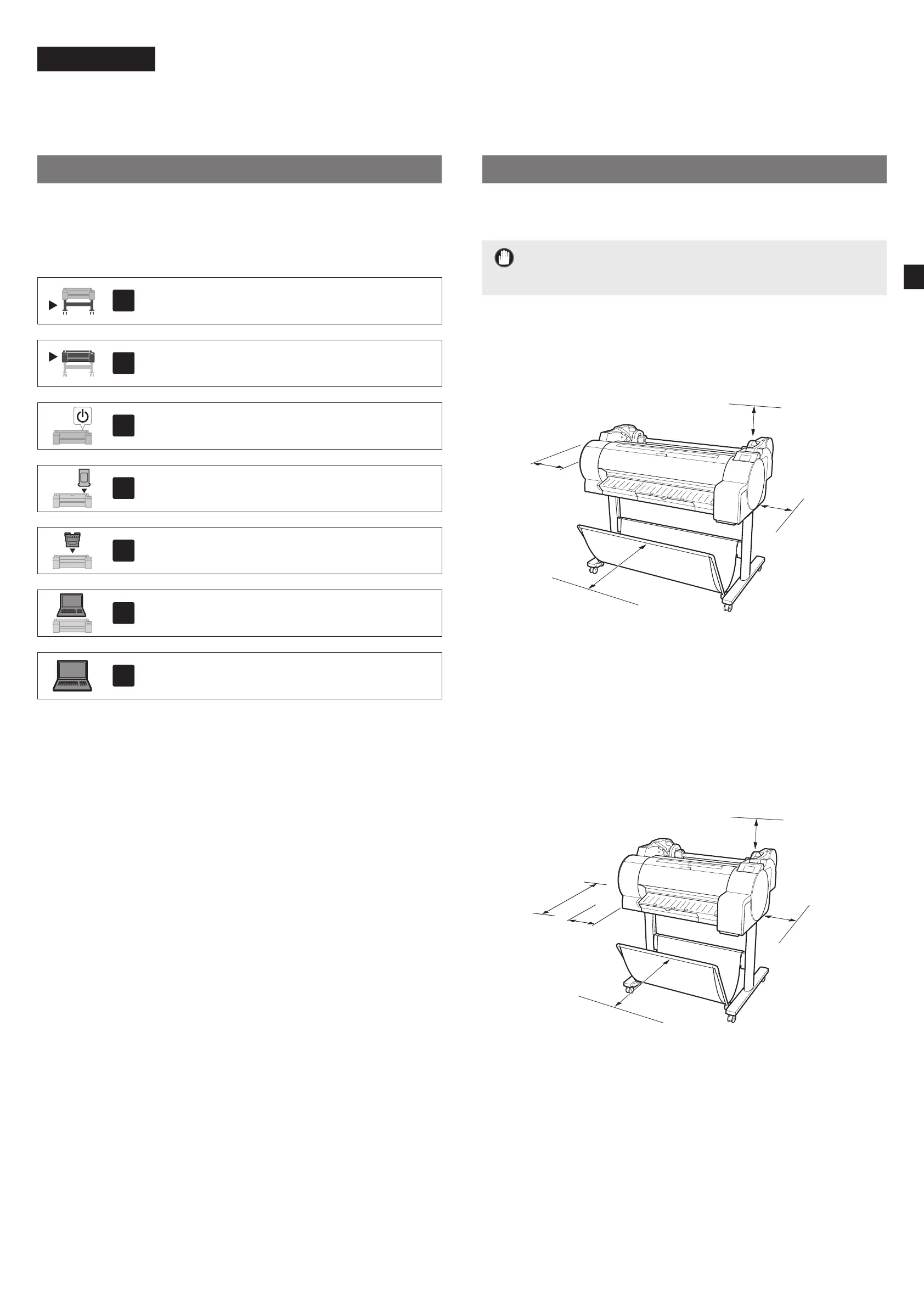

When installing the printer, it is recommended that you secure the following
space around the printer.
Important
● The printer stand may not be included with the model you purchased.
■ TA-30
Required space* (W x D x H)
66.5 x 57.9 x 53.6 inches
1689 x 1470 x 1359 mm
7.9 inches
(200 mm)
23.6 inches
(600 mm)*
7.9 inches
(200 mm)
11.8 inches
(300 mm)
* When using the SD-33 printer stand
■ TA-20
Required space*** (W x D x H)
54.5 x 53.1 x 29.1 inches
1382 x 1348 x 738 mm
Required space** (W x D x H)
54.5 x 57.9 x 53.6 inches
1382 x 1470 x 1359 mm
7.9 inches
(200 mm)
7.9 inches
(200 mm)
11.8 inches
(300 mm)
23.6 inches
(600 mm)**
23.6 inches
(600 mm)***
** When using the SD-24 printer stand
*** When not using the printer stand
ENGLISH

Canon imagePROGRAF TA-20 Specifications

General

Package depth	874 mm
Package width	1147 mm
Package height	542 mm
Package weight	49000 g
Cartridge(s) included	Yes
Printing colors	Black, Cyan, Magenta, Pigment matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Page description languages	HP-GL/2, HP-RTL, JPEG
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Media thickness	0.07 - 0.8 mm
Maximum print size	-
Maximum roll width	610 mm
Maximum roll length	18 m
Paper tray media types	Roll
Print margin cut-sheet	210 - 431.8 mm
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	3.6 W
Power consumption (typical)	52 W
Certification	C TUVus, FCC Part 15B, FCC Part 15C
Product color	Black, Silver
Sound power level (standby)	35 dB
Sound pressure level (printing)	42 dB
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	748 mm
Width	982 mm
Height	438 mm
