PACKAGING CONTENT
Carefully unpack the Sound L and check that the delivery content is
complete and undamaged. If any part is damaged, do not use it, but contact
our service department (see back cover). Please keep the packaging during
the warranty period.
Delivery content:
1x Sound L
1x Smart-remote
1x Power cord
1x HDMI
®
cable (3m)
1x Optical digital audio cable (1,5m)
1x Coaxial digital audio cable (1,5m)
1x Analog stereo audio cable (1,5m)
1x Short manual
SETUP
Place the Sound L in the desired location and connect it to the power outlet
using the power cord. To connect the Sound L to your TV or other devices,
please make sure that they are connected to the mains supply.
1
HDMI
OUT / ARC / [TV] (Supports ARC, 3D, 4k, HDR, HDCP 2.2, CEC)
For the connection to the HDMI
®
(ARC) input on your TV.
2
HDMI 1–3 / HD1/[BDP], HD2/[SAT], HD3/[PS] (Supports 3D, 4K, HDR,
HDCP 2.2, CEC)
For the connection to the HDMI
®
output on your digital devices.
3
OPTICAL / OPT / [CD]
For the connecting to the optical audio output on your TV or digital
device (TOSLINK, max. 96kHz/24bit)
4
SERVICE
For USB firmware updates and service purposes, only! No charging
functionality, no audio or video playback.
5
SUB OUT
For the connection to an optional powered subwoofer (RCA, max. 2Vrms)
6
COAXIAL / COX / [DVD]
For the connection to the digital coaxial audio output on your TV or digital
device (RCA, max. 96kHz/24bit)
7
AUX LEFT + RIGHT / LIN / [AUX]
For the stereo connection to the analog line output on your playback
device (RCA, max. 2Vrms)
8
POWER INPUT
For connection to the mains supply (IEC C8)

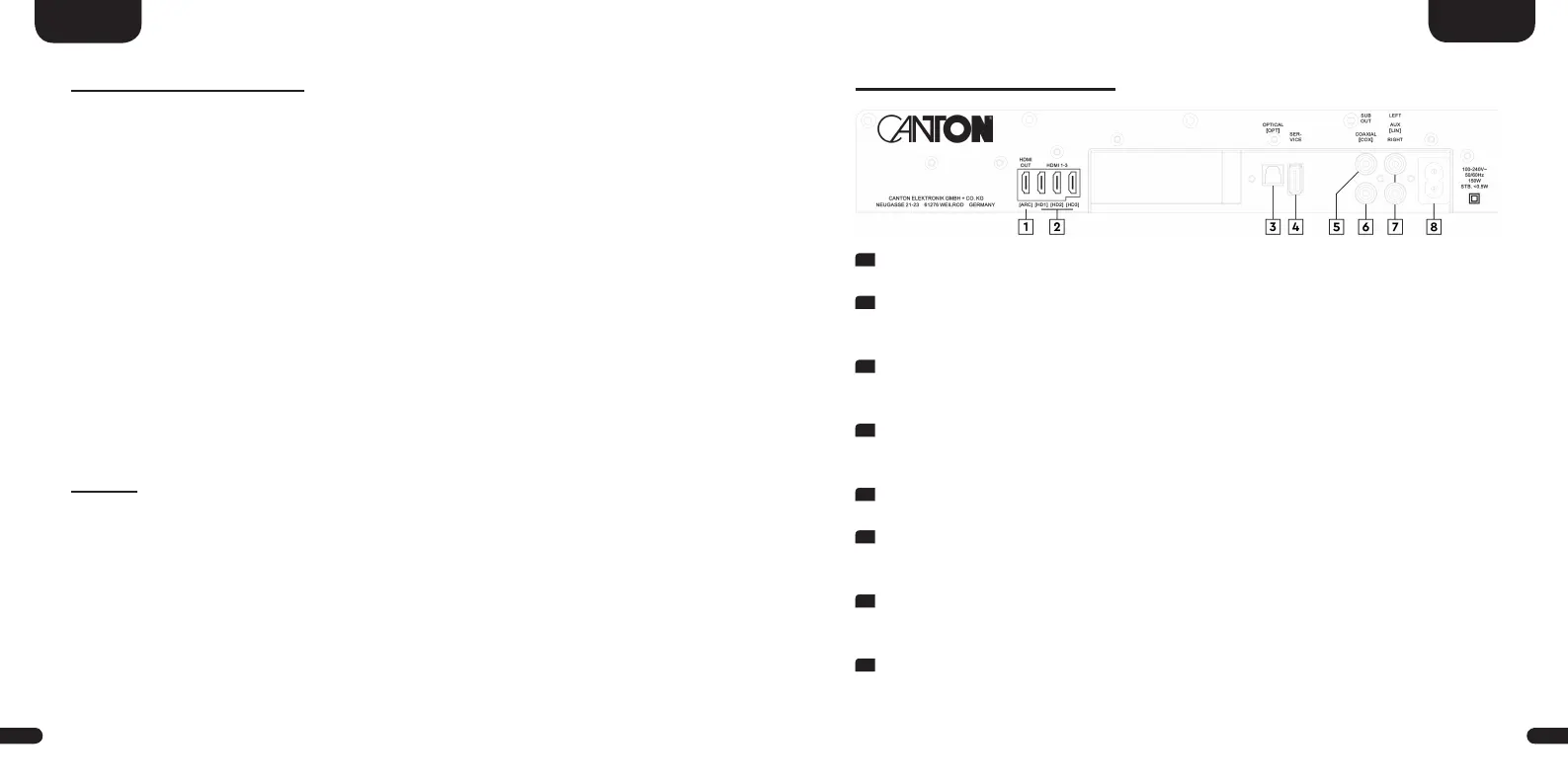

CONNECTION TERMINAL (Back side)
