10
+050001041 rel. 2.2 - 13.10.2008

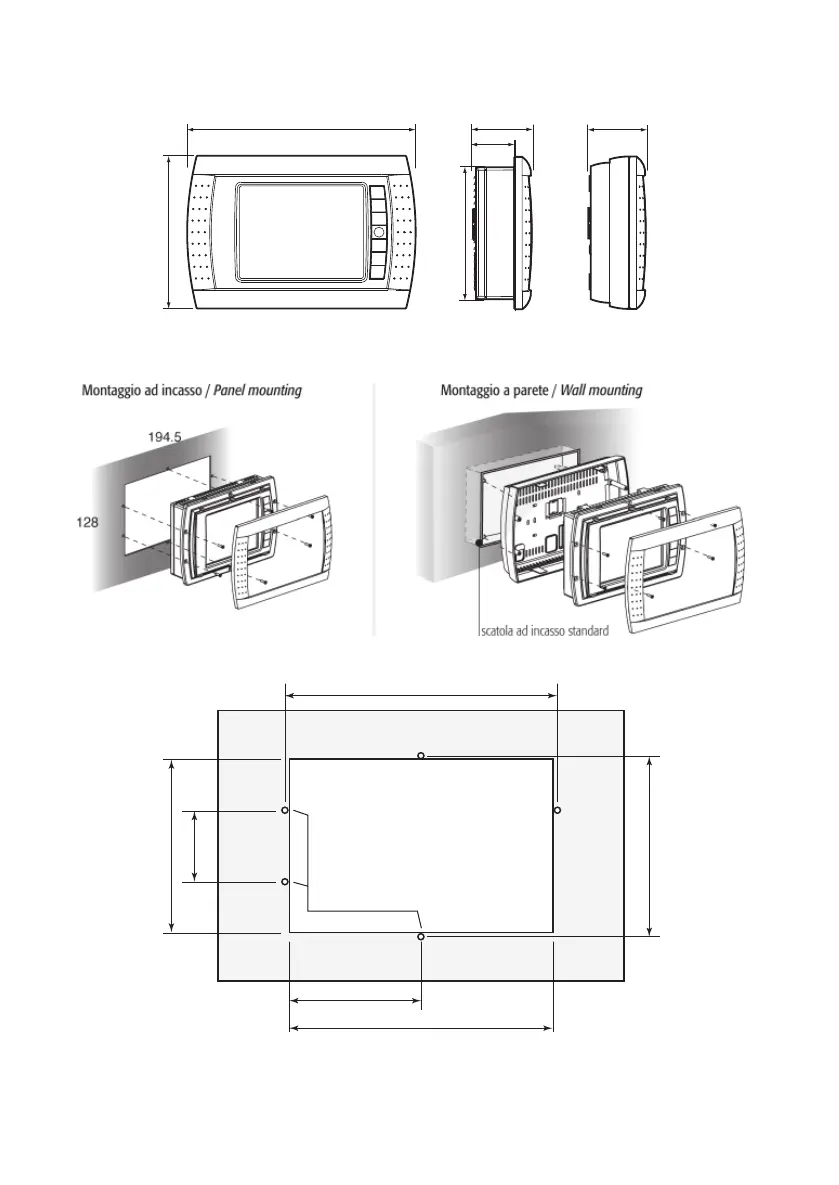

Installation and mounting
221
40.5
58
56.3
148
127.5
Montaggio ad incasso
Panel mounting
Montaggio a aparete
Wall mounting
Fig. 1
Fig. 2 Fig. 3
97,25
53
128
133,7
194,5
201,5
∅ 4 mm
dima di foratura
drilling template
Fig. 4
