Compressor Fits and Clearances — Service and
repair of Carrier centrifugal compressors should be per-
formed only by fully trained and qualified service personnel.
The information in this section is included as a reference for
such personnel only.
SEE VIEW BSEE VIEW ASEE VIEW C
DIM. (SEE TABLE 17 TABULATION)
VIEW A VIEW B
NOTE: See Table 17 for dimensions.

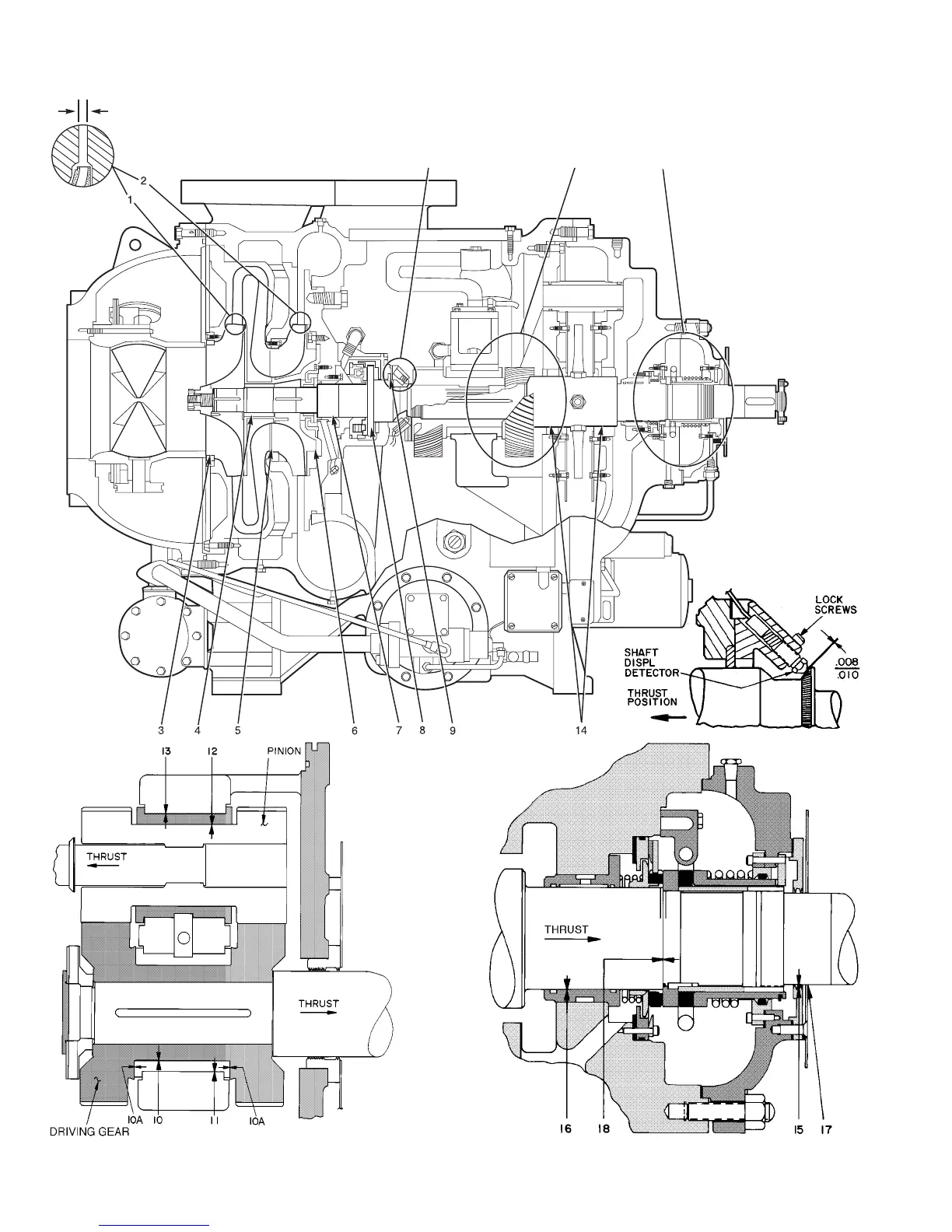

Fig. 55 — Open-Drive Compressor Fits and Clearances
