Carrier 30GN User Manual

17

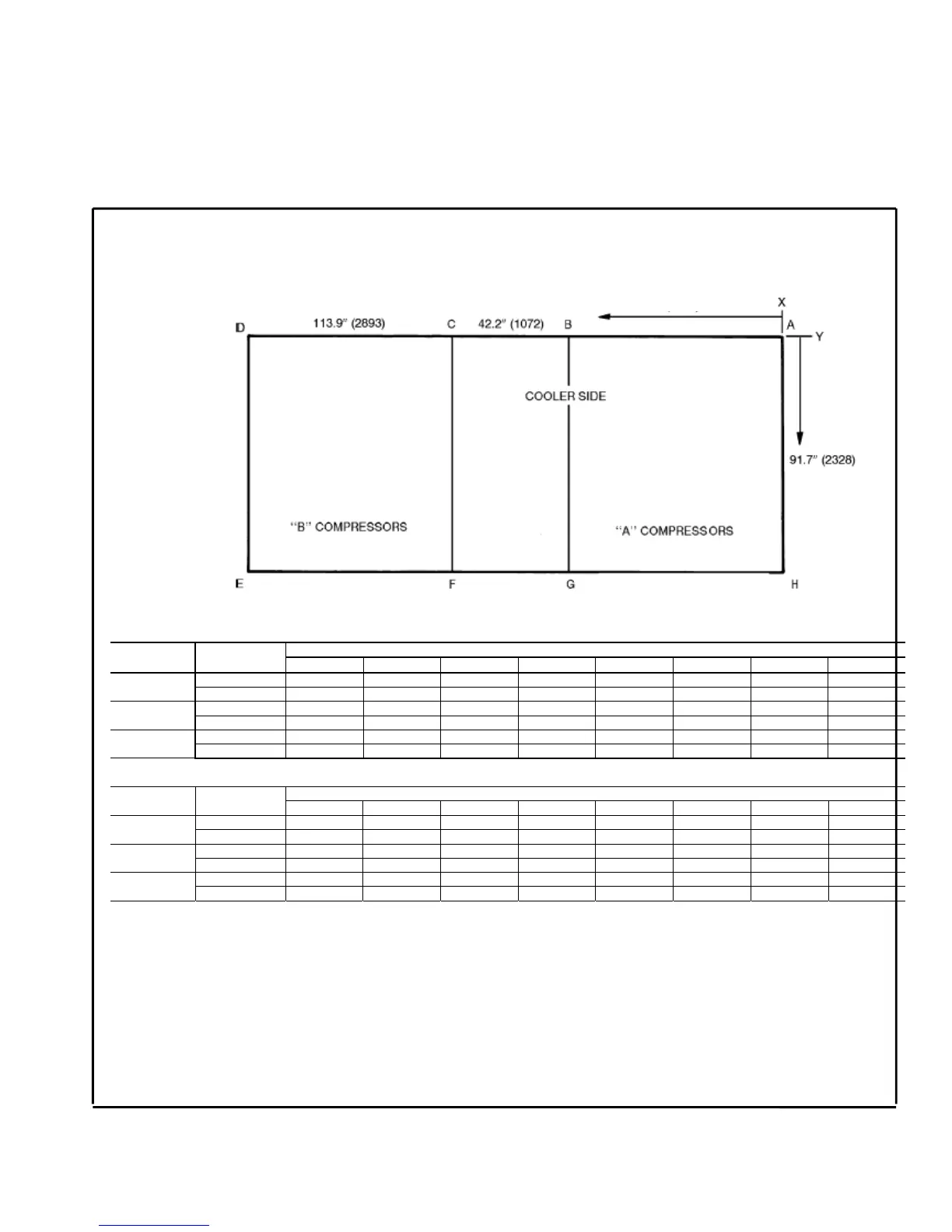

Base unit dimensions —
mounting weights (approximate) (cont)
lb
UNIT SIZE
30GBN,GBR
CONDENSER
COIL
ABCDEFGH
C-AL 1261 2230 2230 1261 1353 2200 2200 1353
150, 300A/B
C-C 1377 2338 2338 1377 1467 2314 2314 1467
C-AL 1261 2230 2250 1350 1675 2275 2200 1353
175, 350A/B
C-C 1377 2338 2360 1467 1788 2380 2314 1467
C-AL 1350 2250 2250 1350 1675 2275 2275 1675
200, 400A/B
C-C 1467 2360 2360 1467 1788 2380 2380 1788
kg
UNIT SIZE
30GBN,GBR
CONDENSER
COIL
ABCDEFGH
C-AL 573 1014 1014 573 615 1000 1000 615
150, 300A/B
C-C 626 1063 1063 626 667 1052 1053 667
C-AL 573 1014 1023 614 761 1034 1000 615
175, 350A/B
C-C 626 1063 1073 667 813 1082 1053 667
C-AL 614 1023 1023 614 761 1034 1034 761
200, 400A/B
C-C 667 1073 1073 667 813 1082 1083 813
LEGEND
C-AL – Copper Tubing, Aluminium Fins
C-C – Copper Tubing, Copper Fins
NOTE: If spring isolators are used, a perimeter support channel between the unit and the isolators is recommended.
